Oil Seal
Manufacturer’s Warranty : 12 months/12,000 miles
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
SKU | NS710143 |
---|---|
Brand | National Bearing® |
Part Name | Manual Transmission Intermediate Shaft Seal |
Part | # 710143 |
UPC | # 00724956234691 |
Quantity Per Vehicle | 1 |
Pack of | 1 |
Condition | New |
Oil Seal

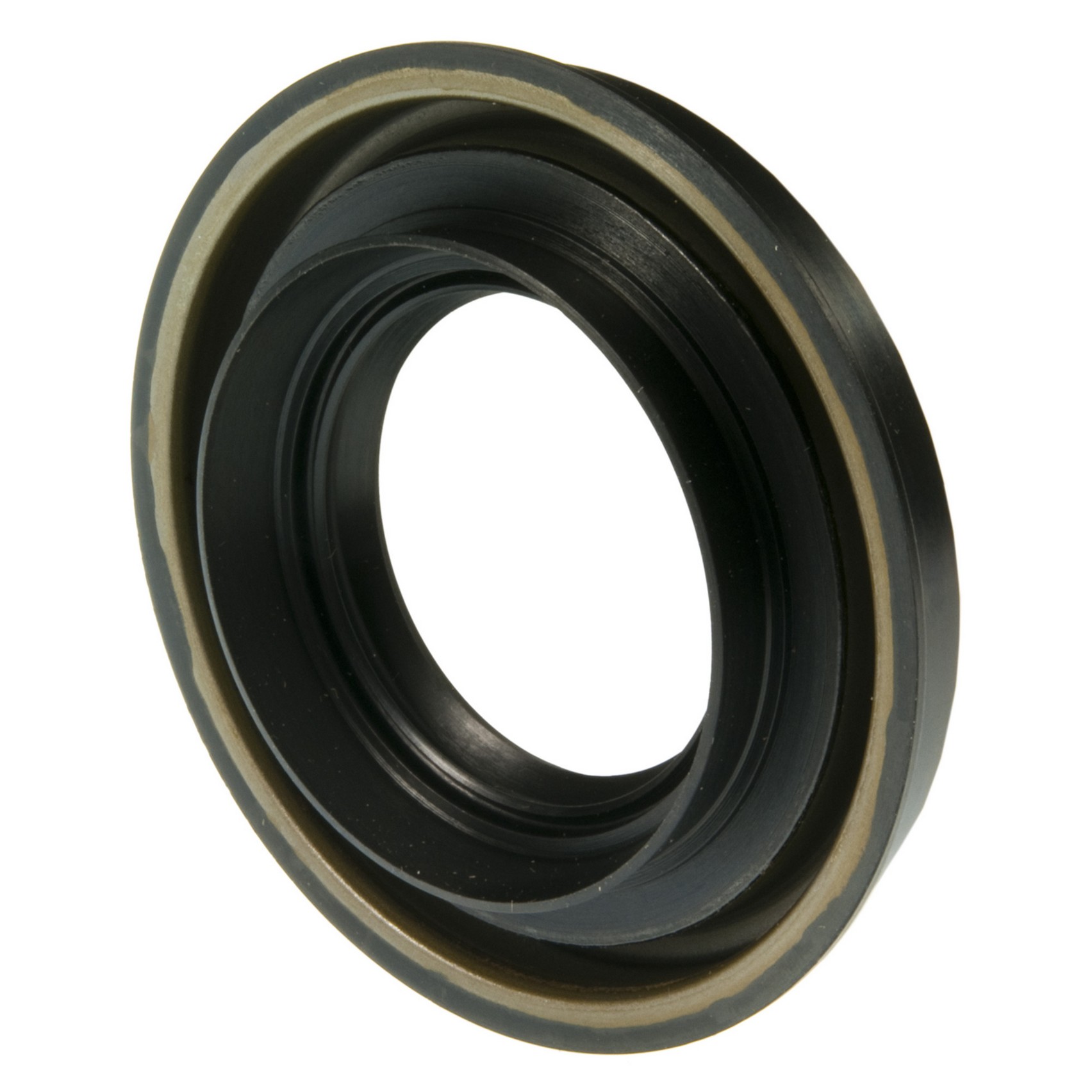

National 710143 Oil Seal
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.

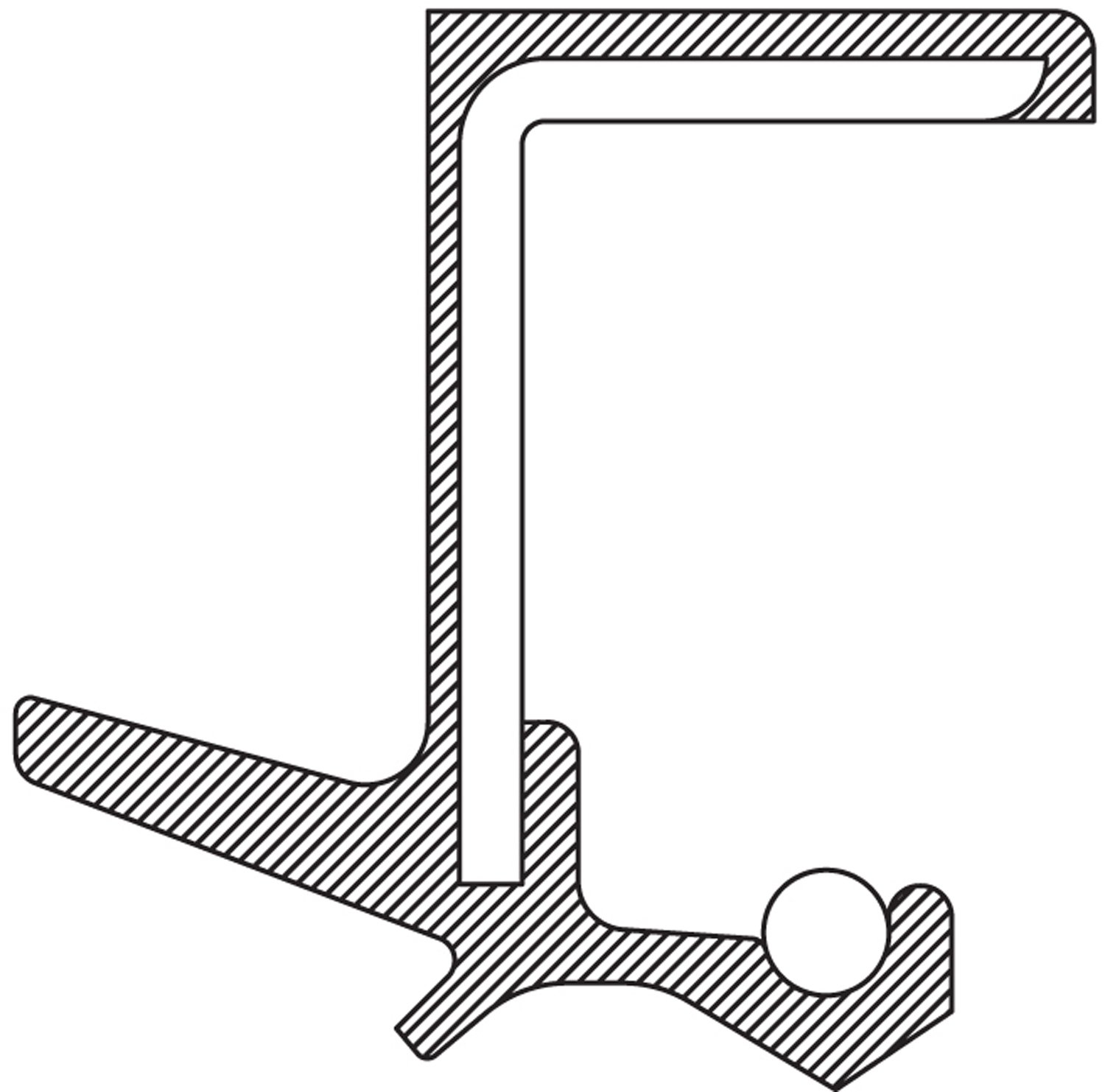

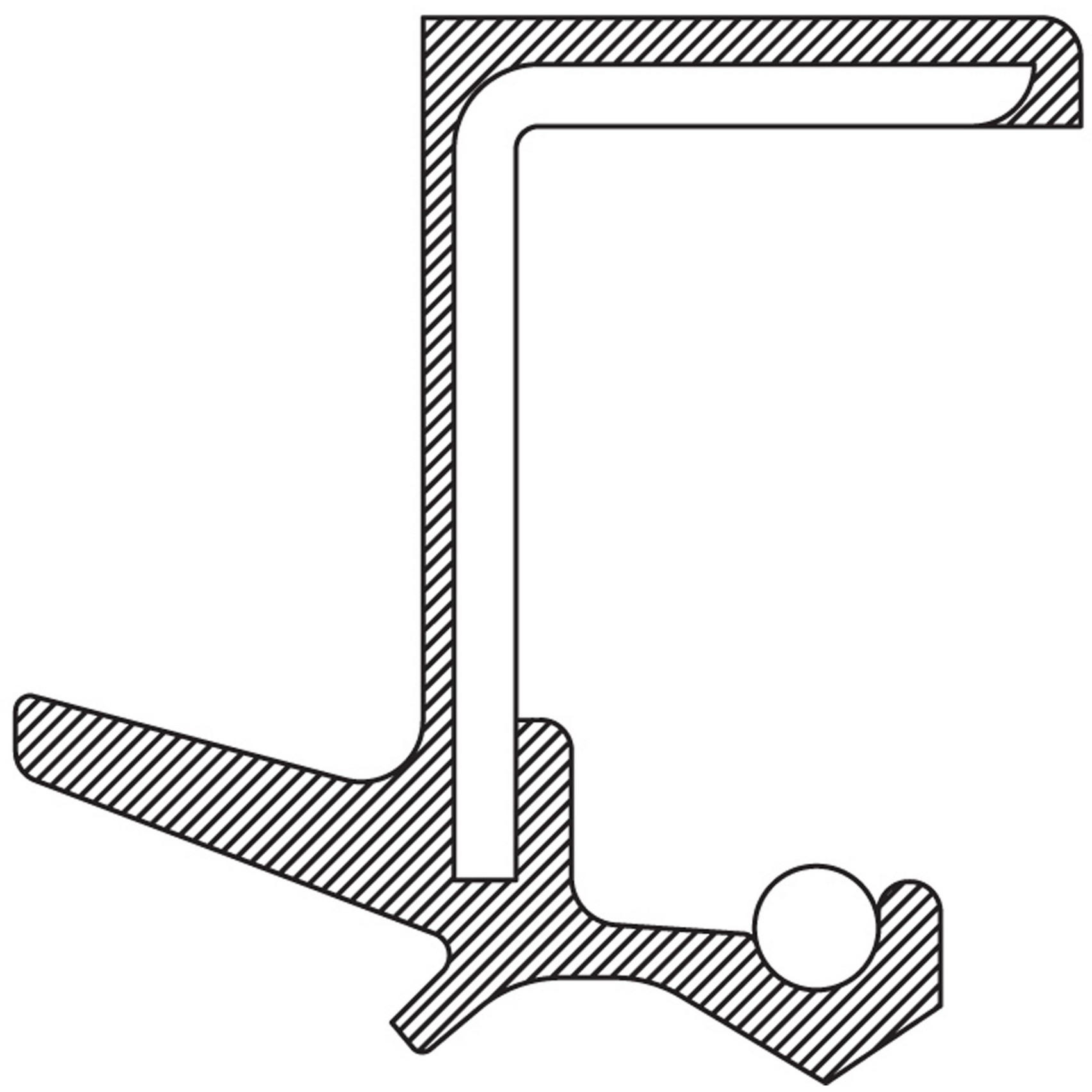

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair
Part Description | - | Oil seal | |
---|---|---|---|
Type | - | 86 | |
Unit of Dimension | - | Metric | |
Material | - | Nitrile | |
Series | - | 710100 | |
Inside Diameter (Describes Measurement) | - | 1.850 | |
Inside Diameter (Describes Measurement) | - | 47.000 | |
Thickness (Describes Measurement) | - | 0.433 | |
Thickness (Describes Measurement) | - | 11.000 | |
Outside Diameter (Describes Measurement) | - | 3.315 | |
Outside Diameter (Describes Measurement) | - | 84.200 | |
Sealing Material (Describes Material) | - | Nitrile | |
Shaft (MM) | - | 47.000 | |
Housing Bore (MM) | - | 84.000 | |
Outside Diameter (mm) | - | 84.200 | |
Flanged Outside Diameter (MM) | - | 91.000 | |
Width (mm) | - | 11.000 | |
Overall Width with Side Lip (MM) | - | 17.500 | |
Shaft (Inch) | - | 1.850 | |
Housing Bore (Inch) | - | 3.307 | |
Outside Diameter (Inch) | - | 3.315 | |
Flanged Outside Diameter (Inch) | - | 3.583 | |
Width (Inch) | - | 0.433 | |
Overall Width with Side Lip (Inch) | - | 0.689 | |
Show All |
1988-1991 Toyota Camry (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual & Drive: 4WD / Qualifier: with Toyota E56F5 Transmission, with Toyota E55F5 Transmission, with Toyota E56F2 Transmission, Full Time 4WD, with Aisin S120 Transfer Case, 47 Shaft, 1 Speed, with Aisin S110 Transfer Case); 1988-1993 Toyota Celica (Rear) (Transmission Base Gear: 5 & Transmission Control Type: Manual & Drive: AWD / Qualifier: Full Time 4WD, with Aisin S100 Transfer Case, 1 Speed, with Toyota E50F2 Transmission, with Toyota E150F Transmission); 1988-1993 Toyota Corolla (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual & Drive: AWD / Qualifier: with Toyota E57F5 Transmission, Full Time 4WD, with Aisin S125 Transfer Case, 47 Shaft, 1 Speed)
