Engine Piston
Manufacturer’s Warranty : 12 months/12,000 miles
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
SKU | SEWH423DCP60 |
---|---|
Brand | Seal Power® |
Part Name | Engine Piston |
Part | # WH423DCP 60 |
UPC | # 00019826510280 |
Quantity Per Vehicle | 8 |
Pack of | 1 |
Condition | New |

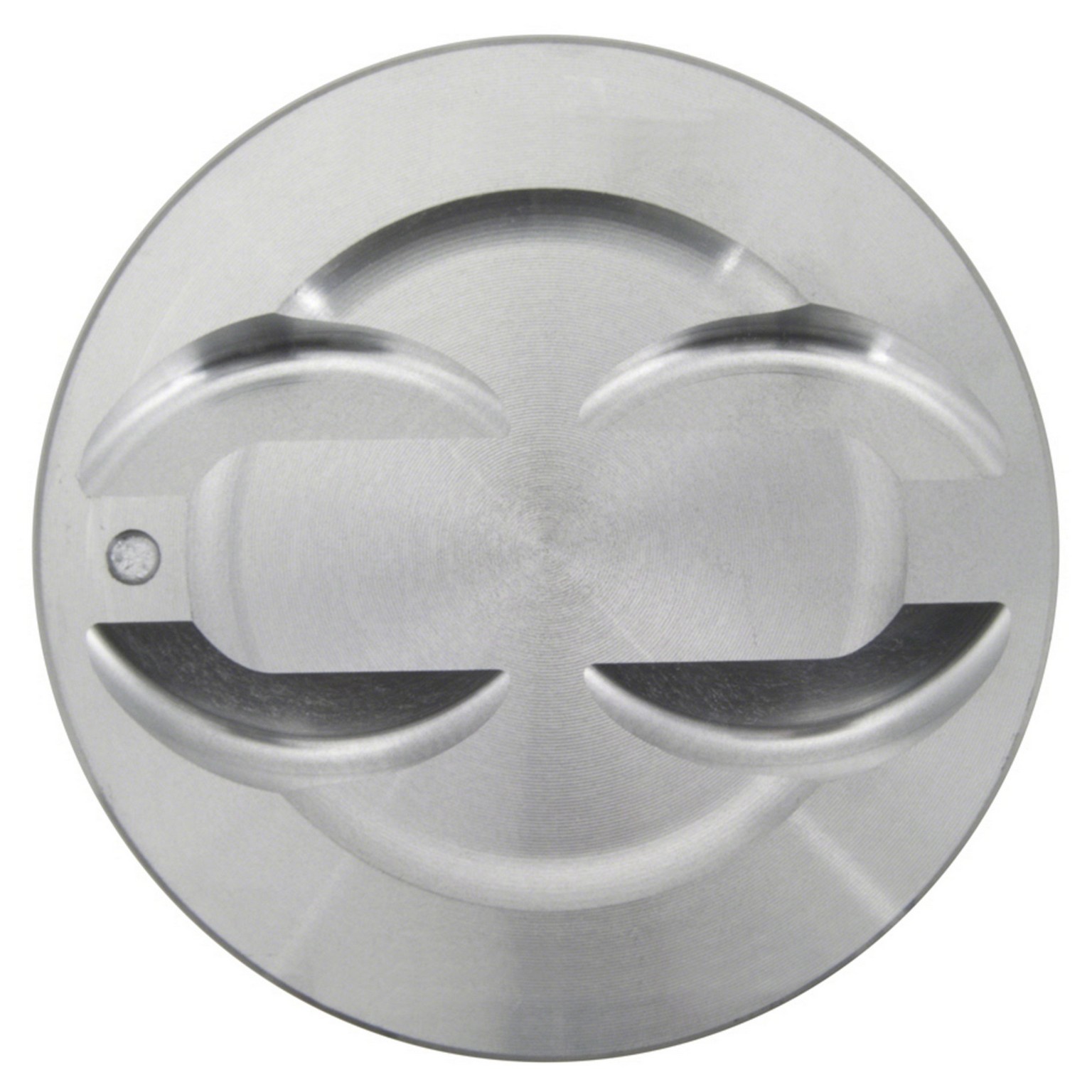

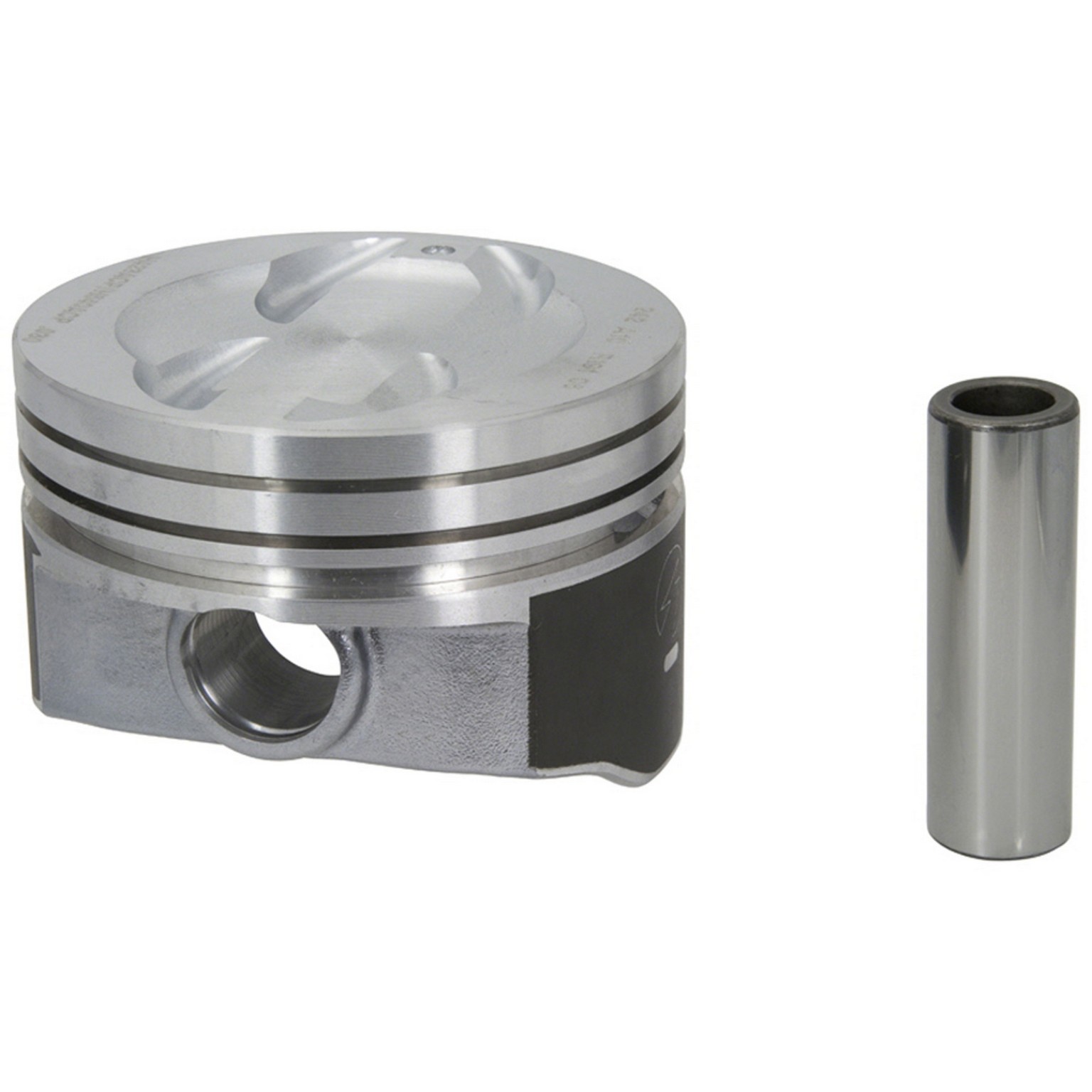

Engine Piston
Sealed Power WH423DCP 60 Cast Piston - Individual
Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of todays modern engines.
Hypereutectic
Made w/exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
Sophisticated barrel profiles help optimize oil wedge between skirt and wall.
Piston skirts protected by next-gen DUROSHIELD® coating.
TAC™ ring groove geometry
Weight matched to +/- 2 grams.
Dome Volume CC | - | Negative 12.3 | |
---|---|---|---|
Note 1 | - | Oversize inch .060 | |
Head Illustration | - | 29 | |
Pin Type | - | F | |
Pin Weight Gram | - | 149 | |
Ring 1 Qty | - | 2 | |
Ring 1 Width | - | 5/64 | |
Ring 2 Qty | - | 1 | |
Oversize Inch | - | 0.060 | |
Ring 2 Width | - | 3/16 | |
Head Type | - | 0.098 dish, 4 reliefs; use w/lock ring lr-63; duroshield~ skirt coated piston | |
Lock Ring | - | Not incl. | |
Bore (Inch) | - | 4.060 | |
Weight W Pin Gram | - | 690 | |
Weight w/o Pin Gram | - | 541 | |
Compression Distance | - | 1.548 | |
Minimum Clearance | - | 0.0010 | |
Pin Diameter (Inch) | - | 0.927 | |
Show All |
1990-1967 GM V8 350CI 5.7L Chevrolet; 1995-1971 GMT L/D V8 350CI 5.7L Chevrolet
