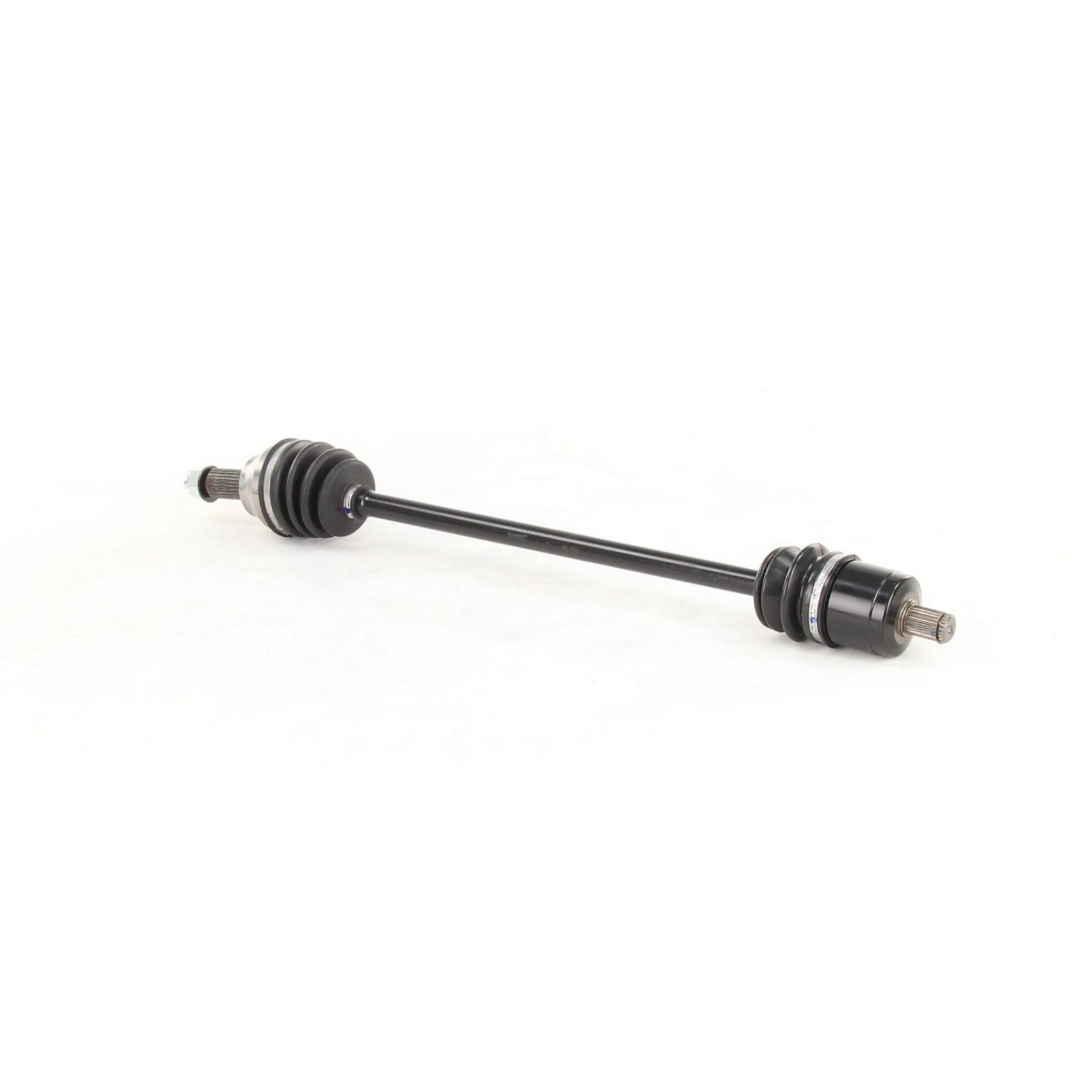

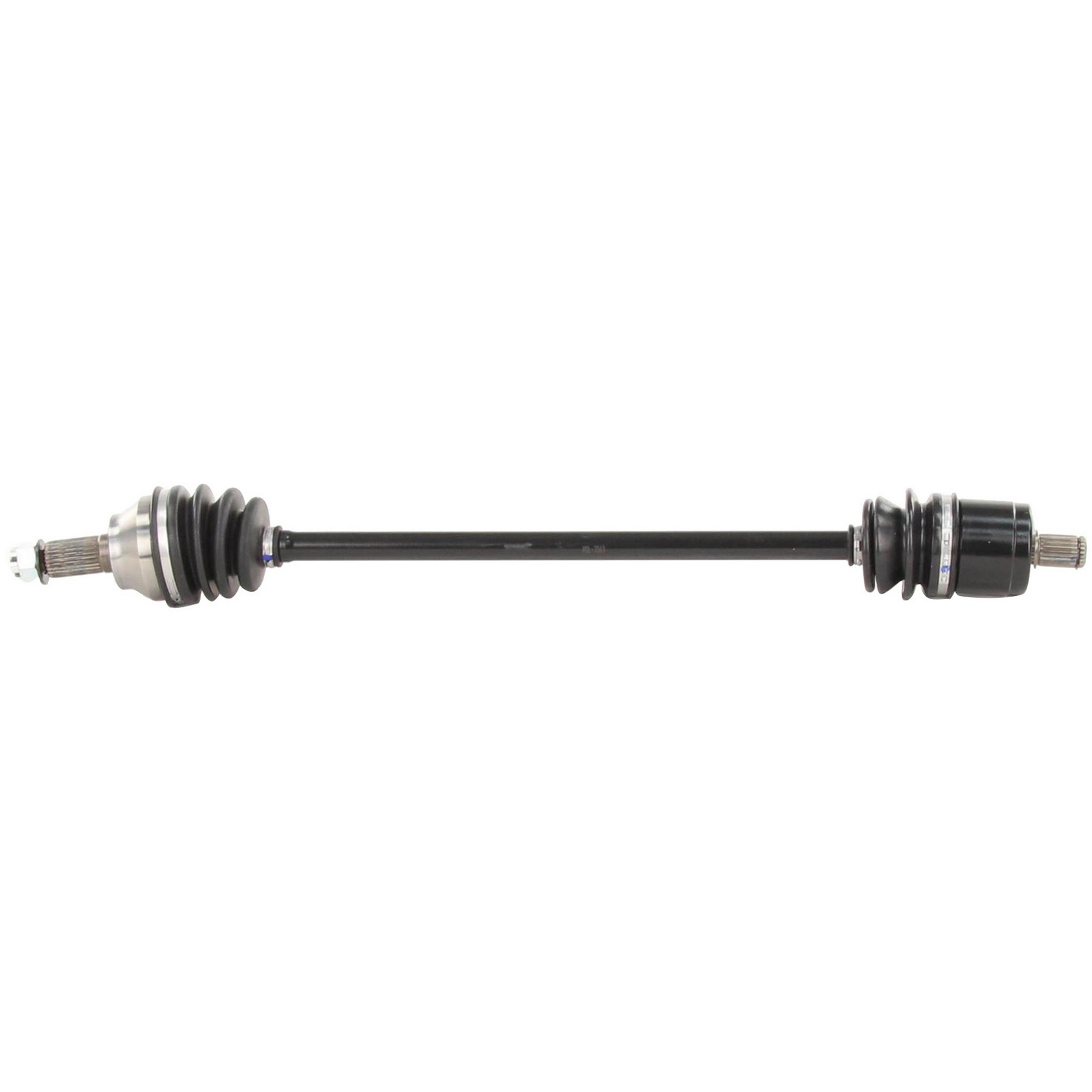

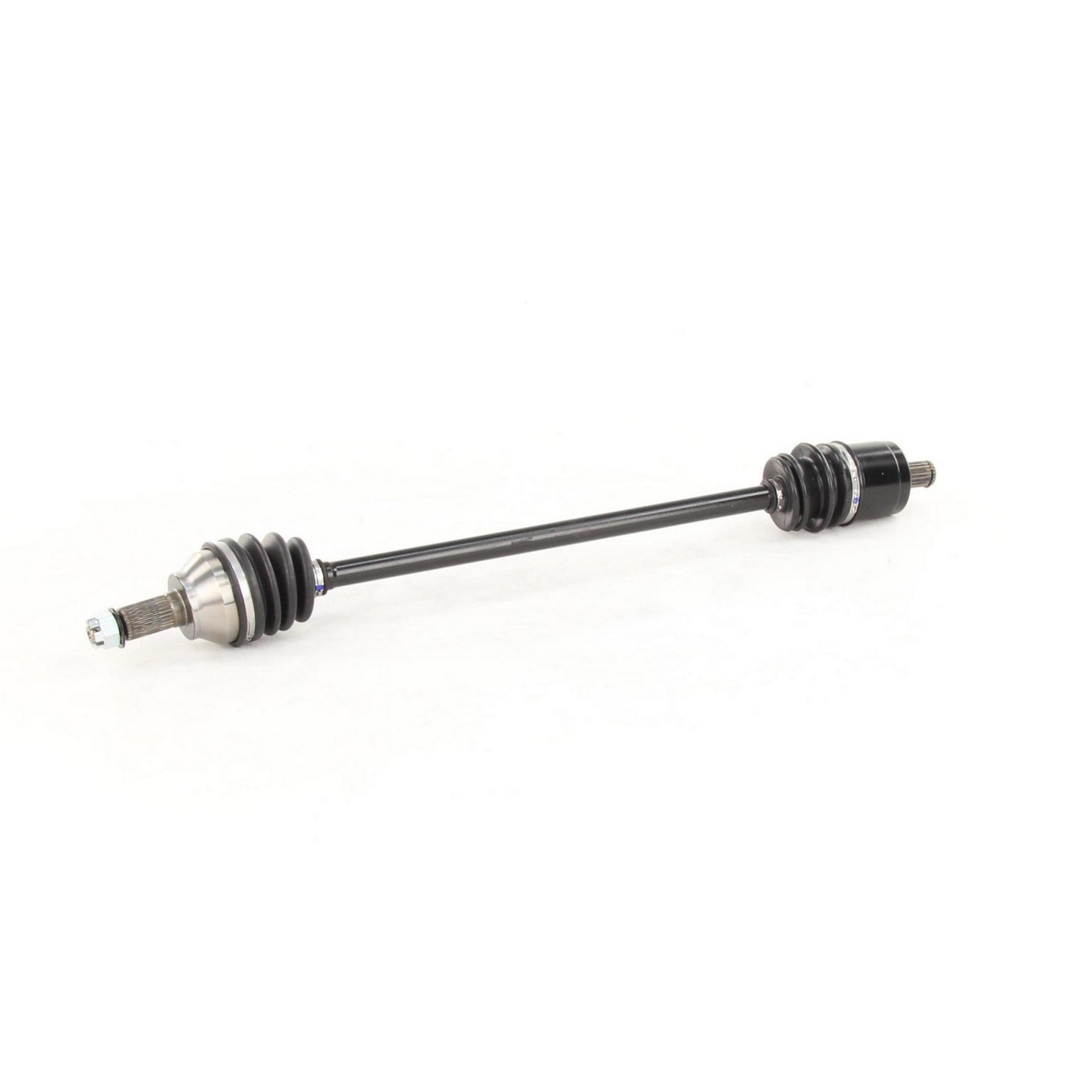

ATV Axle CV Assembly

Manufacturer’s Warranty : 2 Year Limited Warranty

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$82.21 ~~$91.34~~ 10% Off

Only 4 left in stock - order soon.

CV Axle Assembly

ATV Axle CV Assembly

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:1007 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	-	760
Outboard Joint Bolt Thread Size	-	N/a
Outboard Bolt Head Size (mm)	-	N/a
Number Of Outboard Joint Bolt Holes	-	N/a
Number Of Bolt Holes	-	N/a
Inboard Bolt Thread Size	-	N/a
Inboard Bolt Head Size (mm)	-	N/a
Axle Nut Locking Type	-	Stake
Axle Nut Hex Size (mm)	-	27
Axle Nut Head Type	-	Hex
Abs Tone Ring Included	-	No
Overall Compressed Length (in)	-	29.92
Outboard Bolt Length (mm)	-	N/a
Outboard Bolt Head Size (in)	-	N/a
Number Of Inboard Splines	-	22
New Or Remanufactured	-	New
Inboard Bolt Length (mm)	-	N/a
Inboard Bolt Head Size (in)	-	N/a
Axle Nut Length (mm)	-	31.2
Axle Nut Hex Size (in)	-	1
Axle Bolt Thread Size	-	N/a
Abs Ring Type	-	N/a
Outboard Shaft Connection Style	-	Spline
Outboard Bolt Length (in)	-	N/a
Number Of Outboard Splines	-	26
Number Of Inboard Shaft Bolts	-	N/a
Inboard Shaft Connection Style	-	Male
Inboard Bolt Length (in)	-	N/a
Boot Material	-	Neoprene
Axle Nut Length (in)	-	1 2/9
Axle Nut Height (mm)	-	20.5
Axle Bolt Length (mm)	-	N/a
Abs Ring Tooth Count	-	N/a
Outboard Joint Type	-	Conventional
Outboard Bolt Head Type	-	N/a
Number Of Outboard Shaft Bolts	-	N/a
Number Of Inboard Joint Bolt Holes	-	N/a
Inboard Joint Type	-	Male
Inboard Bolt Head Type	-	N/a
Axle Nut Thread Size	-	M18*1.5
Axle Nut Included	-	Yes
Axle Nut Height (in)	-	4/5
Axle Bolt Hex Size (mm)	-	N/a
