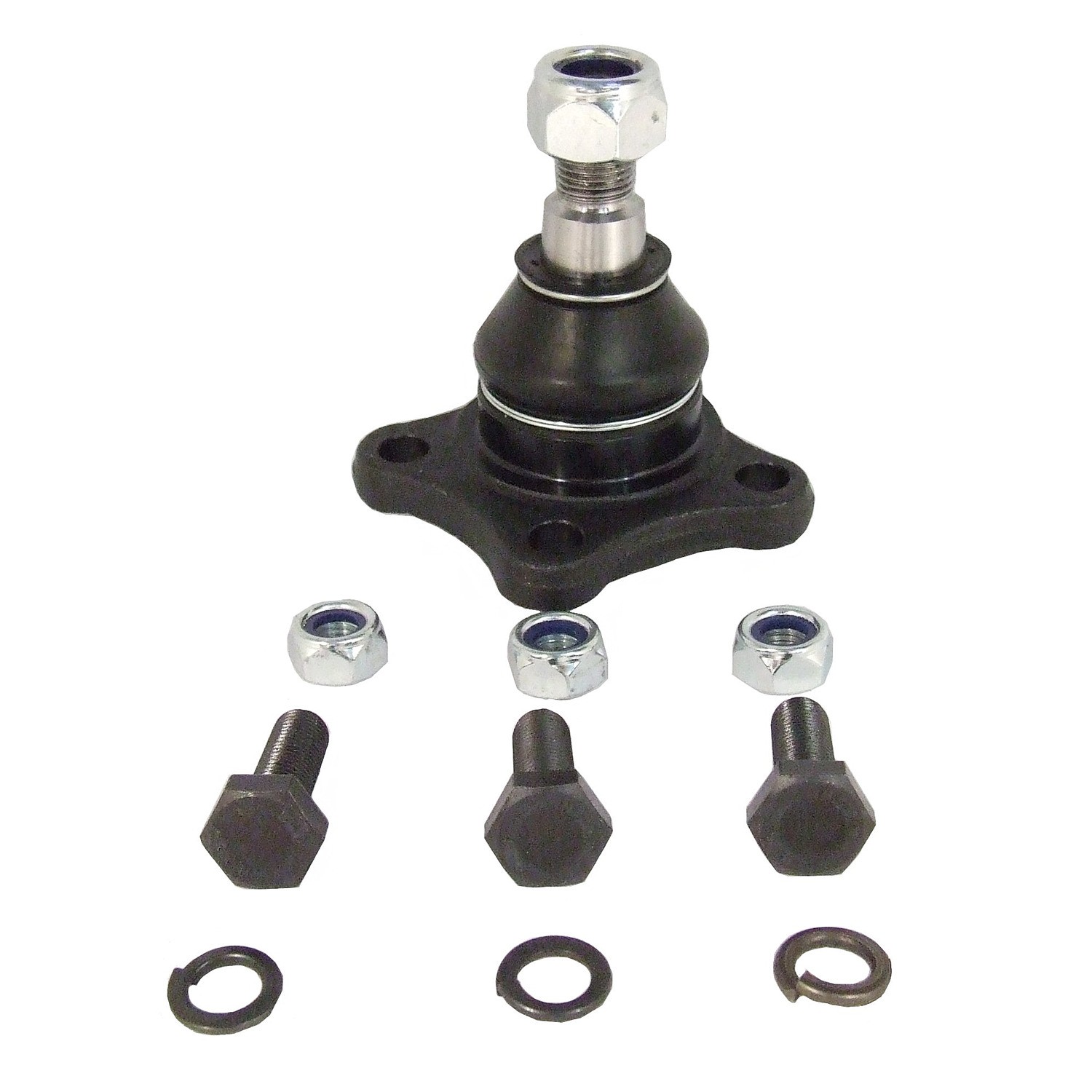

Delphi® TC1714 Suspension Ball Joint

Name: Delphi TC1714 Suspension Ball Joint
Brand: Delphi
SKU: DETC1714
Price: 30.03 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle2008 ford mustang

View Correct Part Change Vehicle

Description

Ball Joint

Manufacturer’s Warranty : 12 Months / 12,000 Miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$30.03 ~~$35.33~~ 15% Off

Only 2 left in stock - order soon.

SKU	DETC1714
Brand	Delphi®
Part Name	Suspension Ball Joint
Part	# TC1714
UPC	# 00689604276617
Quantity Per Vehicle	2
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

Delphi® TC1714 Suspension Ball Joint

Delphis OE safety technology is fitted to millions of vehicles worldwide and we apply Delphis OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphis extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Ball Joint

PRODUCT ATTRIBUTE & INFO

Position(s)	-	Front lower
California Proposition 65	-	Warning: this product can expose you to chemicals including carbon black, which is known to the state of california to cause cancer. for more information go to www.p65warnings.ca.gov.
Material	-	Ball material - alloy steel sae 5140, housing material - carbon steel sae 1040
Maximum Outside Diameter (IN)	-	1.575
Maximum Outside Diameter (MM)	-	40.00
Length (MM)	-	98.00
Length (IN)	-	3.860
Color	-	Gray
Stud Thread Diameter (MM)	-	16
Stud Thread Diameter (IN)	-	0.63
Castle Nut Included	-	No
Grease Fitting Included	-	No
Suspension Grade Type	-	Standard
Bushings Included	-	No
Dust Boot Included	-	Yes
Ball Joint Assembly	-	Yes
Width (MM)	-	86
Cotter Pin Included	-	No
Cotter Pin Hole	-	No
Mounting Hardware Included	-	Yes
Mounting Bolt Length (IN)	-	1.181
Mounting Bolt Length (MM)	-	30.00
Washers Included	-	Yes
Height (IN)	-	3.701
Height (MM)	-	94.01
Nuts Included	-	Yes
Mounting Hole Quantity	-	3
Adjustable	-	No
Greaseable	-	No
Stud Thread Length (IN)	-	0.886
Stud Thread Length (MM)	-	22.5
Wrench Size	-	17mm
Stud Type	-	Threaded
Mounting Type	-	Bolt-in
Dust Boot Material	-	Rubber
Mounting Bolt Shank Diameter (MM)	-	10.00
Mounting Bolt Shank Diameter (IN)	-	0.390
Mounting Bolt Head Diameter (IN)	-	0.748
Mounting Bolt Head Diameter (MM)	-	19.00
Mounting Bolts Included	-	Yes
Mounting Bolt Thread Pitch (MM)	-	1.25
Mounting Bolt Thread Length (MM)	-	28.00
Mounting Bolt Thread Length (IN)	-	1.100
Mount Plate Included	-	No
Tapered Stud	-	Yes
Stud Taper Per Foot (IN)	-	0.125
Stud Tapered End 2 Diameter (IN)	-	0.774
Stud Tapered End 2 Diameter (MM)	-	19.67
Stud Tapered End 1 Diameter (IN)	-	0.878
Stud Tapered End 1 Diameter (MM)	-	22.3
Stud Thread Pitch (MM)	-	1.5
Show All
