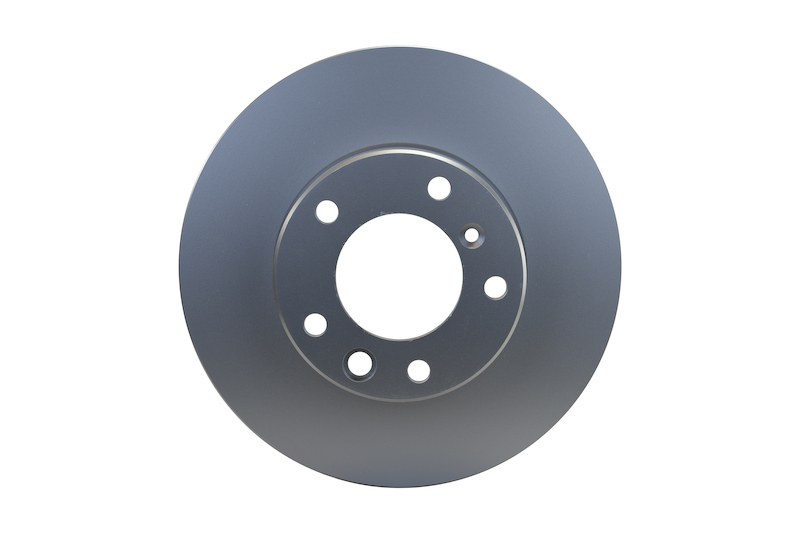

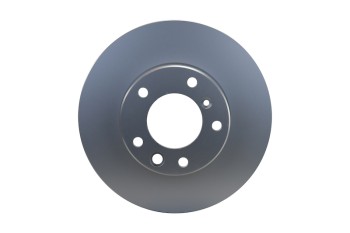

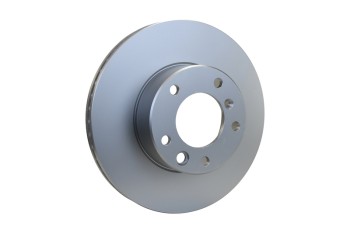

Pagid® 355132152 Disc Brake Rotor
Manufacturer #355132152
Pagid® 355132152 Disc Brake Rotor
Manufacturer #355132152
$128.20
$142.44
Save $14.24 (10%)
(29) In Stock
Get it between Thu, Aug 28 - Mon, Sep 01, 2025
This part does not fit your selected vehicle 1939 Graham Special Model 96
Change vehicle | View Correct PartFree & Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | PA355132152 |
|---|---|
| Brand | Pagid® |
| Part Name | Disc Brake Rotor |
| Part | # 355132152 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Mercedes-benz
- Disc Brake Rotor
- Full range is 100% high carbon (GG15 & GG20)
- Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
- Higher driving comfort with reduced machining tolerances
- Increased carbon content for increased heat conductivity and better mechanical properties
- Less fading and quiet braking
- HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
- Manufactured according to European OE specifications (AM1 & AM2)
- Reduced braking noise
- Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
- Full range is 100% fully coated with premium zinc rust protection
- Fixing screws are always included if required
| Color | Silver |
|---|---|
| Assy./disassy. by qualified personnel required! | . |
| Hole Arrangement/Number | 05/07 |

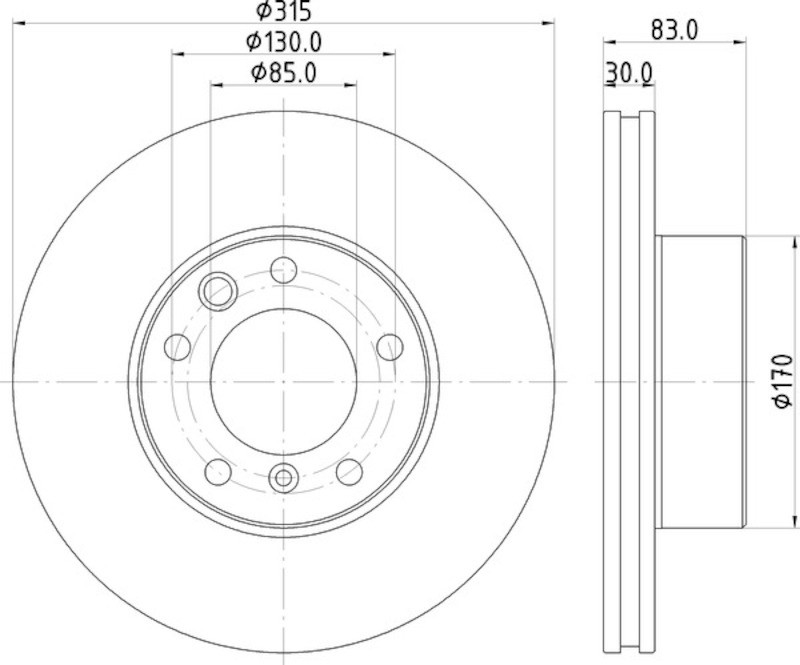

| Brake Disc Thickness [in] | 1.18 |
| Bolt Hole Circle O [in] | 5.12 |
| Wheel Bolt Bore O [in] | 0.59 |
| Center Hole Diameter | 114.3 |
| Minimum thickness [mm] | 27.4 |
| Technical Information Number | 56049pro_hc_na |
| Surface | Coated |
| Supplementary Article/Info 2 | Without wheel studs |
| Height [mm] | 83 |
| Brake Disc Thickness [mm] | 30 |
| Height [in] | 3.27 |
| Wheel Bolt Bore O [mm] | 15 |
| Centering Diameter [in] | 3.35 |
| Inner Diameter [in] | 6.18 |
| Inner diameter [mm] | 157 |
| Outer Diameter [in] | 12.40 |
| Machining | High-carbon |
| Bolt Hole Circle O [mm] | 130 |
| Weight [kg] | 10.9 |
| Centering Diameter [mm] | 85 |
| Supplementary Article/Info 2 | Without wheel hub |
| Brake Disc Type | Internally vented |
| Outer diameter [mm] | 315 |
| Material | Gray cast iron |
| Discard Thickness (MM) | 27.4 |
| Nominal Thickness (MM) | 30.0 |
| Balancing Type | Mill balancing |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Inside Diameter | 85.0 |
| Overall Height (MM) | 83.0 |
| Outside Diameter (MM) | 315.0 |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter (MM) | 130.0 |
| Directional or Non-Directional Brake Surface | Non-directional |
