Monroe® 66653 Suspension Shock Absorber

Product Description

Magnum Shock Absorber

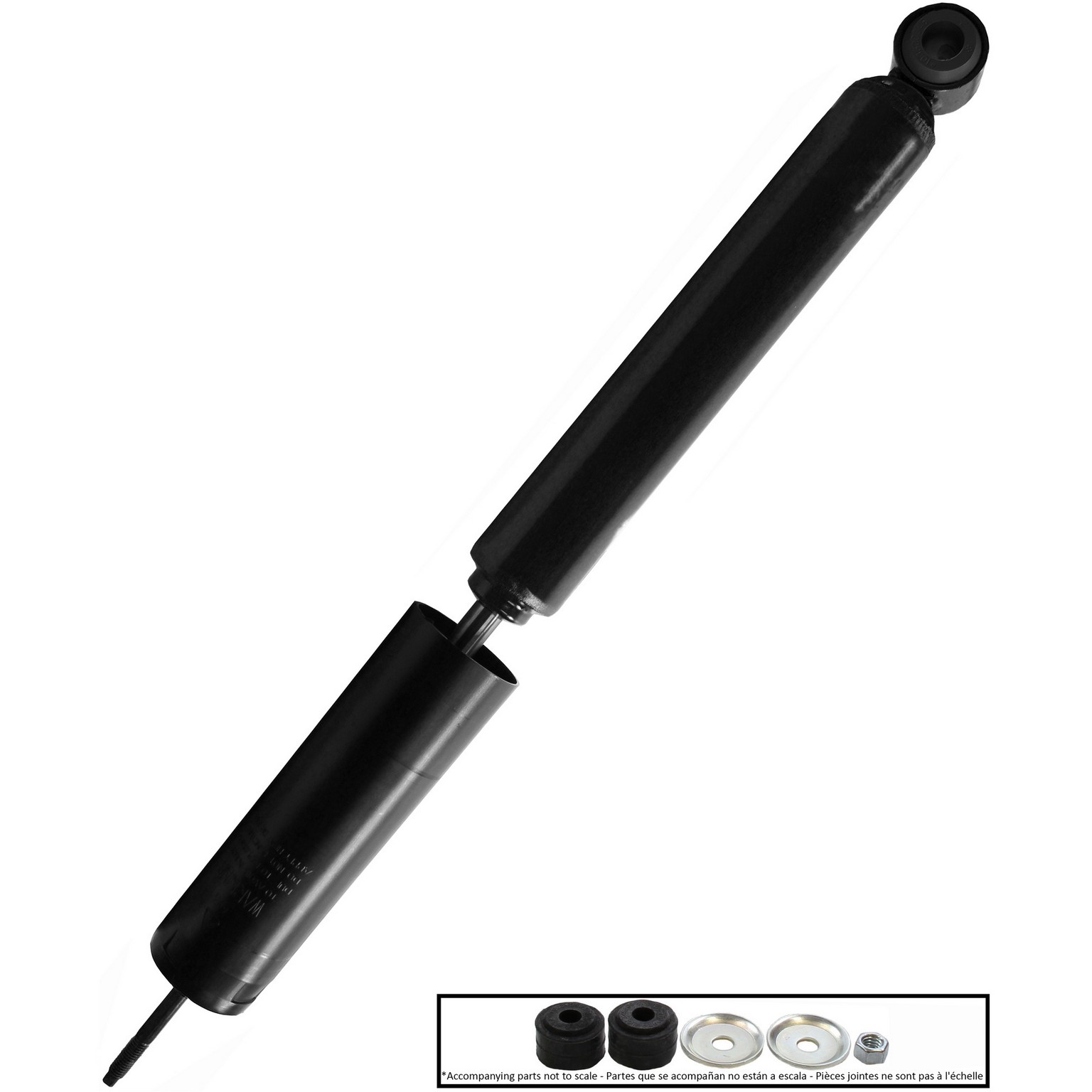

Monroe Shocks & Struts Magnum 66653 Shock Absorber

The Monroe® Magnum™ shock absorber for class 3-6 Vehicles is gas-charged for quicker response and a stable, more comfortable ride. Replacing worn-out units with hard-working Magnum™ shocks can help reduce excessive vibration. The result can be better tire life, less downtime and a lower cost per mile.

Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications

10-stage valving: Reacts to wide range of driving conditions - on most applications

PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications

Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications

Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications

Loop welding technique: Resistance weld with additional 360-degree weld provide up to 13,100 lbs. (6,395 kg) tensile strength for maximum durability - when required

2-inch (50.8 mm) or 2-1/4-inch (57.2 mm) reserve tube: More fluid for more consistent performance - when required

1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications

.05-inch Pressure tube withstanding pressure of 9KPSI

1164 Oil MSDS Sheet English

PRODUCT ATTRIBUTE & INFO

Alternate/OEM Part Number(s)

vehicle fitment summary

2018-1986 Isuzu NPR Front, 2020-1998 Isuzu NPR HD Tilt Cab Front, 2016-1985 Isuzu NPR Tilt Cab Front, 2019-2011,2007-2000 Isuzu NQR Front, 2016-2011,2007-2000 Isuzu NQR Tilt Cab Front, 2019-2005 Isuzu NRR Front
