Magnum Shock Absorber
Manufacturer’s Warranty : 2 Year Limited Warranty
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$36.91 $43.42
15% Off
SKU | TS66618 |
---|---|
Brand | Monroe® |
Part Name | Suspension Shock Absorber |
Part | # 66618 |
UPC | # 00048598074737 |
Quantity Per Vehicle | 2 |
Pack of | 1 |
Condition | New |

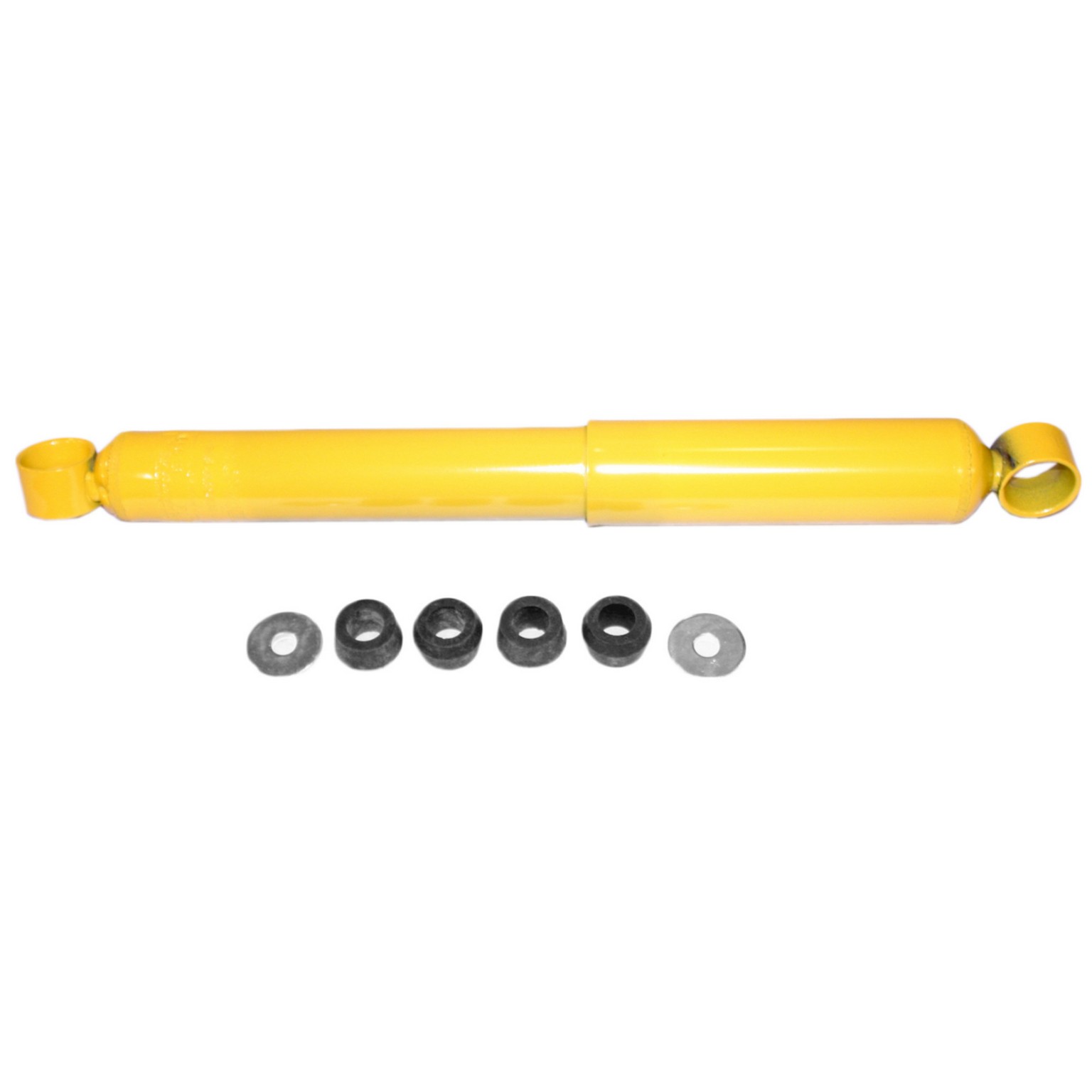

Magnum Shock Absorber
Monroe Shocks & Struts Magnum 66618 Shock Absorber
The Monroe® Magnum™ shock absorber for class 3-6 Vehicles is gas-charged for quicker response and a stable, more comfortable ride. Replacing worn-out units with hard-working Magnum™ shocks can help reduce excessive vibration. The result can be better tire life, less downtime and a lower cost per mile.
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
10-stage valving: Reacts to wide range of driving conditions - on most applications
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld provide up to 13,100 lbs. (6,395 kg) tensile strength for maximum durability - when required
2-inch (50.8 mm) or 2-1/4-inch (57.2 mm) reserve tube: More fluid for more consistent performance - when required
1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
.05-inch Pressure tube withstanding pressure of 9KPSI
1164 Oil MSDS Sheet English
Upper Mounting Code | - | L3 | |
---|---|---|---|
Lower Mounting Code | - | L3 | |
Extended Bumper Stop | - | No | |
Extended Hydraulic Lockout | - | No | |
Parts Pack | - | None | |
Compressed Length (Describes the length of the unit when compressed.) | - | 13.375 | |
Extended Length (Describes the measurement) | - | 21.5 | |
Travel Length (Describes the travel length of the unit) | - | 8.125 | |
Dust Shield (Determines if a dust shield is present or not) | - | Yes | |
Lower Mounting Type | - | Loop bushing mount - 3/4" bushing id x 1.9/16" bushing oal | |
Upper Mounting Type | - | Loop bushing mount - 3/4" bushing id x 1.9/16" bushing oal | |
Compressed Bumper Stop | - | No | |
Show All |
2018-1986 Isuzu NPR Rear, 2020-2008 Isuzu NPR HD Tilt Cab Rear, 2016-1985 Isuzu NPR Tilt Cab Rear, 2019-2000 Isuzu NQR Rear, 2019-2000 Isuzu NQR Tilt Cab Rear, 2019-2005 Isuzu NRR Rear, 2019-2005 Isuzu NRR Tilt Cab Rear
