Magnum Shock Absorber
Manufacturer’s Warranty : 2 Year Limited Warranty
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$60.07 $66.74
10% Off
SKU | TS65167 |
---|---|
Brand | Monroe® |
Part Name | Suspension Shock Absorber |
Part | # 65167 |
UPC | # 00048598026309 |
Quantity Per Vehicle | 2 |
Pack of | 1 |
Condition | New |
Magnum Shock Absorber

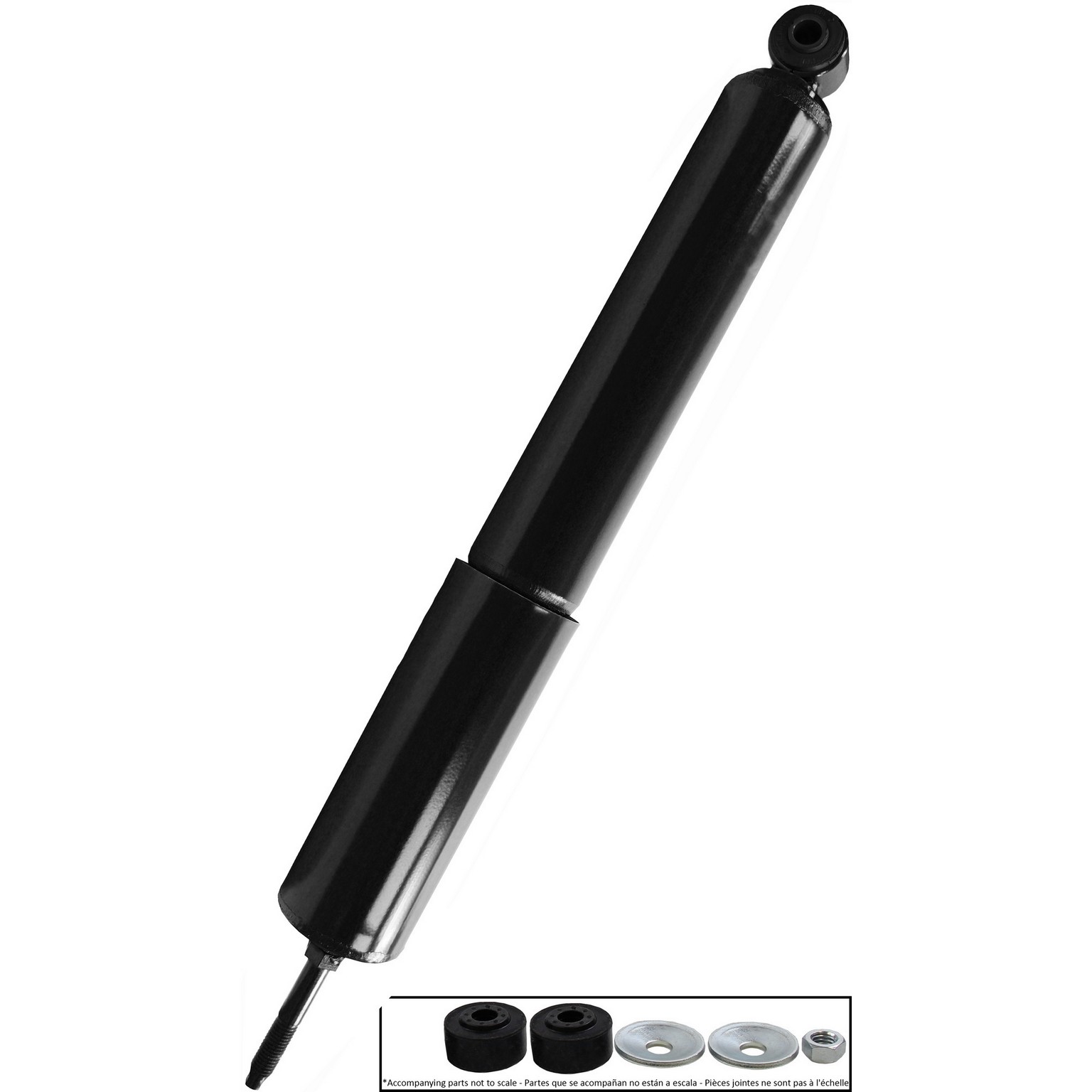

Monroe Shocks & Struts Magnum 65167 Shock Absorber
The Monroe® Magnum™ shock absorber for Class 6-8 Vehicles is the first gas-charged, large-bore shock specifically designed for air spring and taper leaf suspensions. Its nitrogen gas charge provides the fast response essential for todays heavy truck suspension systems. Its extra-large piston bore is engineered to handle the demands of high mileage and severe use. When combined, the gas charge and large-bore provide the consistent control necessary for demanding truck suspensions
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - when required
10-stage valving: Reacts to wide range of driving conditions - on most applications
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld to provide up to 15,000 lbs. (6,804 kg) tensile strength for maximum durability - when required
2-3/8 inch (60.3 mm) reserve tube: More fluid for more consistent performance - on most applications
1-3/4-inch (44.6 mm) bore: Large bore than most shocks to provide more consistent control
.05-inch Pressure tube withstanding pressure of 9KPSI
1164 Oil MSDS Sheet English
Upper Mounting Code | - | S5 | |
---|---|---|---|
Lower Mounting Code | - | Ls47 | |
Extended Bumper Stop | - | No | |
Extended Hydraulic Lockout | - | No | |
Parts Pack | - | P01167 | |
Compressed Length (Describes the length of the unit when compressed.) | - | 13.375 | |
Extended Length (Describes the measurement) | - | 20.875 | |
Travel Length (Describes the travel length of the unit) | - | 7.5 | |
Dust Shield (Determines if a dust shield is present or not) | - | Yes | |
Lower Mounting Type | - | Loop bushing & sleeve mount - 9/16" sleeve id x 1.5/8" sleeve oal | |
Upper Mounting Type | - | Stem mount - 2.5/8" stem length x 1/2"-13 thread pitch | |
Compressed Bumper Stop | - | No | |
Show All |
2019-2005 Ford Pickup - F450 Series Super Duty Front, 2019-2005 Ford Pickup - F550 Series Super Duty Front
