Description

LuK DMF Manu

Manufacturer’s Warranty : 12 months/12,000 miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$420.02 ~~$451.63~~ 7% Off

SKU	LKDMF123
Brand	LUK®
Part Name	Clutch Flywheel
Part	# DMF123
UPC	# 00670774250804
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

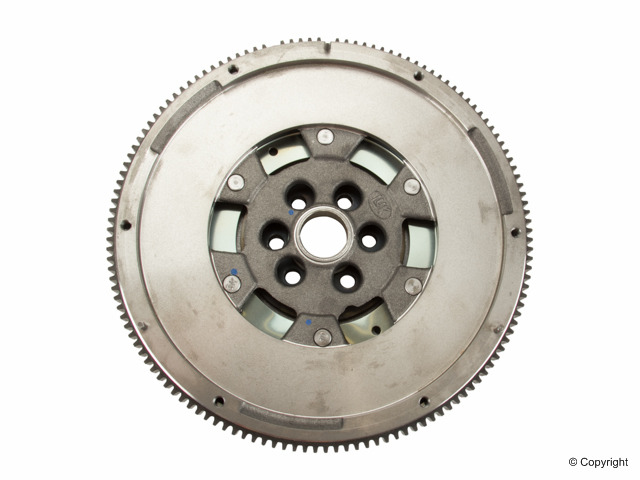

LUK® DMF123 Clutch Flywheel

LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.

PRODUCT ATTRIBUTE & INFO

Cup depth, secondary flywheel (inch)	-	-0.315
Cup depth, secondary flywheel (mm)	-	-8
Ring Gear To Friction Surface (inch)	-	0.6299
Ring Gear To Friction Surface (mm)	-	16
Crank To Friction Surface (inch)	-	1.5827
Crank To Friction Surface (mm)	-	40.2
Ring Gear Thickness (inch)	-	0.5906
Ring Gear Thickness (mm)	-	15
Dowel Hole Pattern	-	5
I.D. for Pilot (inch)	-	1.2598
I.D. for Pilot (mm)	-	32
Number of teeth, starter ring gear	-	135
Ring Gear Number	-	L-08180-0g99-06
Overall Casting O.D. (inch)	-	11.3386
Overall Casting O.D. (mm)	-	288
Dowel hole diameter (inch)	-	0.1969
Dowel hole diameter (mm)	-	5
Bolt hole PCD crankshaft (inch)	-	2.5984
Bolt hole PCD crankshaft (mm)	-	66
Bolt hole PCD clutch pres.plte (inch)	-	10.1575
Bolt hole PCD clutch pres.plte (mm)	-	258
Flywheel friction surface outer diameter (inch)	-	9.4488
Flywheel friction surface outer diameter (mm)	-	240
Torque Capacity DMFW (inch)	-	15.9213
Torque Capacity DMFW (mm)	-	404.4
Flywheel Thickness [mm] (inch)	-	2.8898
Flywheel Thickness [mm] (mm)	-	73.4
Bolt Hole Pattern	-	2
Ring Gear Mounting O.D. (inch)	-	10.2205
Ring Gear Mounting O.D. (mm)	-	259.6
Flywheel Friction Surface Inner diameter (inch)	-	6.1024
Flywheel Friction Surface Inner diameter (mm)	-	155
Crank Hole Dia. (inch)	-	0.4016
Crank Hole Dia. (mm)	-	10.2
Centering diameter / dowel hole (inch)	-	10.315
Centering diameter / dowel hole (mm)	-	262
Ring Gear Major Dia. (inch)	-	11.3924
Ring Gear Major Dia. (mm)	-	289.366
