Description

LuK DMF Manu

Manufacturer’s Warranty : 12 months/12,000 miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$309.11 ~~$335.99~~ 8% Off

SKU	LKDMF098
Brand	LUK®
Part Name	Clutch Flywheel
Part	# DMF098
UPC	# 00670774201431
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

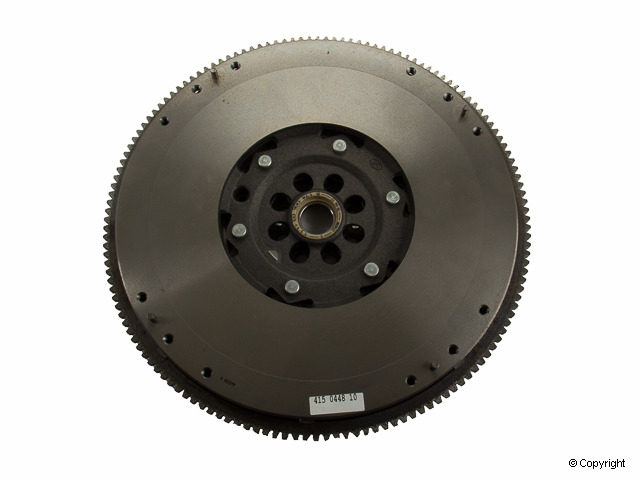

LUK® DMF098 Clutch Flywheel

LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.

PRODUCT ATTRIBUTE & INFO

Number of teeth, starter ring gear	-	144
Ring Gear Thickness (inch)	-	0.3937
Ring Gear Thickness (mm)	-	10
Torque Capacity DMFW (inch)	-	18.2283
Torque Capacity DMFW (mm)	-	463
Bolt Hole Pattern	-	9
I.D. for Pilot (inch)	-	1.0394
I.D. for Pilot (mm)	-	26.4
Flywheel friction surface outer diameter (inch)	-	10.6299
Flywheel friction surface outer diameter (mm)	-	270
Bolt hole PCD crankshaft (inch)	-	2.5984
Bolt hole PCD crankshaft (mm)	-	66
Centering diameter / dowel hole (inch)	-	12.5984
Centering diameter / dowel hole (mm)	-	320
Ring Gear Number	-	L-09180-0185-00
Flywheel Friction Surface Inner diameter (inch)	-	6.6929
Flywheel Friction Surface Inner diameter (mm)	-	170
Flywheel Thickness [mm] (inch)	-	2.4488
Flywheel Thickness [mm] (mm)	-	62.2
Ring Gear Major Dia. (inch)	-	14.3996
Ring Gear Major Dia. (mm)	-	365.75
Dowel hole diameter (inch)	-	0.1181
Dowel hole diameter (mm)	-	3
Cup depth, secondary flywheel (inch)	-	0.3307
Cup depth, secondary flywheel (mm)	-	8.4
Ring Gear Mounting O.D. (inch)	-	13.3937
Ring Gear Mounting O.D. (mm)	-	340.2
Bolt hole PCD clutch pres.plte (inch)	-	12.5984
Bolt hole PCD clutch pres.plte (mm)	-	320
Crank To Friction Surface (inch)	-	1.8504
Crank To Friction Surface (mm)	-	47
Ring Gear To Friction Surface (inch)	-	1.2008
Ring Gear To Friction Surface (mm)	-	30.5
Dowel Hole Pattern	-	7
Overall Casting O.D. (inch)	-	14.7008
Overall Casting O.D. (mm)	-	373.4
Crank Hole Dia. (inch)	-	0.4016
Crank Hole Dia. (mm)	-	10.2
