Description

LuK DMF Manu

Manufacturer’s Warranty : 12 months/12,000 miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$346.01 ~~$376.10~~ 8% Off

Only 3 left in stock - order soon.

SKU	LKDMF057
Brand	LUK®
Part Name	Clutch Flywheel
Part	# DMF057
UPC	# 00670774097744
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

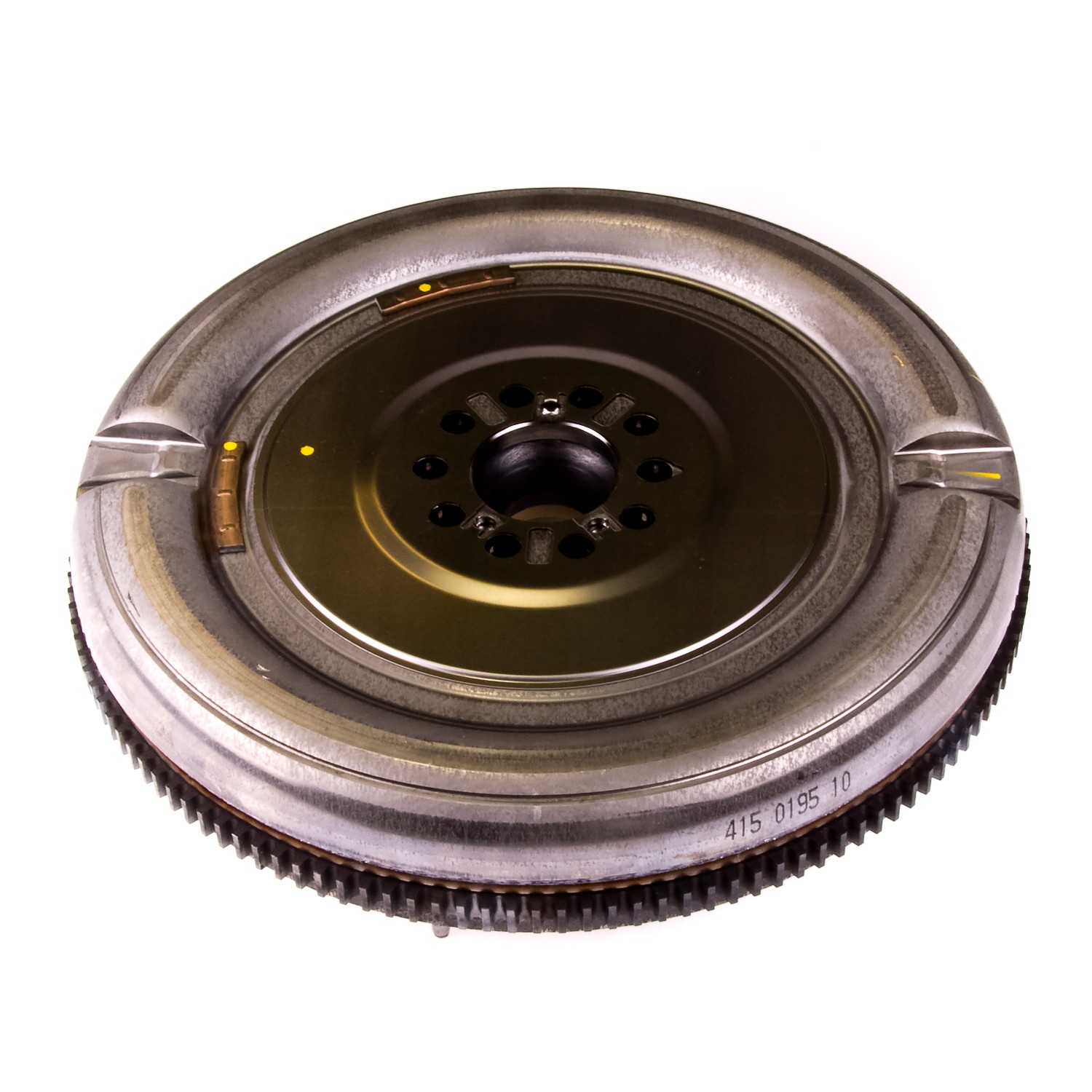

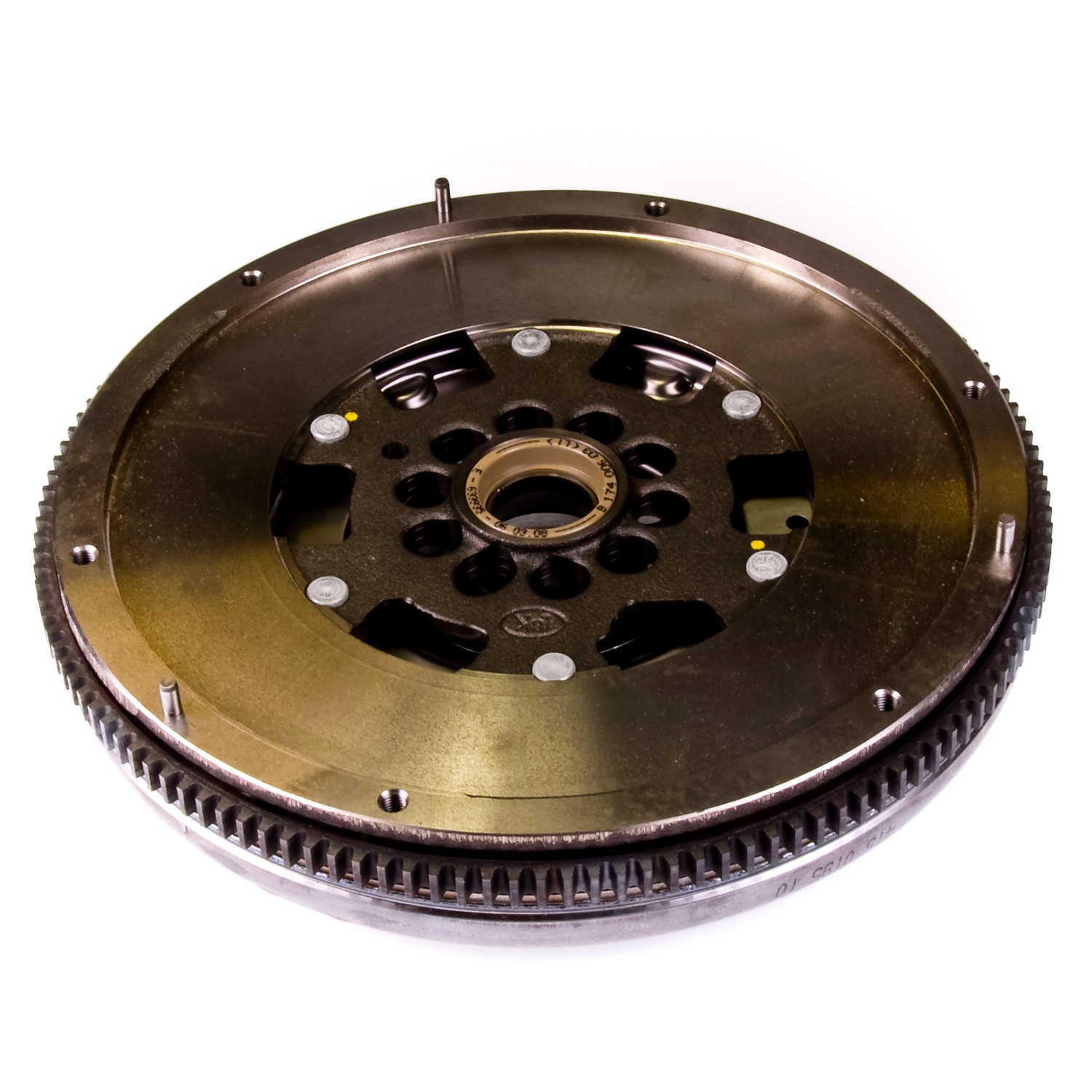

LUK® DMF057 Clutch Flywheel

LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.

PRODUCT ATTRIBUTE & INFO

Flywheel Friction Surface Inner diameter (inch)	-	6.063
Flywheel Friction Surface Inner diameter (mm)	-	154
Dowel hole diameter (inch)	-	0.1969
Dowel hole diameter (mm)	-	5
Cup depth, secondary flywheel (inch)	-	-0.2362
Cup depth, secondary flywheel (mm)	-	-6
Ring Gear Major Dia. (inch)	-	11.3924
Ring Gear Major Dia. (mm)	-	289.366
Ring Gear To Friction Surface (inch)	-	0.5118
Ring Gear To Friction Surface (mm)	-	13
Ring Gear Number	-	L-09180-0048-01
Flywheel Thickness [mm] (inch)	-	2.5039
Flywheel Thickness [mm] (mm)	-	63.6
Crank To Friction Surface (inch)	-	1.437
Crank To Friction Surface (mm)	-	36.5
Bolt Hole Pattern	-	2
Dowel Hole Pattern	-	2
Number of teeth, starter ring gear	-	135
Bolt hole PCD clutch pres.plte (inch)	-	10.1575
Bolt hole PCD clutch pres.plte (mm)	-	258
I.D. for Pilot (inch)	-	1.0866
I.D. for Pilot (mm)	-	27.6
Centering diameter / dowel hole (inch)	-	10.315
Centering diameter / dowel hole (mm)	-	262
Overall Casting O.D. (inch)	-	11.3386
Overall Casting O.D. (mm)	-	288
Ring Gear Thickness (inch)	-	0.3937
Ring Gear Thickness (mm)	-	10
Torque Capacity DMFW (inch)	-	16.7323
Torque Capacity DMFW (mm)	-	425
Flywheel friction surface outer diameter (inch)	-	9.4882
Flywheel friction surface outer diameter (mm)	-	241
Bolt hole PCD crankshaft (inch)	-	2.6772
Bolt hole PCD crankshaft (mm)	-	68
Ring Gear Mounting O.D. (inch)	-	10.4272
Ring Gear Mounting O.D. (mm)	-	264.85
Crank Hole Dia. (inch)	-	0.4134
Crank Hole Dia. (mm)	-	10.5
