Engine Connecting Rod Bearing
Manufacturer’s Warranty : 12 months/12,000 miles
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$7.98 $9.39
15% Off
Only 8 left in stock - order soon.
SKU | SE3545A25MM |
---|---|
Brand | Seal Power® |
Part Name | Engine Connecting Rod Bearing |
Part | # 3545A .25MM |
UPC | # 00614046221109 |
Quantity Per Vehicle | 4 |
Pack of | 1 |
Condition | New |
Engine Connecting Rod Bearing

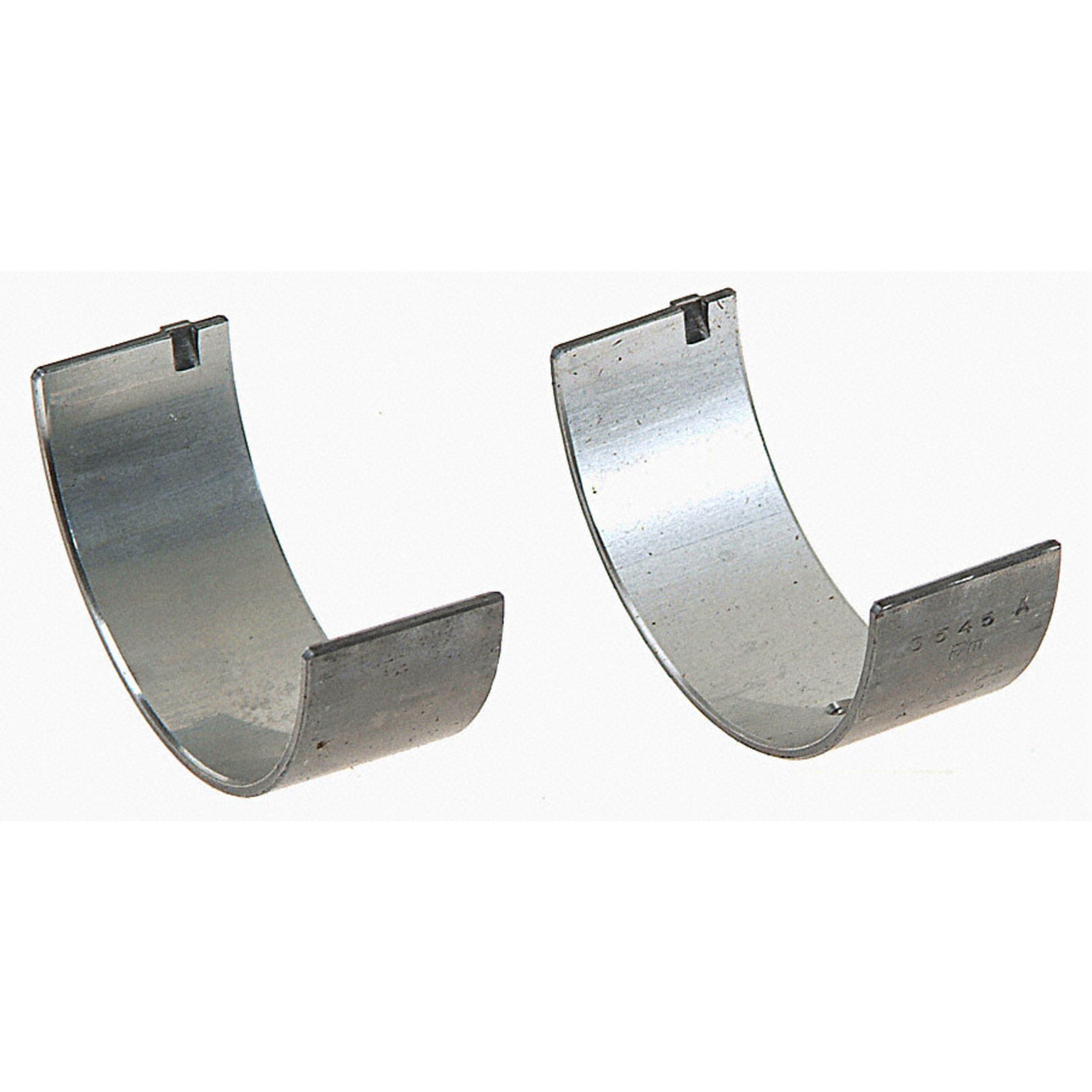

Sealed Power 3545A .25MM Connecting Rod Bearing Pair
Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of todays modern engines.
A-Series bi-metal aluminum alloy
Greater seizure resistance than tri-metal material
Dramatically reduces or eliminates bearing wear
Made with silicon to provide greater surface hardness
Silicon particles help polish crankshaft journal to further reduce wear during operation
Utilizes ISO & QS certified manufacturing
Sealed Power® A-Series® Engine Bearings
Design Feature 1 | - | Undersize mm .25 | |
---|---|---|---|
Design Feature 2 | - | Pair | |
Housing Bore Max (Inch) | - | 2.1728 | |
Housing Bore Min (Inch) | - | 2.1720 | |
Oil Clearance Max (Inch) | - | 0.0026 | |
Oil Clearance Min (Inch) | - | 0.0005 | |
Overall Length Max (Inch) | - | 0.8000 | |
Standard Shaft Max (Inch) | - | 2.0472 | |
Standard Shaft Min (Inch) | - | 2.0465 | |
Wall Thickness Max (Inch) | - | 0.0624 | |
Housing Bore Max (MM) | - | 55.1890 | |
Housing Bore Min (MM) | - | 55.1690 | |
Oil Clearance Max (MM) | - | 0.0660 | |
Oil Clearance Min (MM) | - | 0.0130 | |
Overall Length Max (MM) | - | 20.3200 | |
Standard Shaft Max (MM) | - | 51.9990 | |
Standard Shaft Min (MM) | - | 51.9810 | |
Wall thickness Max (MM) | - | 1.5850 | |
Show All |
1988-1983 FOT L/D L4 122CI 2.0L SOHC; 1990 ARO L/D L4 140CI 2.3L SOHC; 1993-1974 FO L4 140CI 2.3L SOHC; 1997-1977 FOT L/D L4 140CI 2.3L SOHC; 1997-1994 MZT L/D L4 140CI 2.3L SOHC; More - See Printed Buyers Guide
