Arnott® AS-3363 Air Suspension Strut

Name: Arnott AS-3363 Air Suspension Strut
Brand: Arnott
SKU: AIAS3363
Price: 665.18 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle1927 nash standard

View Correct Part Change Vehicle

Description

New Air Suspension Strut

Manufacturer’s Warranty : Limited Lifetime.

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$665.18 ~~$715.25~~ 7% Off

Only 3 left in stock - order soon.

SKU	AIAS3363
Brand	Arnott®
Part Name	Air Suspension Strut
Part	# AS-3363
UPC	# 00815710019309
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

Arnott® AS-3363 Air Suspension Strut

Suspension Strut Assembly

New custom-valved shock absorber

Multi-ply Continental ContiTech air spring sleeve

Pre-assembled for easy installation

Designed & assembled in the USA

Replace in Pairs

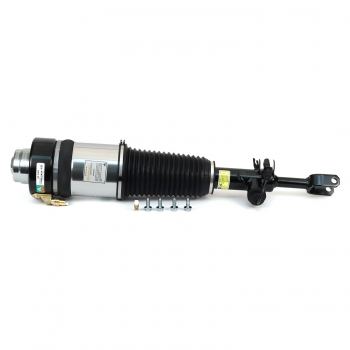

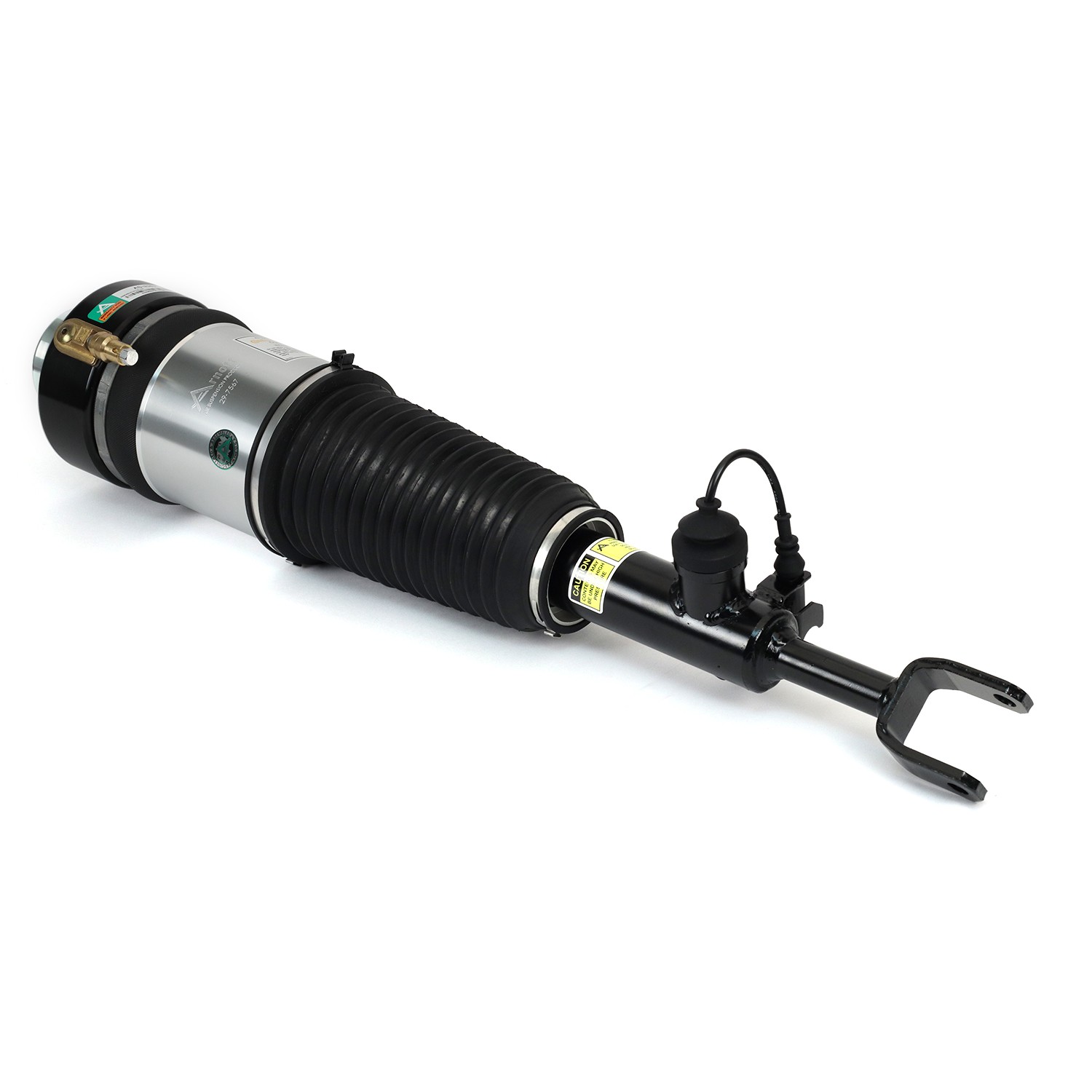

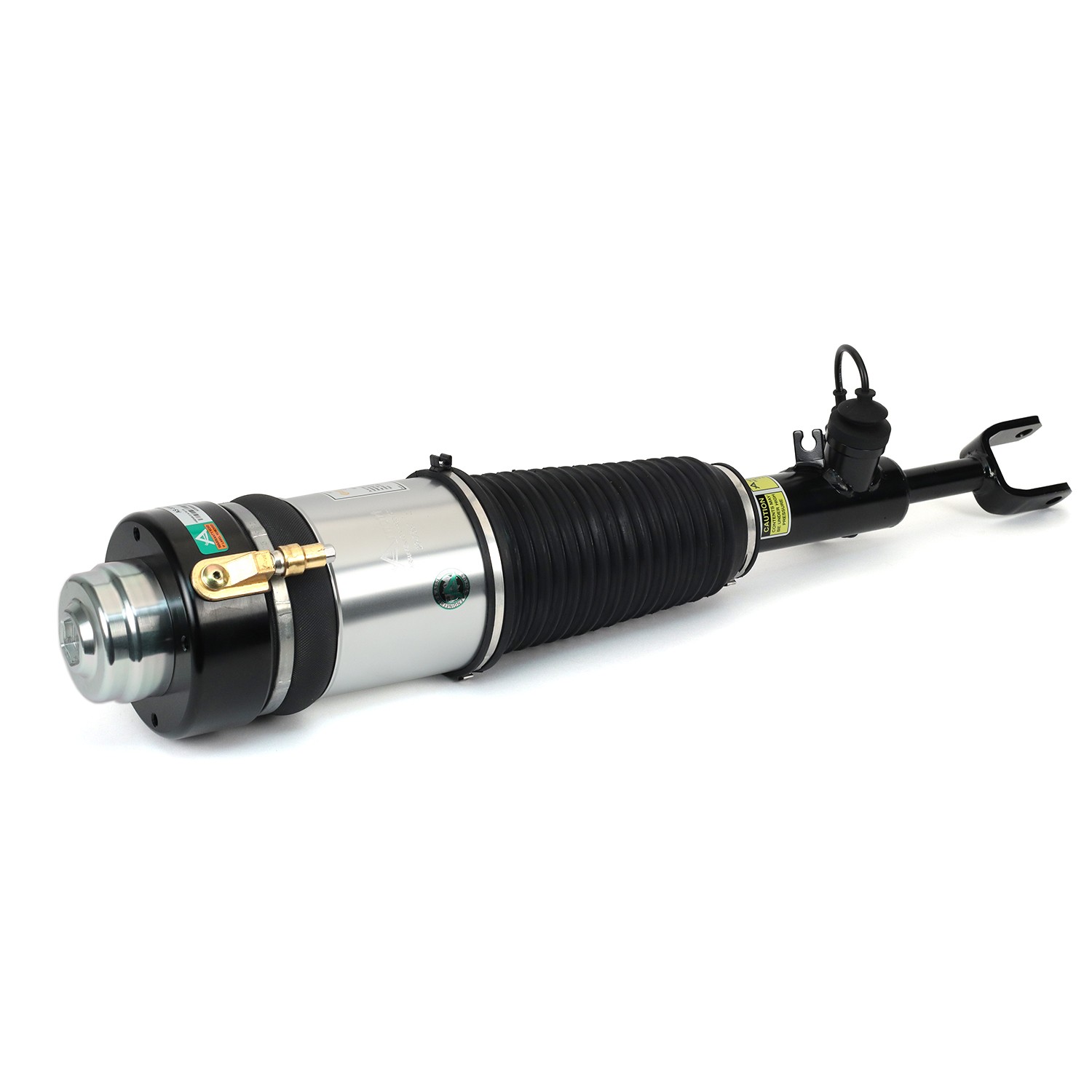

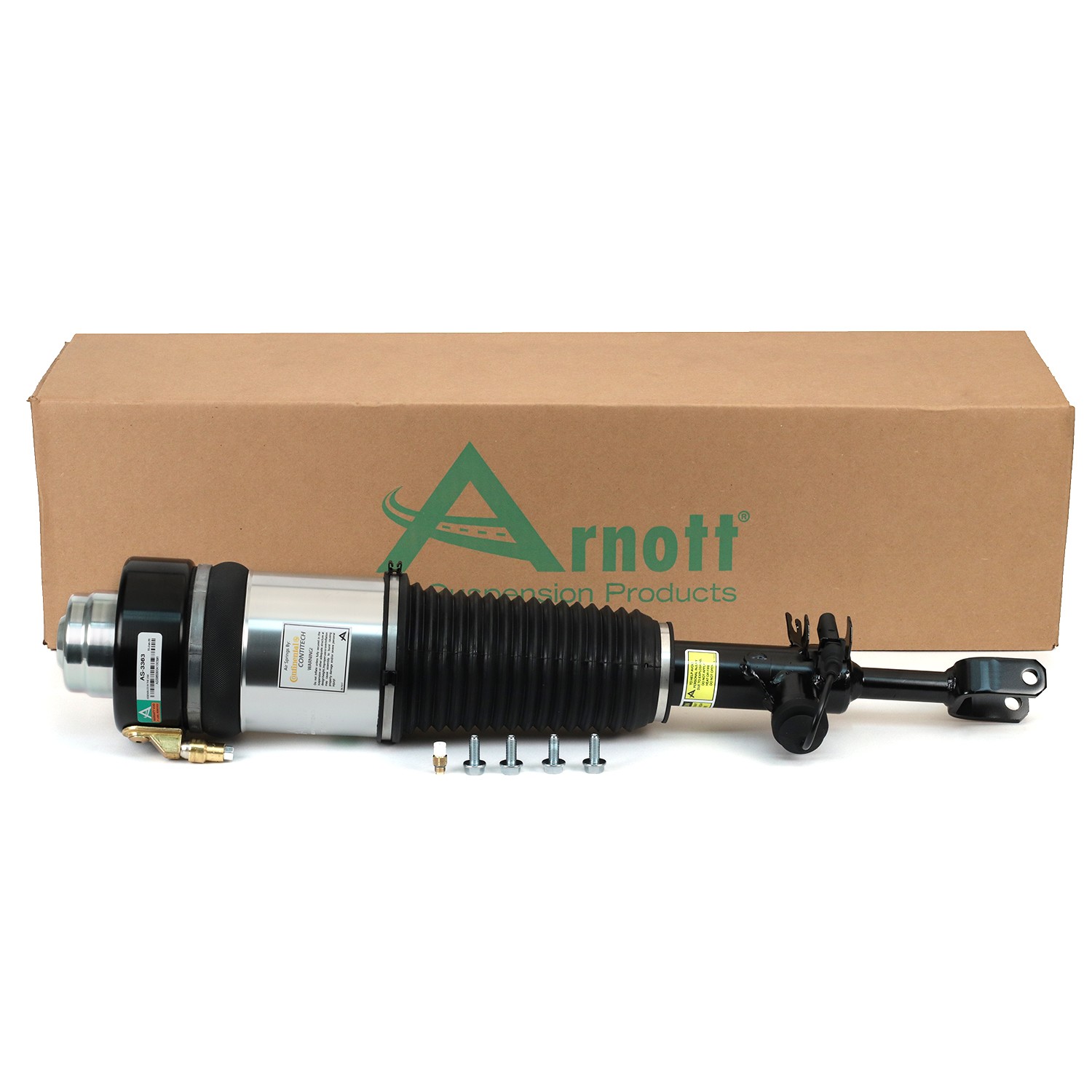

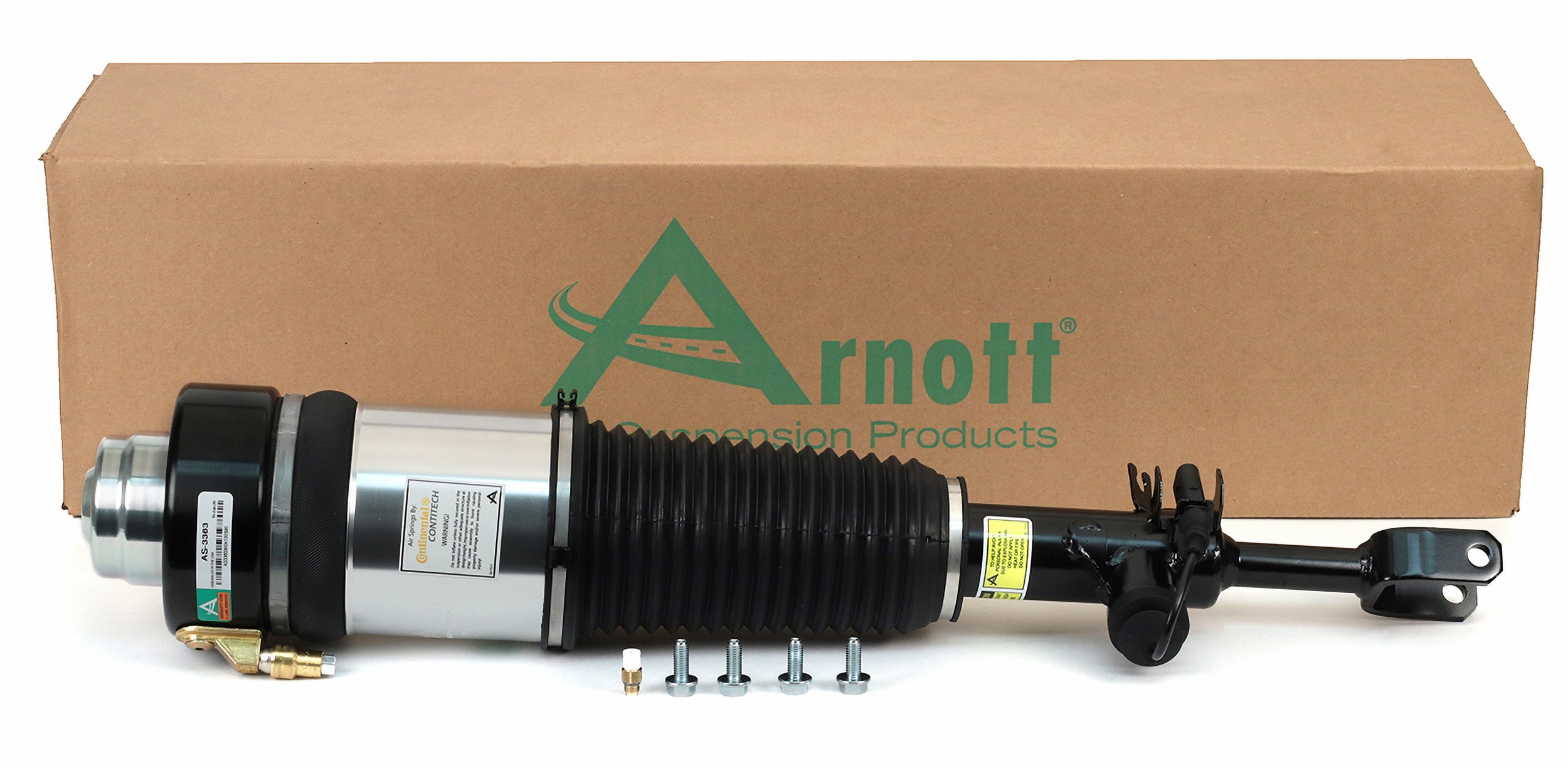

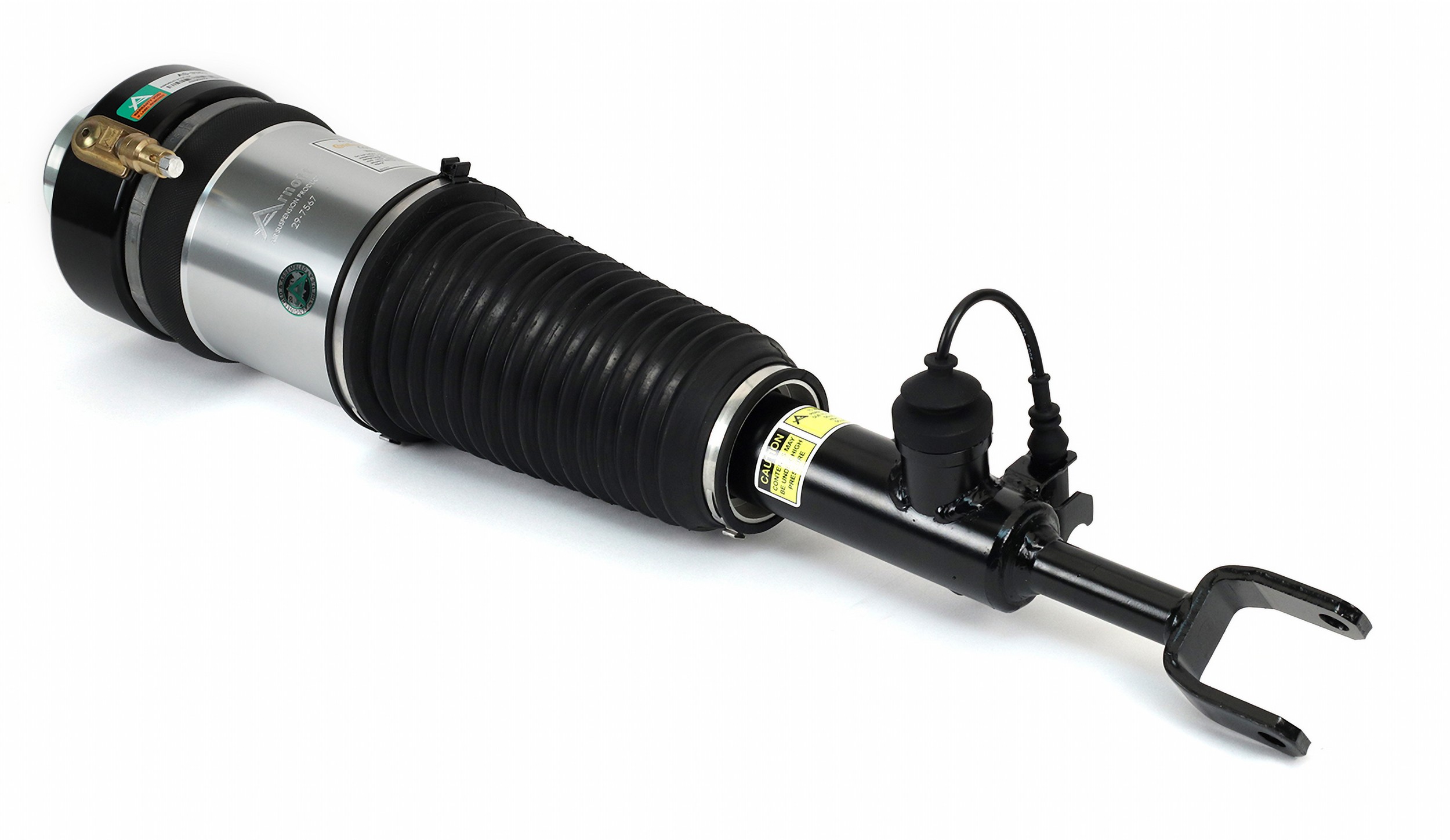

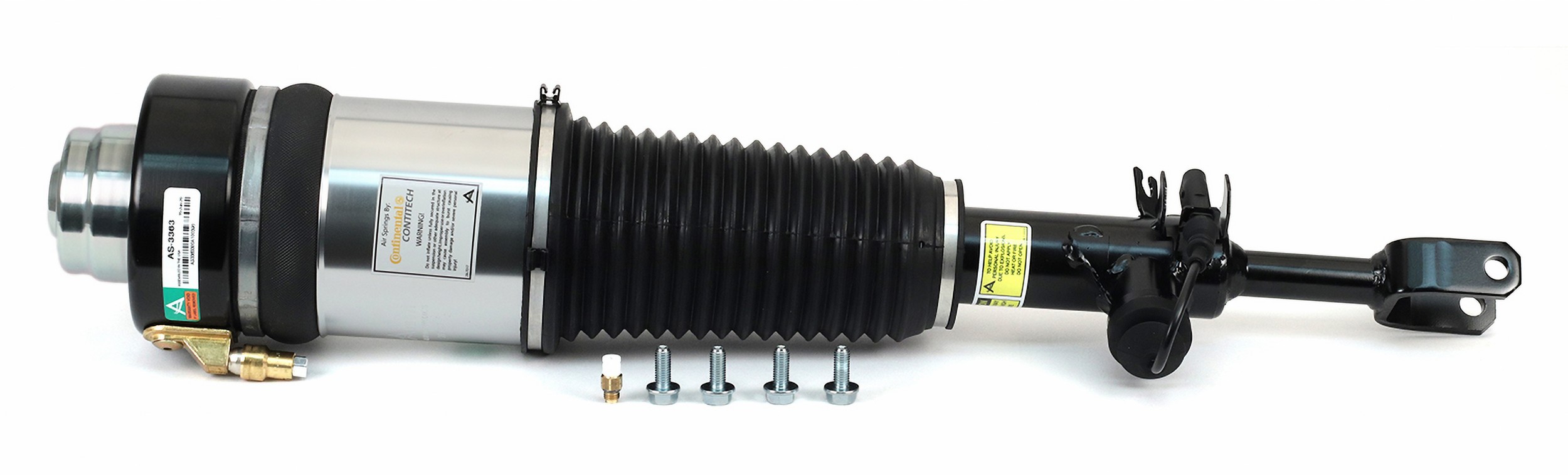

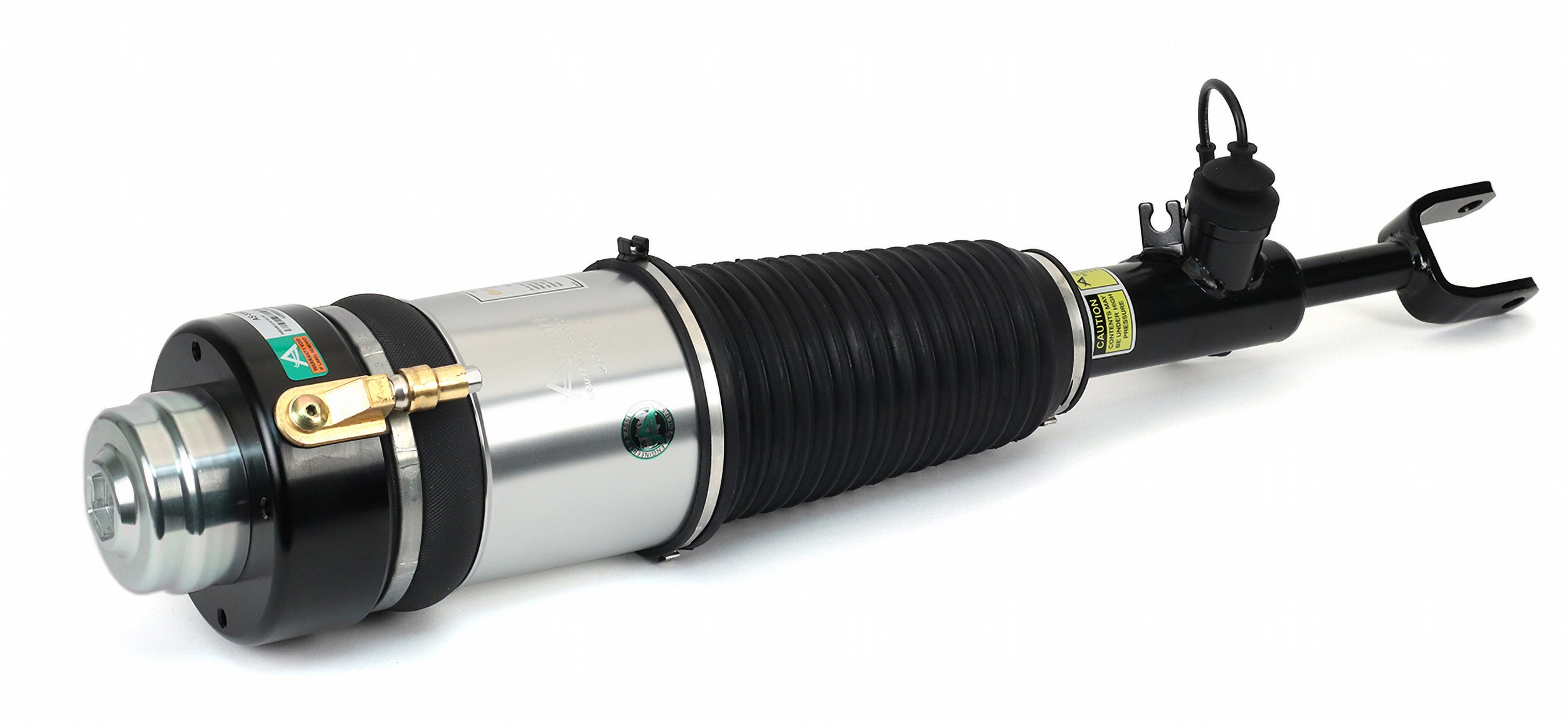

AS-3363 is a new, Arnott engineered, aftermarket air suspension strut for the front right side of the 2005-2011 Audi A6 and 2007-2011 Audi S6 (C6 Chassis). This new, not remanufactured, assembly replaces the adaptive damping OE strut and features a new custom-tuned velocity sensitive shock absorber calibrated to provide an excellent ride and outstanding performance. The Arnott strut includes a new air sleeve from Continental ContiTech protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum. This new air strut is assembled in the USA with Arnotts long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and connector valve along with a dust boot to protect the strut and sensor to eliminate dash panel error messages.

PRODUCT ATTRIBUTE & INFO

Travel Length (MM)	-	173.98999999999998
Compressed Length (MM)	-	507
Extended Length (MM)	-	681
Contents	-	Air shock assembly
Boot Color	-	Black
Body End Measuring Point	-	Center eye
Lower Mount Type	-	Clevis
Internal Damper Type	-	Hydraulic
California Proposition 65	-	N/a
Coil Over Springs Included	-	N/a
Dust Shield Material	-	N/a
Adjustable	-	No
Adjustable Damping	-	No
Lower Mounting Isolator Included	-	No
Protective Aluminum Can	-	No
Spring Seat Included	-	No
Progressive Spring Rate	-	Progressive
Spring Rate Type	-	Progressive
Air Bladder Material	-	Rubber
Shock Absorber Rod End Measuring Point	-	Shoulder of stud
Grade Type	-	Standard
Upper Mount Type	-	Threaded
Internal Construction Type	-	Twin-tube
Shock/strut Design	-	Twin-tube
Air Adjustable	-	Yes
Air Bladder	-	Yes
Air Ride Suspension	-	Yes
Bearing Plate Included	-	Yes
Boot/dust Shield Included	-	Yes
Heavy Duty Crimping Rings	-	Yes
Mounting Hardware Included	-	Yes
Shock Spring Assisted	-	Yes
Spring Isolators Included	-	Yes
Springs Included	-	Yes
Upper Mounting Isolator Included	-	Yes
