TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$174.73 ~~$189.92~~ 8% Off

Only 3 left in stock - order soon.

Product Description

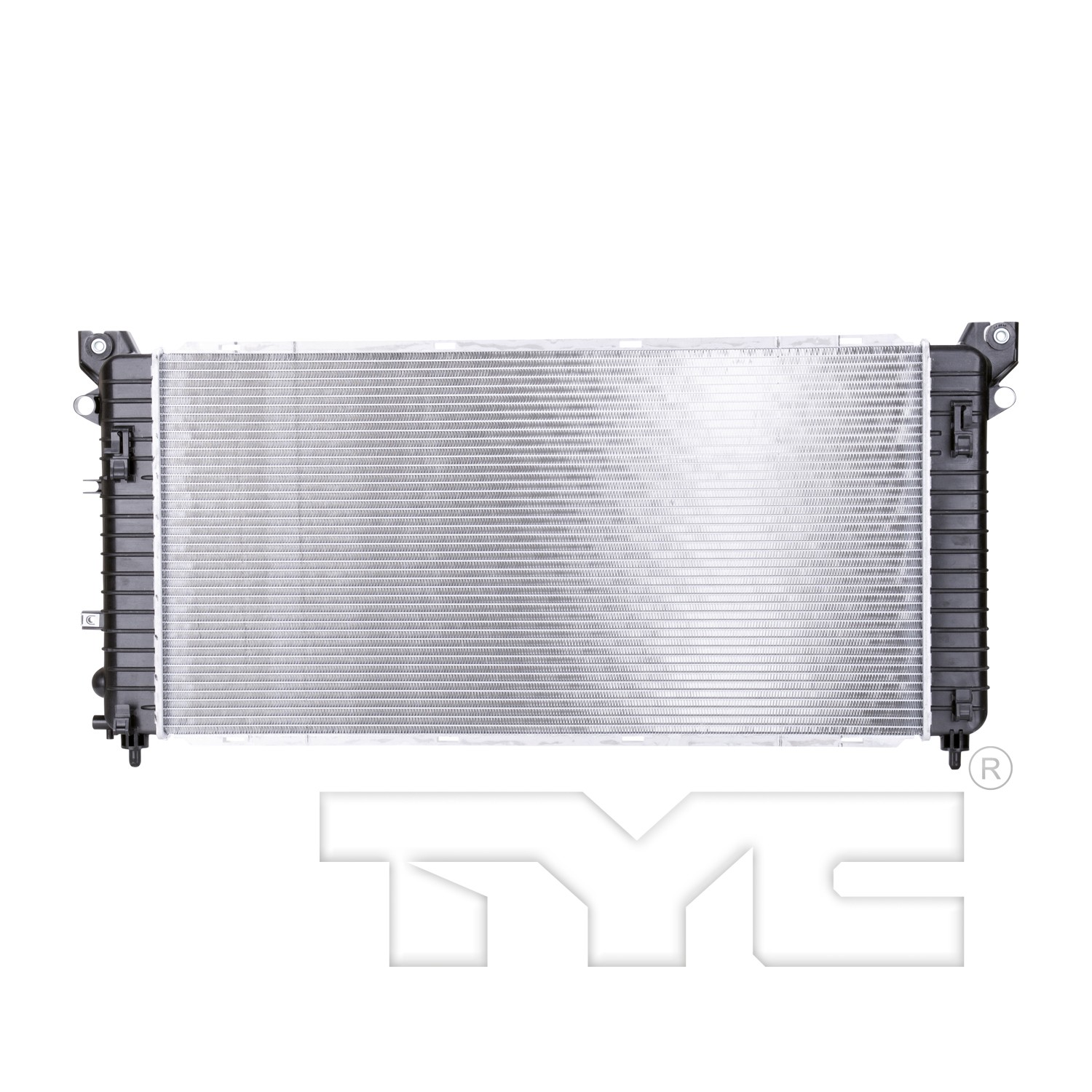

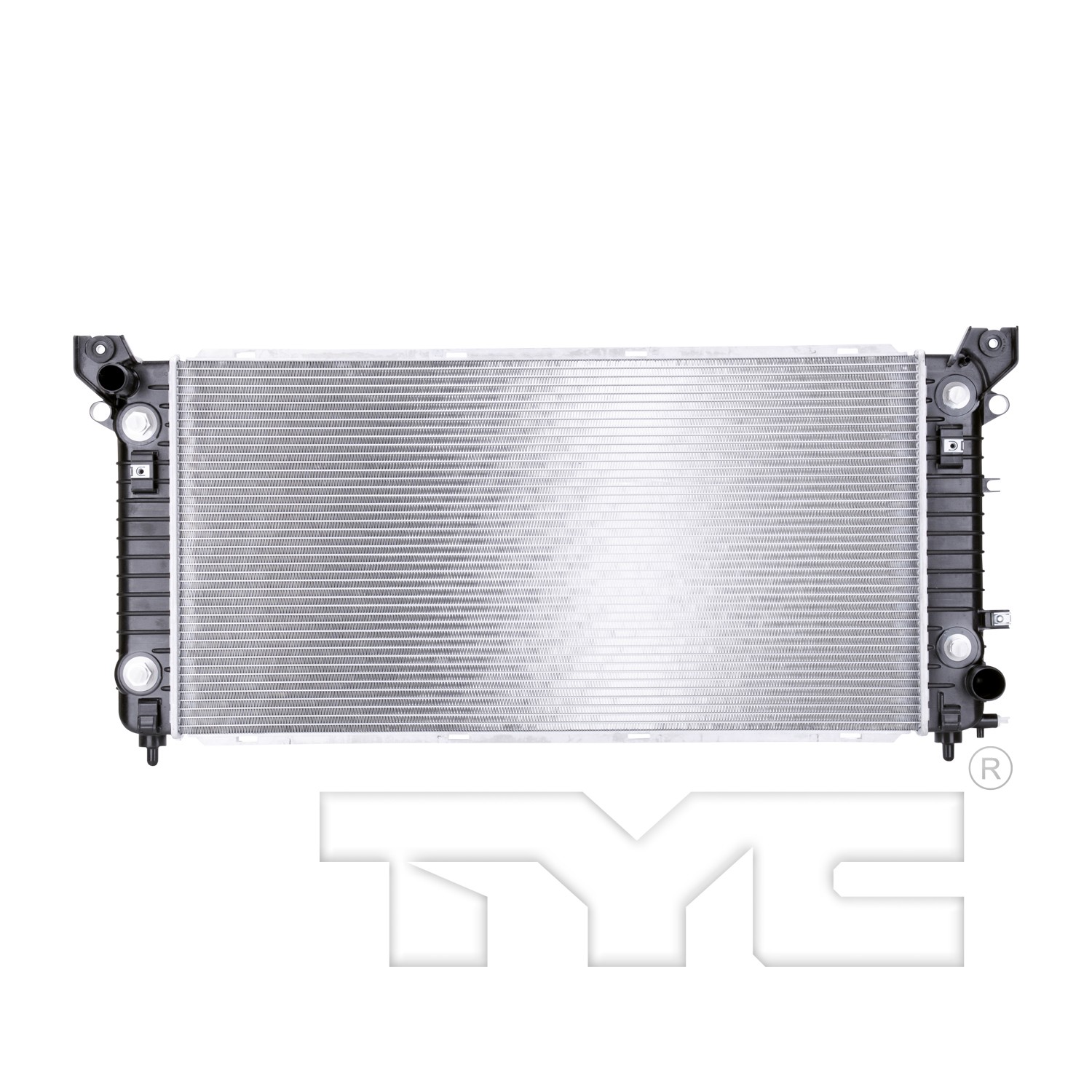

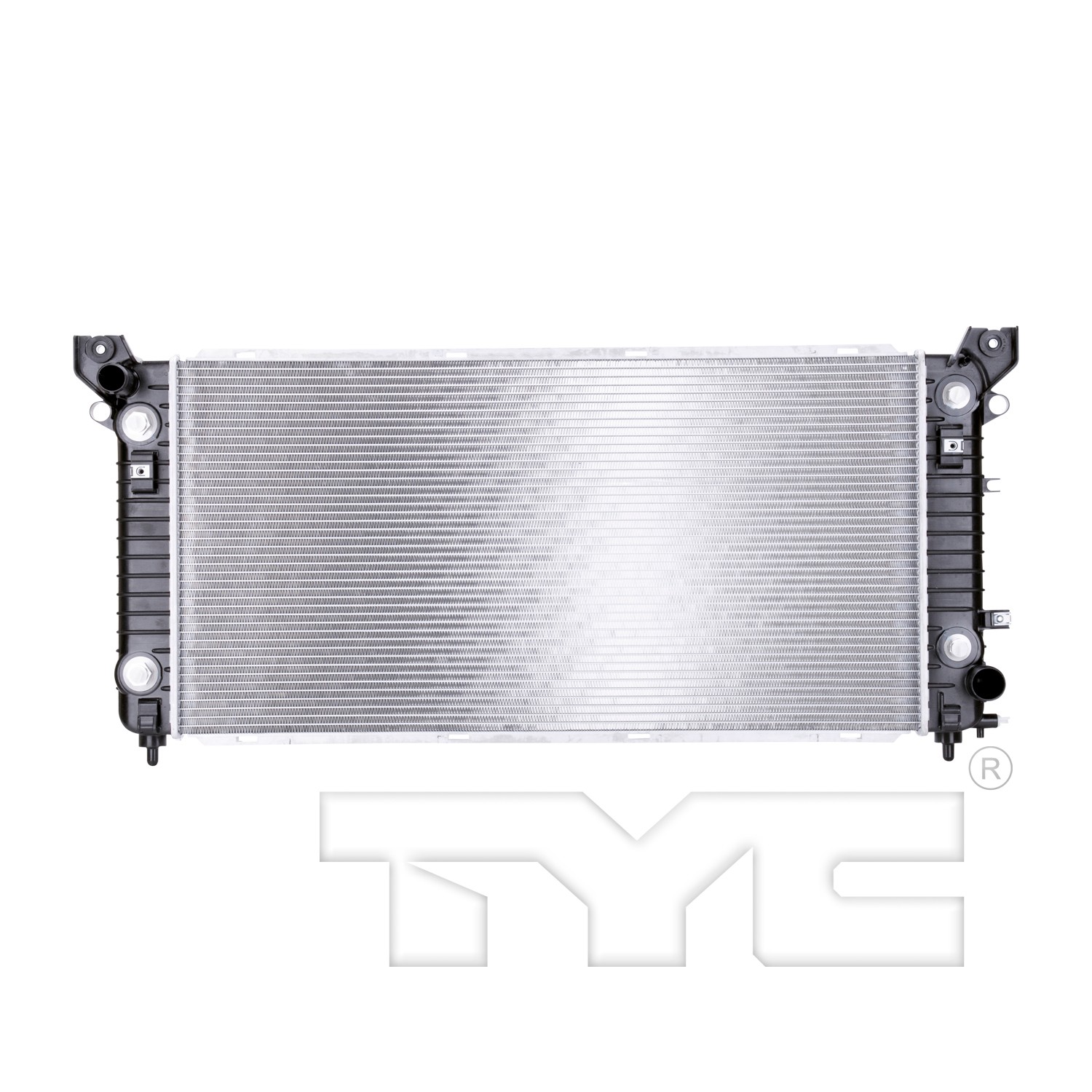

TYC® 13396 Radiator

14-18 CV SLVRD 1500 4.3L V6 AT 1R PA(w/o TOW)RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Remarks	-	W/o towing pkg
Toc Outlet Diameter (in)	-	0.37
Flow Configuration	-	Crossflow
Eoc Outlet Type	-	Quick connect
Eoc Outlet Diameter (in)	-	0.37

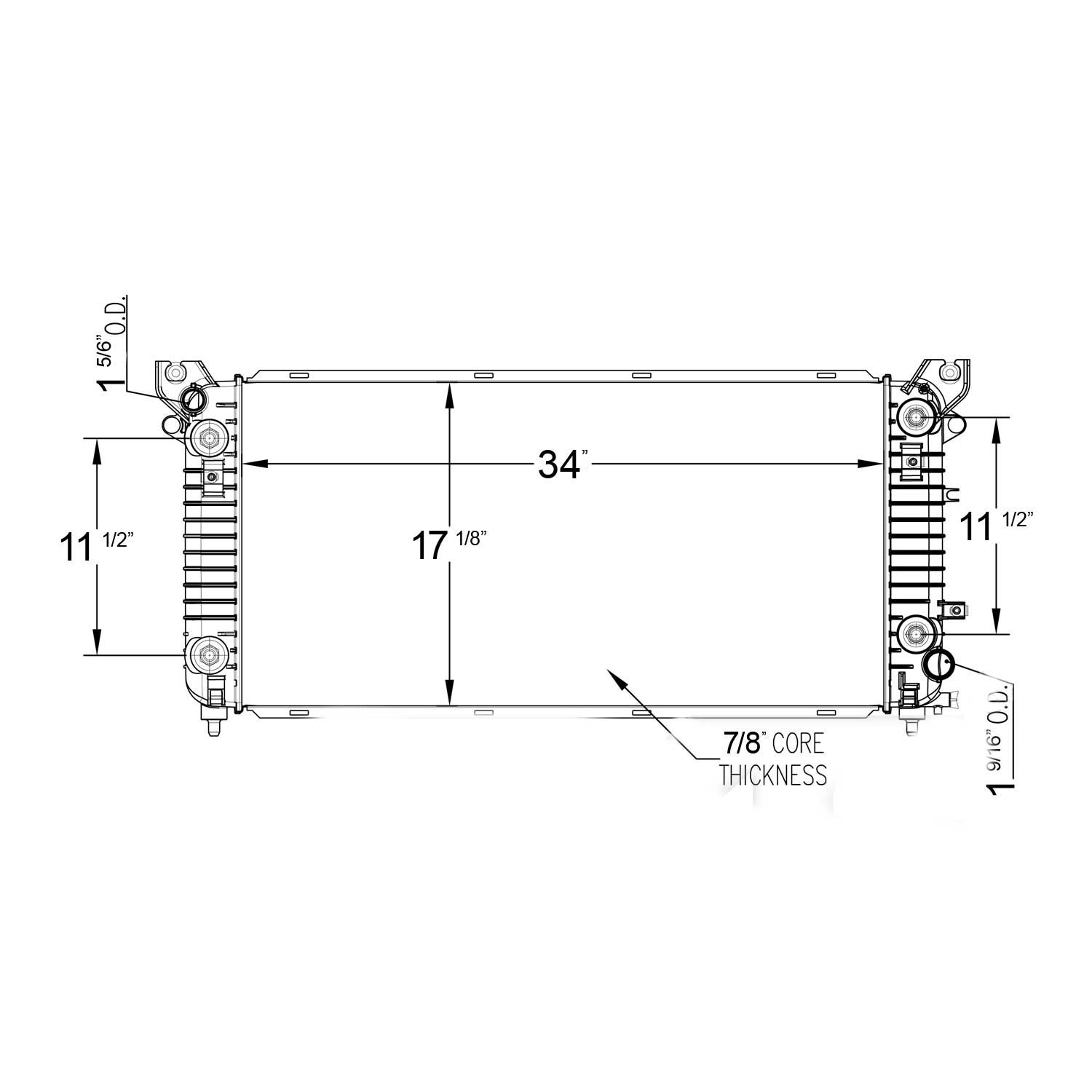

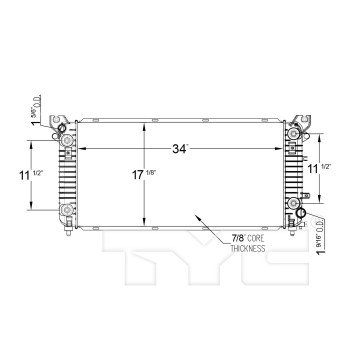

Top Header	-	2.26x17.69
Core Material	-	Aluminum
Eoc Inlet Type	-	Quick connect
Bottom Header	-	2.85x17.69
Core Length (in)	-	34.02
Outlet Connection Type	-	Hose clamp
Toc Distance (in)	-	11.50
Total Fin Row Count	-	46
Fin Wave Height (in)	-	0.31
Core Thickness (in)	-	0.87
Find Wave Pitch	-	2.7
Fin Count (every 4")	-	75
Toc Inlet Diameter (in)	-	0.37
Toc Outlet Type	-	Quick connect
Eoc Distance (in)	-	11.50
Eoc Inlet Diameter (mm)	-	9.5
Tube Count (every 4")	-	11
Inlet Diameter (in)	-	1.34
Toc Inlet Type	-	Quick connect
Engine Oil Cooler Type	-	Plate oil cooler
Tube Width X Height	-	22x1.5
Inlet Connection Type	-	Hose clamp
Core Height (in)	-	17.15
Engine Oil Cooler Included	-	Yes
Total Tube Count	-	45
No. Of Rows	-	1
Transmission Oil Cooler Type	-	Plate oil cooler
Transmission Oil Cooler Included	-	Yes
Eoc Inlet Diameter (in)	-	0.37
Outlet Diameter (in)	-	1.57
