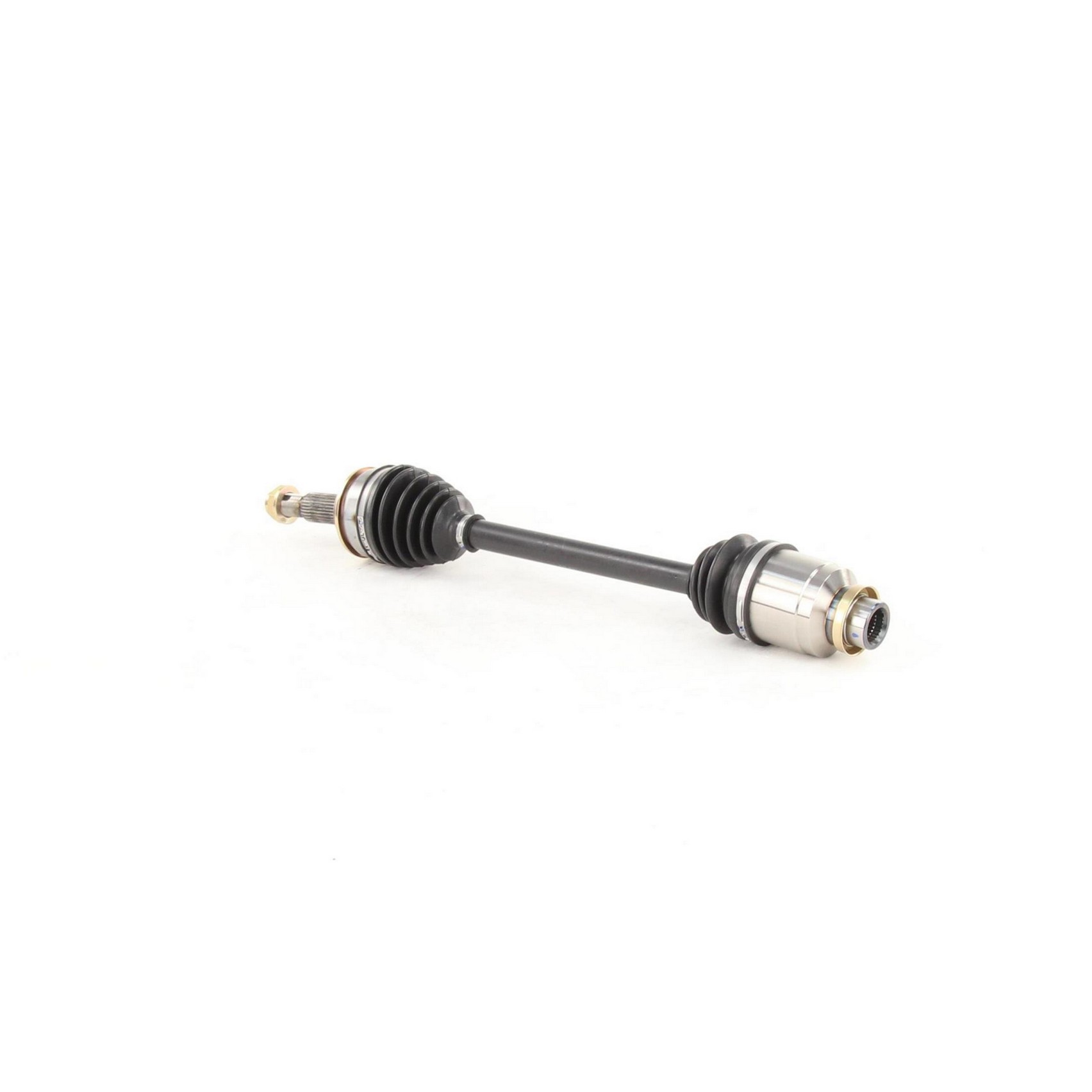

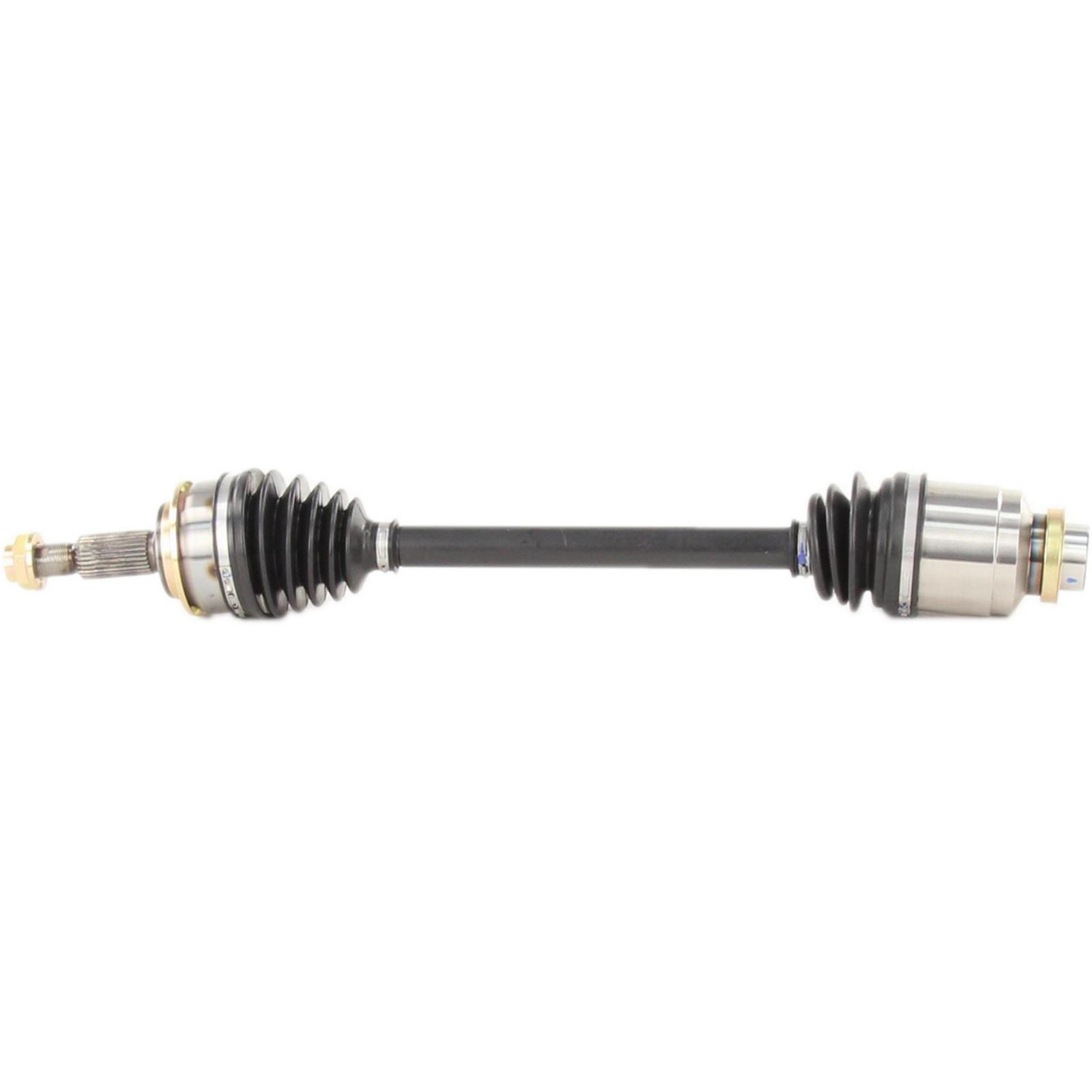

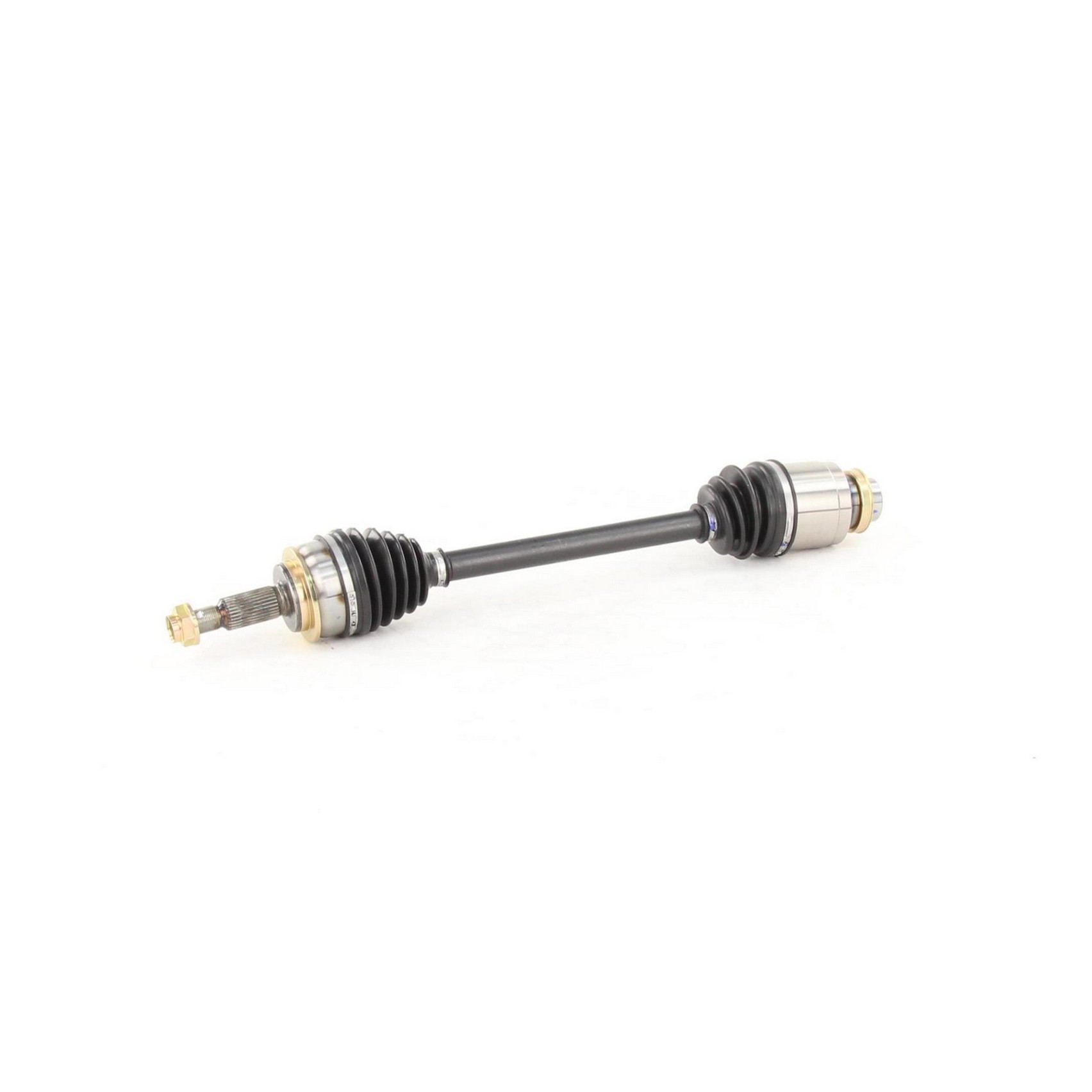

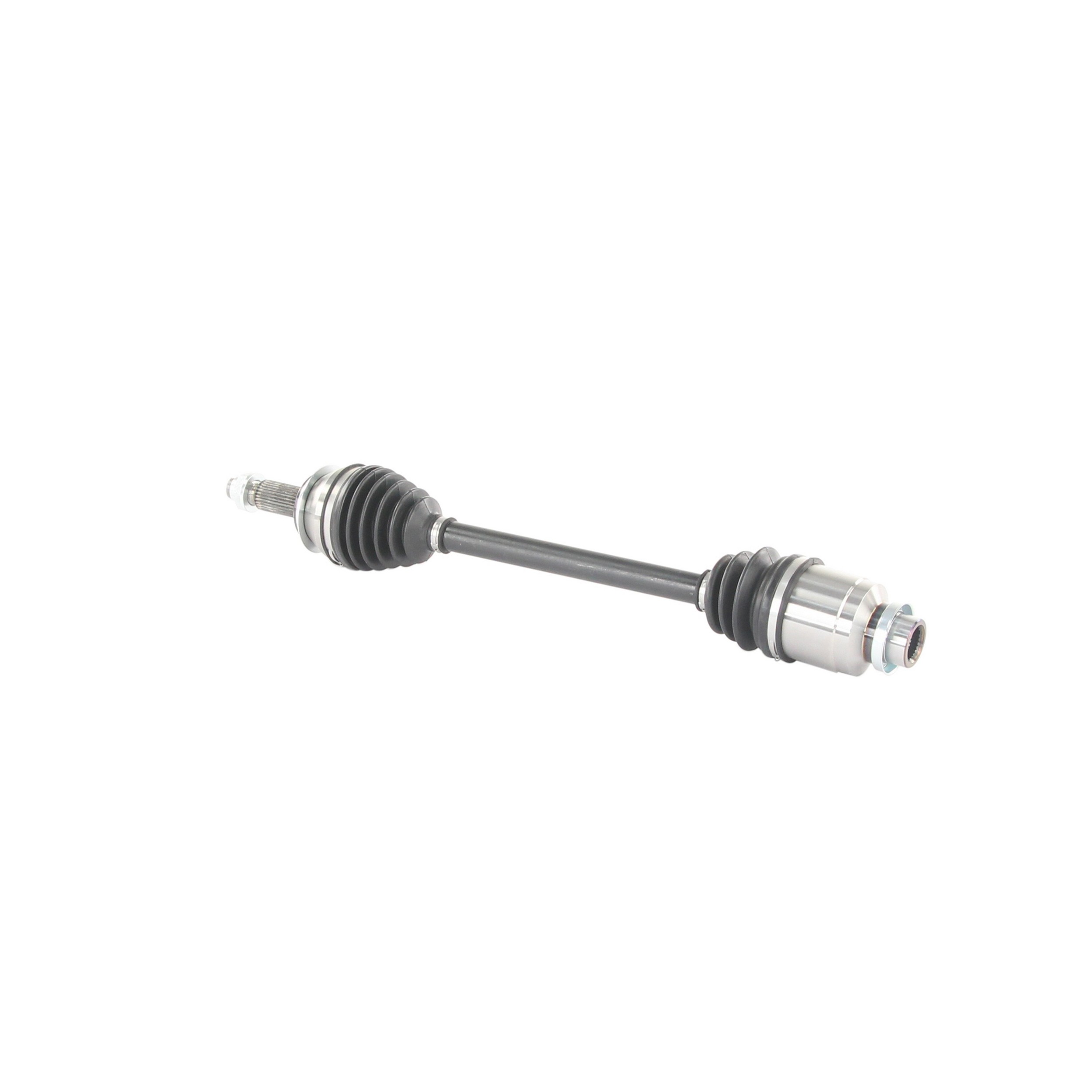

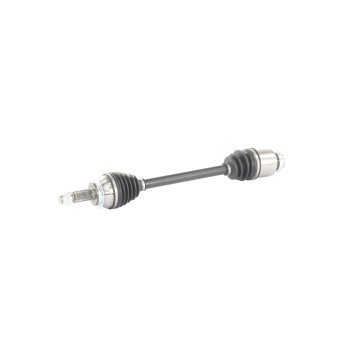

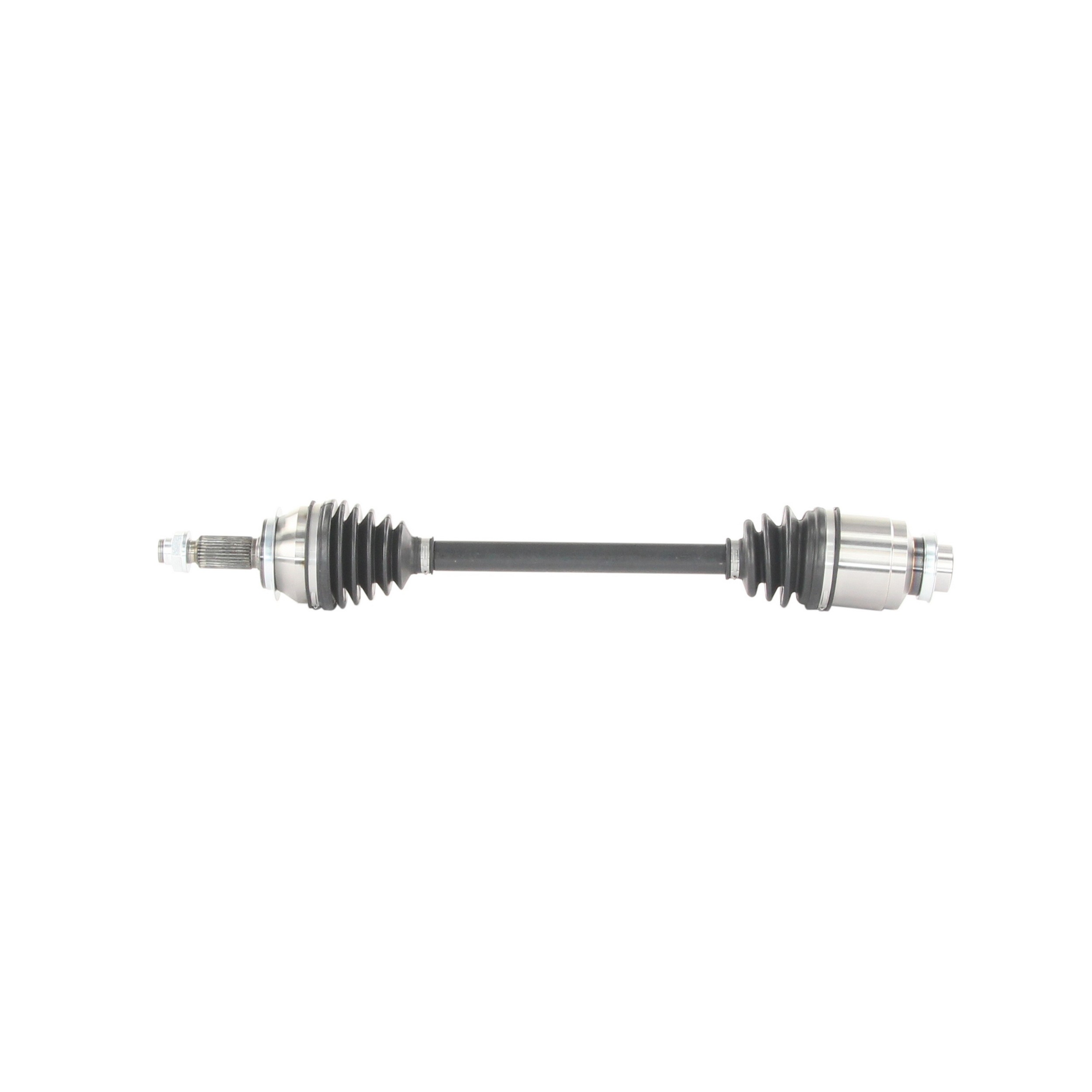

Surtrak® MI-8217 CV Axle Shaft

Name: Surtrak MI-8217 CV Axle Shaft
Brand: Surtrak
SKU: SAMI8217
Price: 81.06 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle1940 studebaker champion

View Correct Part Change Vehicle

CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$81.06 ~~$90.07~~ 10% Off

Only 25 left in stock - order soon.

Product Description

CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

ABS Tone Ring Included	-	No
Axle Nut Height (in)	-	.79
Axle Nut Hex Size (in)	-	1.25
Axle Nut Included	-	Yes
Axle Nut Length (mm)	-	37
Axle Nut Socket Size	-	32
Grade Type	-	Premium
Inboard Joint Type	-	Female
Number Of Bolt Holes	-	0
Number Of Inboard Shaft Bolts	-	0
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Splines	-	28
Outboard Joint Type	-	Conventional
Overall Compressed Length (in)	-	25.39
ABS Ring Tooth Count	-	0
Axle Nut Head Type	-	Hex
Axle Nut Height (mm)	-	20
Axle Nut Hex Size (mm)	-	32
Axle Nut Length (in)	-	1.45
Axle Nut Locking Type	-	Stake
Axle Nut Thread Size	-	M22x1.5
Inboard Joint Boot Material	-	Neoprene
Inboard Shaft Connection Style	-	Spline
Number Of Inboard Joint Bolt Holes	-	0
Number Of Inboard Splines	-	27-2t
Number Of Outboard Shaft Bolts	-	0
Outboard Joint Boot Material	-	Neoprene
Outboard Shaft Connection Style	-	Spline
Overall Compressed Length (mm)	-	645
Show All
