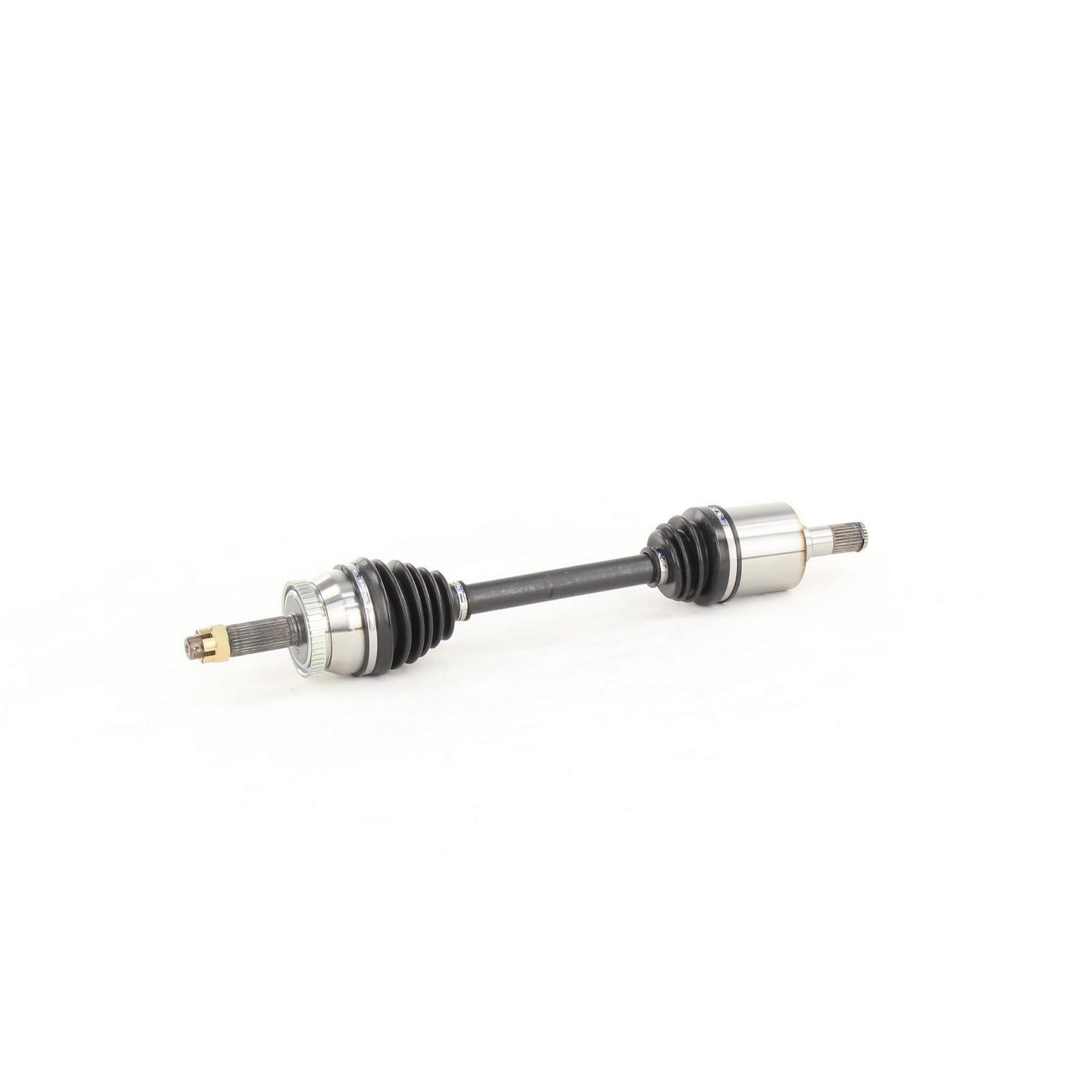

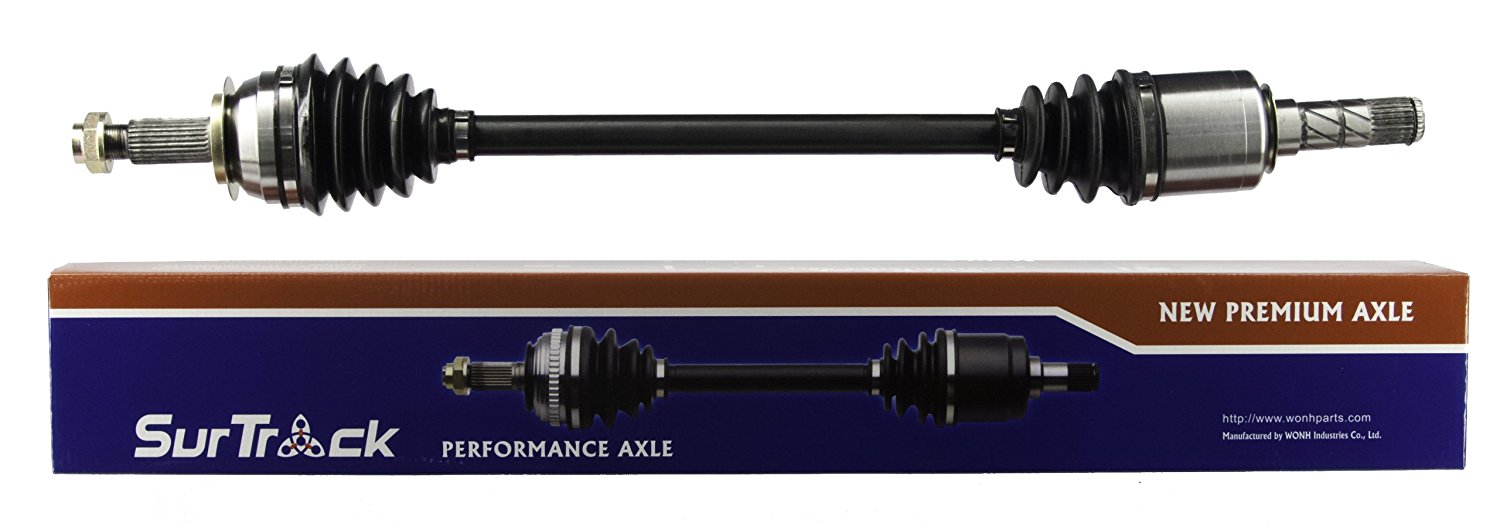

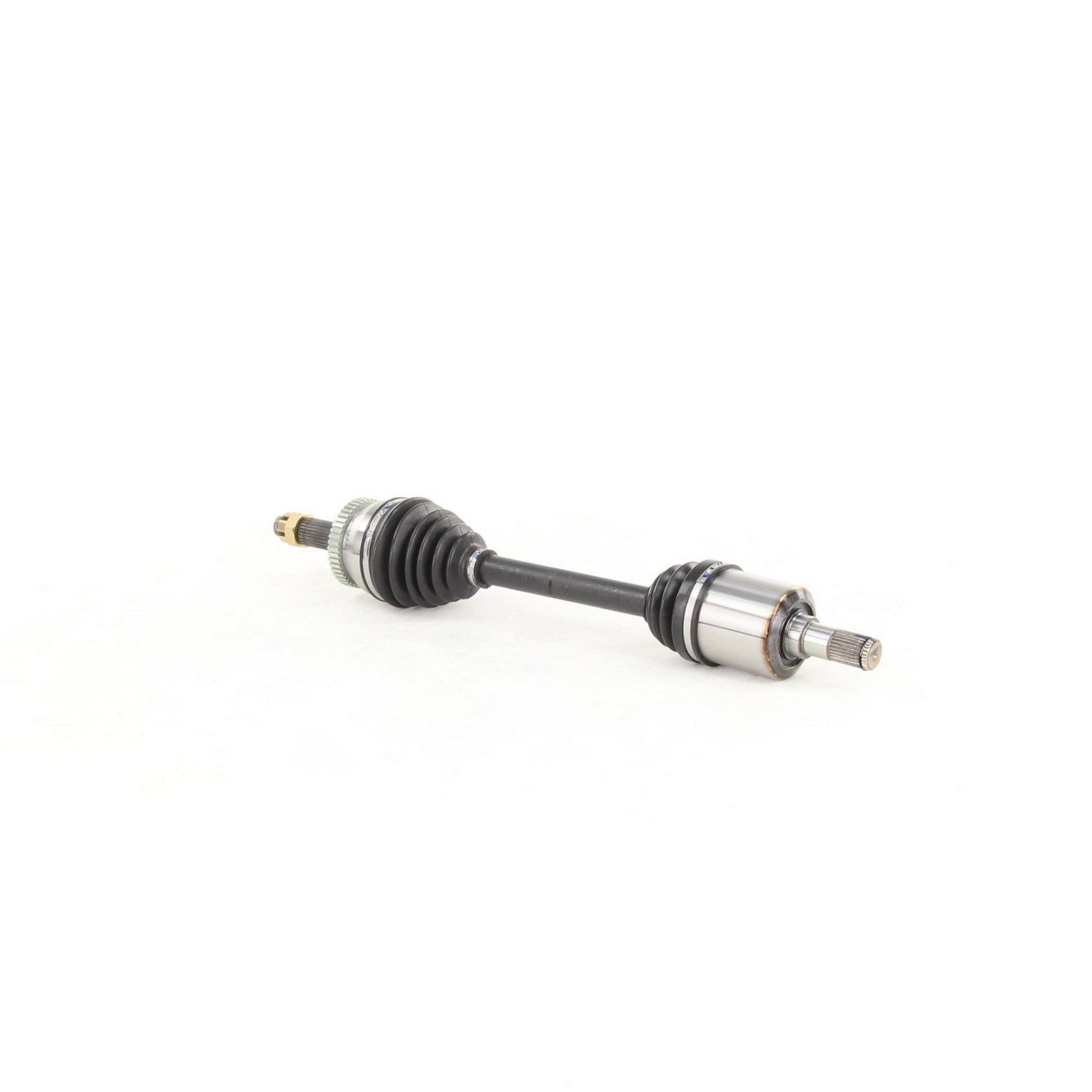

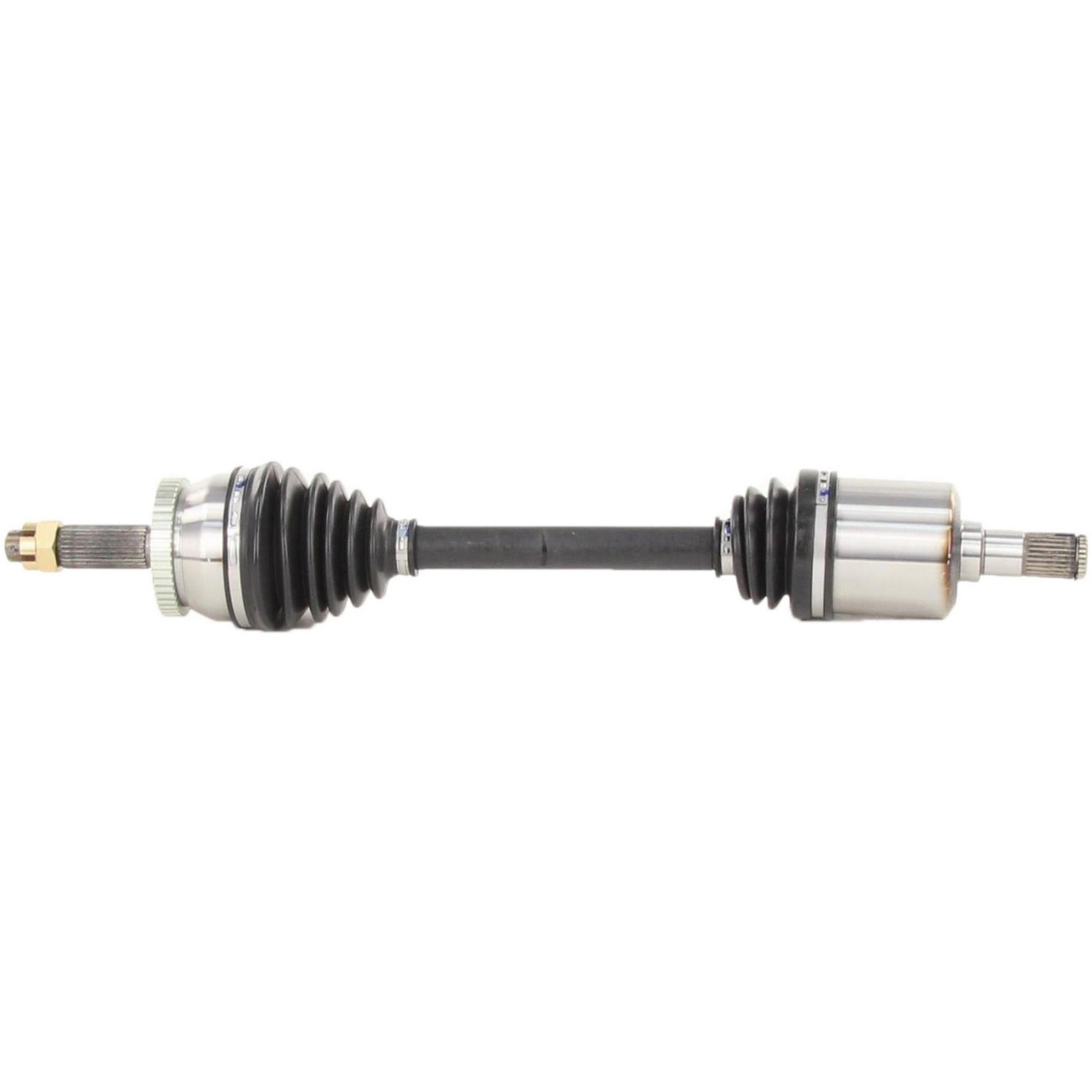

Surtrak® MI-8036 CV Axle Shaft
Manufacturer #MI-8036
Surtrak® MI-8036 CV Axle Shaft
Manufacturer #MI-8036
$73.88
$82.09
Save $8.21 (10%)
Only 2 left in stock – order soon
Get it between Wed, Oct 14 - Fri, Oct 16, 2026
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | SAMI8036 |
|---|---|
| Brand | Surtrak® |
| Part Name | CV Axle Shaft |
| Part | # MI-8036 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
| Manufacturer’s Warranty | Limited Lifetime |
-
Dodge
-
Mitsubishi
- New CV Axle Shaft
- Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:1007 and TS 16949:2009 Certified Company
| Overall Compressed Length (in) | 25.31 |
|---|---|
| Axle Bolt Thread Size | N/a |
| Inboard Bolt Length (mm) | N/a |
| Inboard Bolt Head Size (in) | N/a |
| Outboard Joint Bolt Thread Size | N/a |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Included | Yes |
| Outboard Bolt Head Size (in) | N/a |
| Number Of Inboard Splines | 27 |
| New Or Remanufactured | New |
| Abs Ring Type | Toothed |
| Axle Nut Height (mm) | 22 |
| Axle Bolt Length (mm) | N/a |
| Inboard Bolt Length (in) | N/a |
| Boot Material | Neoprene |
| Outboard Bolt Length (mm) | N/a |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Hex Size (mm) | 32 |
| Number Of Outboard Splines | 27 |
| Number Of Inboard Shaft Bolts | N/a |
| Number Of Bolt Holes | N/a |
| Inboard Shaft Connection Style | Male |
| Abs Ring Tooth Count | 47 |
| Axle Nut Height (in) | 6/7 |
| Axle Bolt Hex Size (mm) | N/a |
| Inboard Bolt Head Type | N/a |
| Outboard Shaft Connection Style | Conventional |
| Outboard Bolt Length (in) | N/a |
| Axle Nut Length (mm) | 37 |
| Overall Compressed Length (mm) | 643 |
| Number Of Outboard Shaft Bolts | N/a |
| Number Of Inboard Joint Bolt Holes | N/a |
| Inboard Joint Type | Male |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Head Type | Hex |
| Abs Tone Ring Included | Yes |
| Inboard Bolt Head Size (mm) | N/a |
| Outboard Joint Type | Conventional |
| Outboard Bolt Head Type | N/a |
| Axle Nut Length (in) | 1 1/2 |
| Outboard Bolt Head Size (mm) | N/a |
| Number Of Outboard Joint Bolt Holes | N/a |
| Inboard Bolt Thread Size | N/a |
