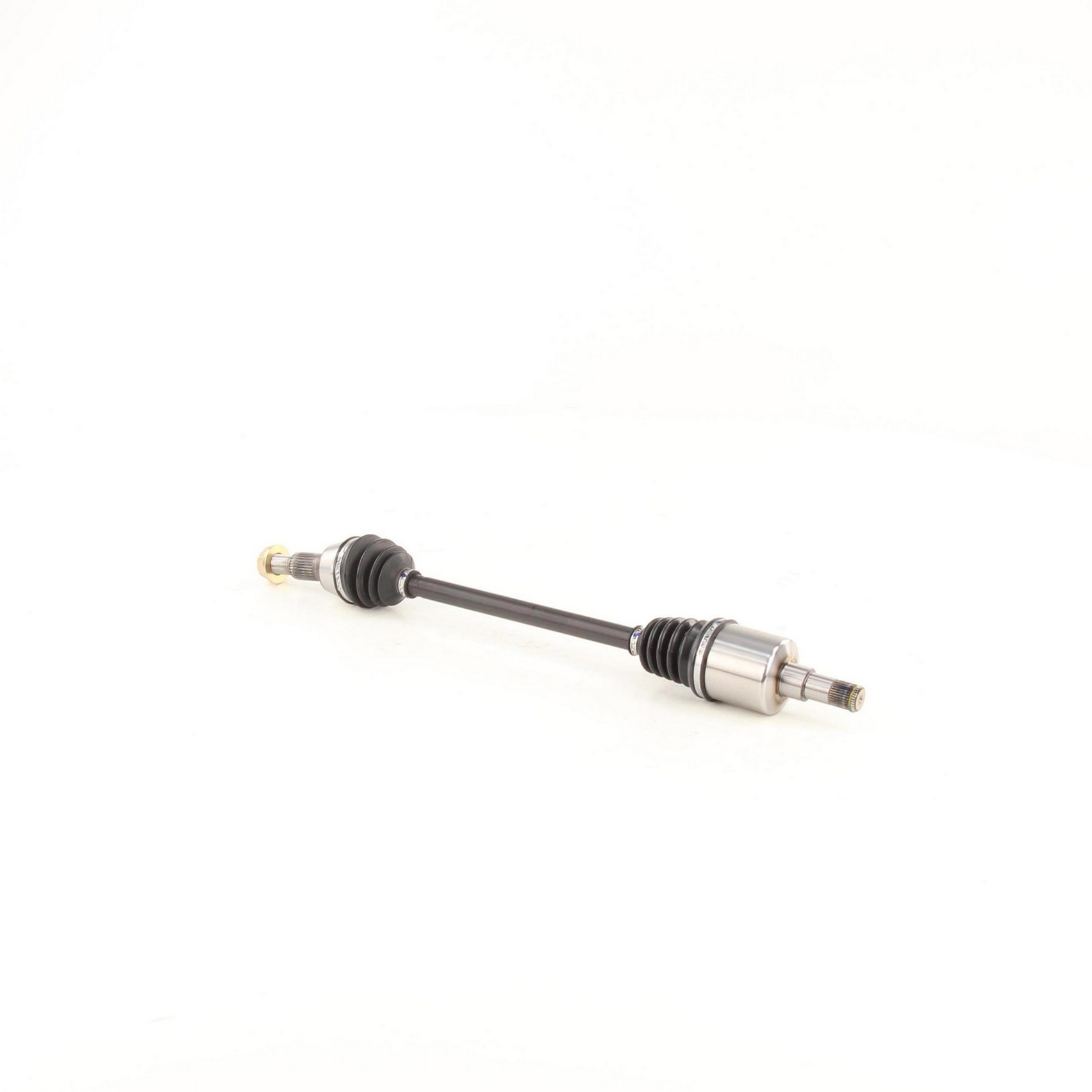

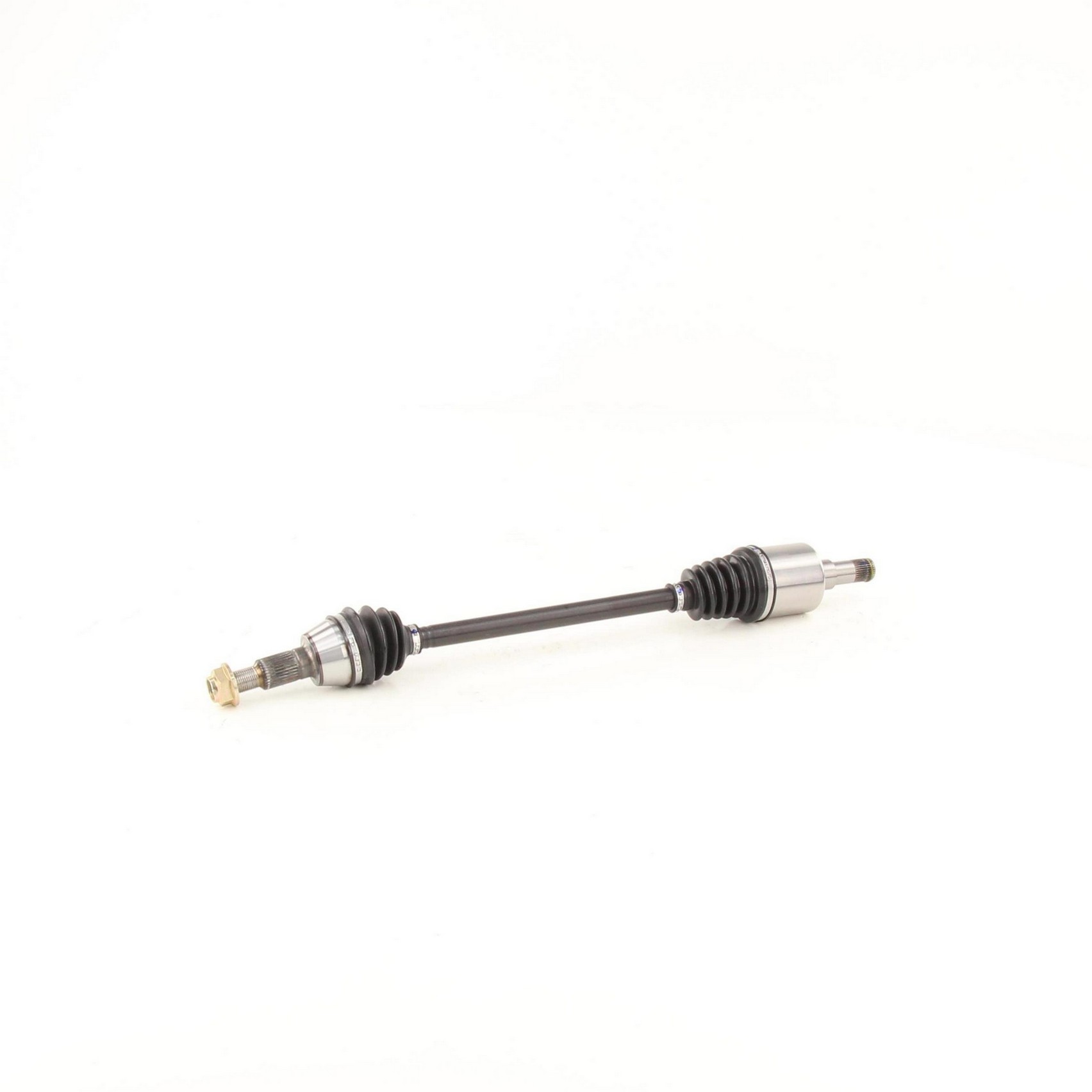

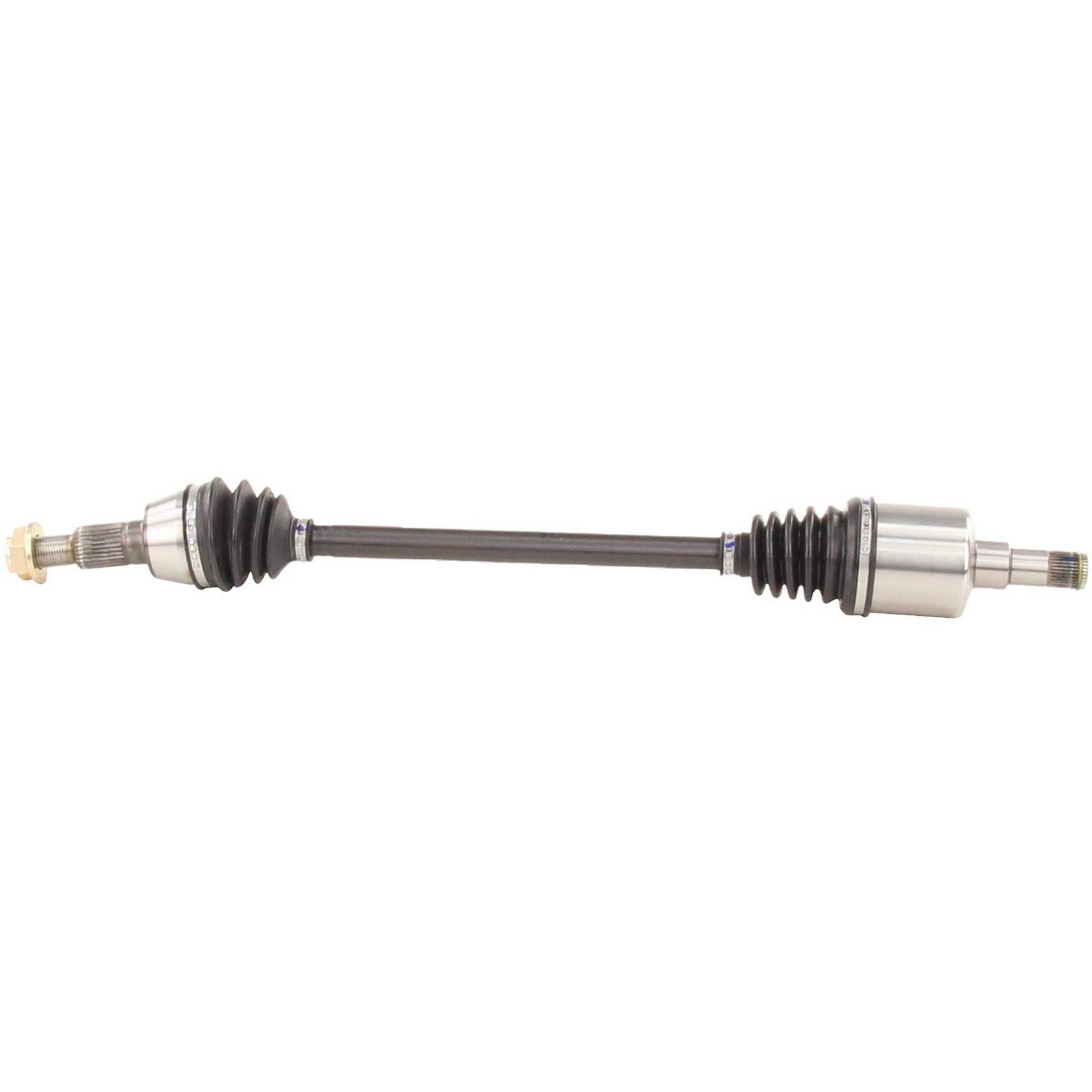

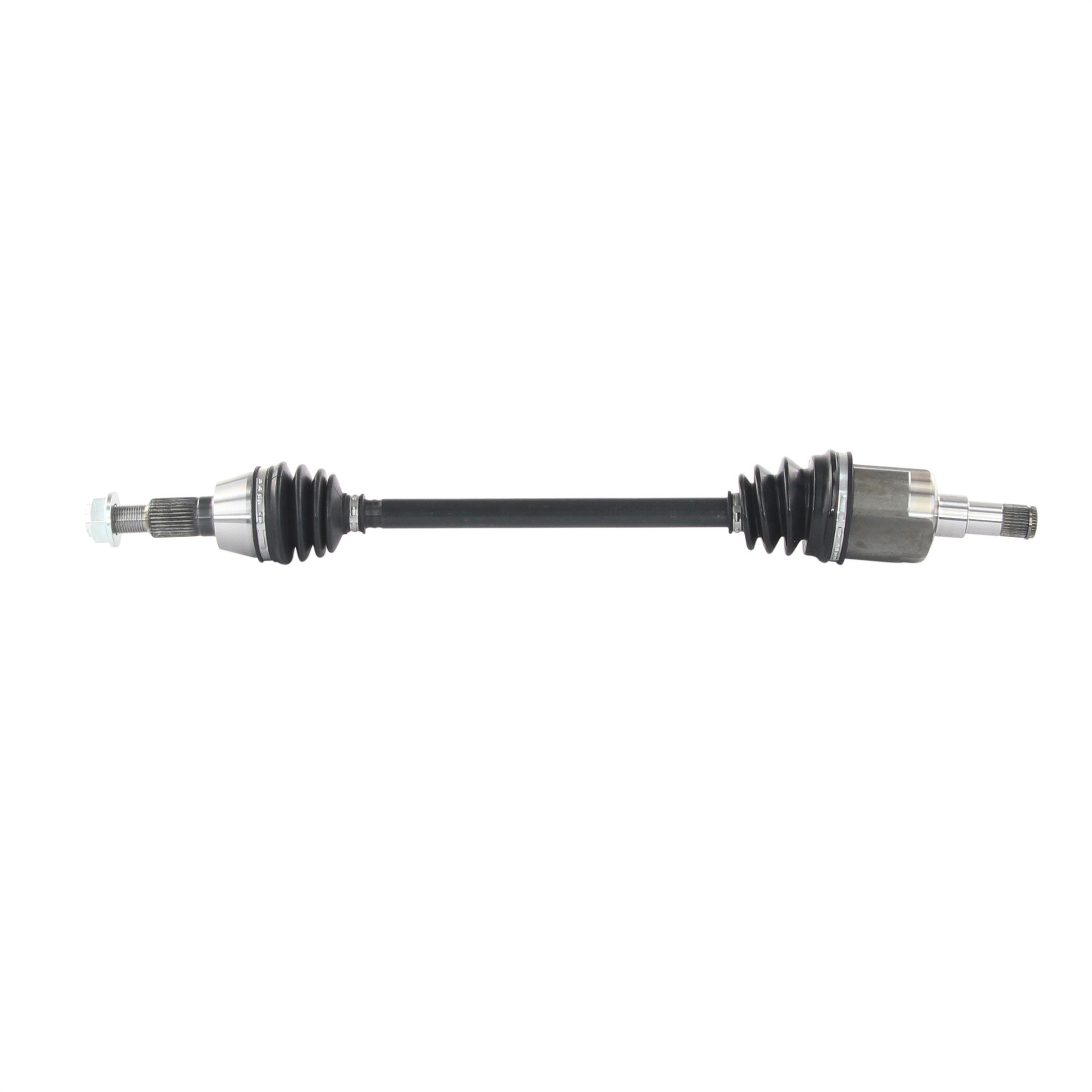

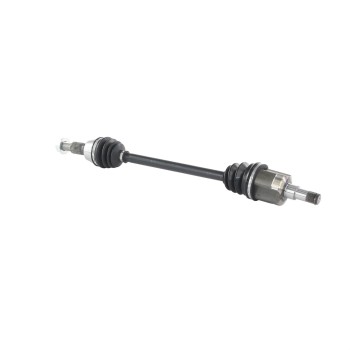

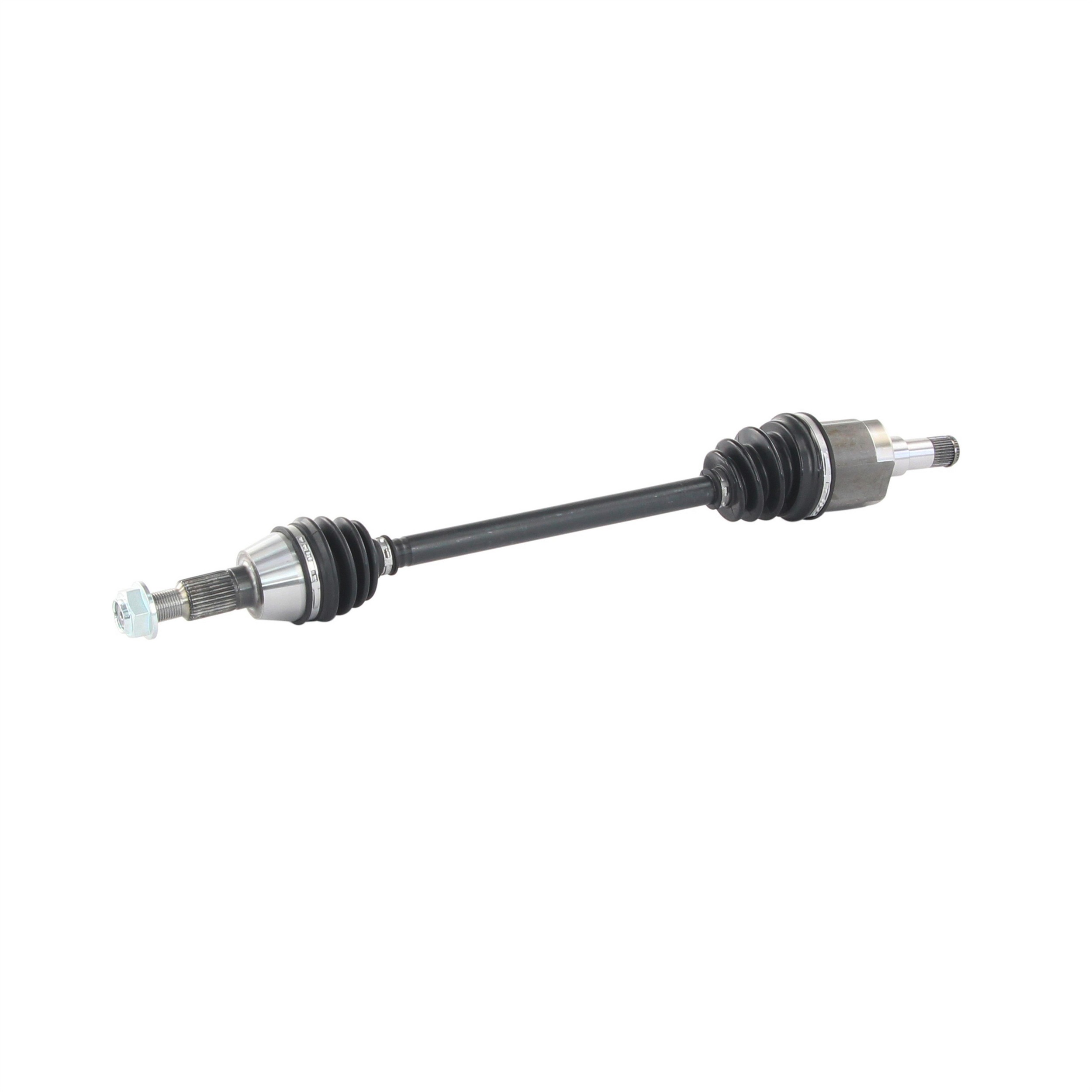

Surtrak® GM-8406 CV Axle Shaft

Name: Surtrak GM-8406 CV Axle Shaft
Brand: Surtrak
SKU: SAGM8406
Price: 93.6 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle1940 studebaker champion

View Correct Part Change Vehicle

CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$93.60 ~~$104.00~~ 10% Off

Only 5 left in stock - order soon.

Product Description

CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

ABS Ring Tooth Count	-	0
ABS Tone Ring Included	-	No
Axle Nut Head Type	-	Hex
Axle Nut Height (in)	-	.91
Axle Nut Height (mm)	-	23
Axle Nut Hex Size (in)	-	1.4
Axle Nut Hex Size (mm)	-	36
Axle Nut Included	-	Yes
Axle Nut Length (in)	-	1.61
Axle Nut Length (mm)	-	41
Axle Nut Locking Type	-	Self-lock
Axle Nut Socket Size	-	36
Axle Nut Thread Size	-	M24x2
Grade Type	-	Premium
Inboard Joint Boot Material	-	Neoprene
Inboard Joint Type	-	Male
Inboard Shaft Connection Style	-	Spline
Number Of Bolt Holes	-	0
Number Of Inboard Joint Bolt Holes	-	0
Number Of Inboard Shaft Bolts	-	0
Number Of Inboard Splines	-	34
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Shaft Bolts	-	0
Number Of Outboard Splines	-	30
Outboard Joint Boot Material	-	Neoprene
Outboard Joint Type	-	Conventional
Outboard Shaft Connection Style	-	Spline
Overall Compressed Length (in)	-	29.88
Overall Compressed Length (mm)	-	759
