Name: Surtrak GM-8033XTT CV Axle Shaft
Brand: Surtrak
SKU: SAGM8033XTT
Price: 153.91 USD
Availability: InStock

Description

Extended Travel CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$153.91 ~~$167.29~~ 8% Off

SKU	SAGM8033XTT
Brand	Surtrak®
Part Name	CV Axle Shaft
Part	# GM-8033XTT
UPC	# 00195013042571
Quantity Per Vehicle	2
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

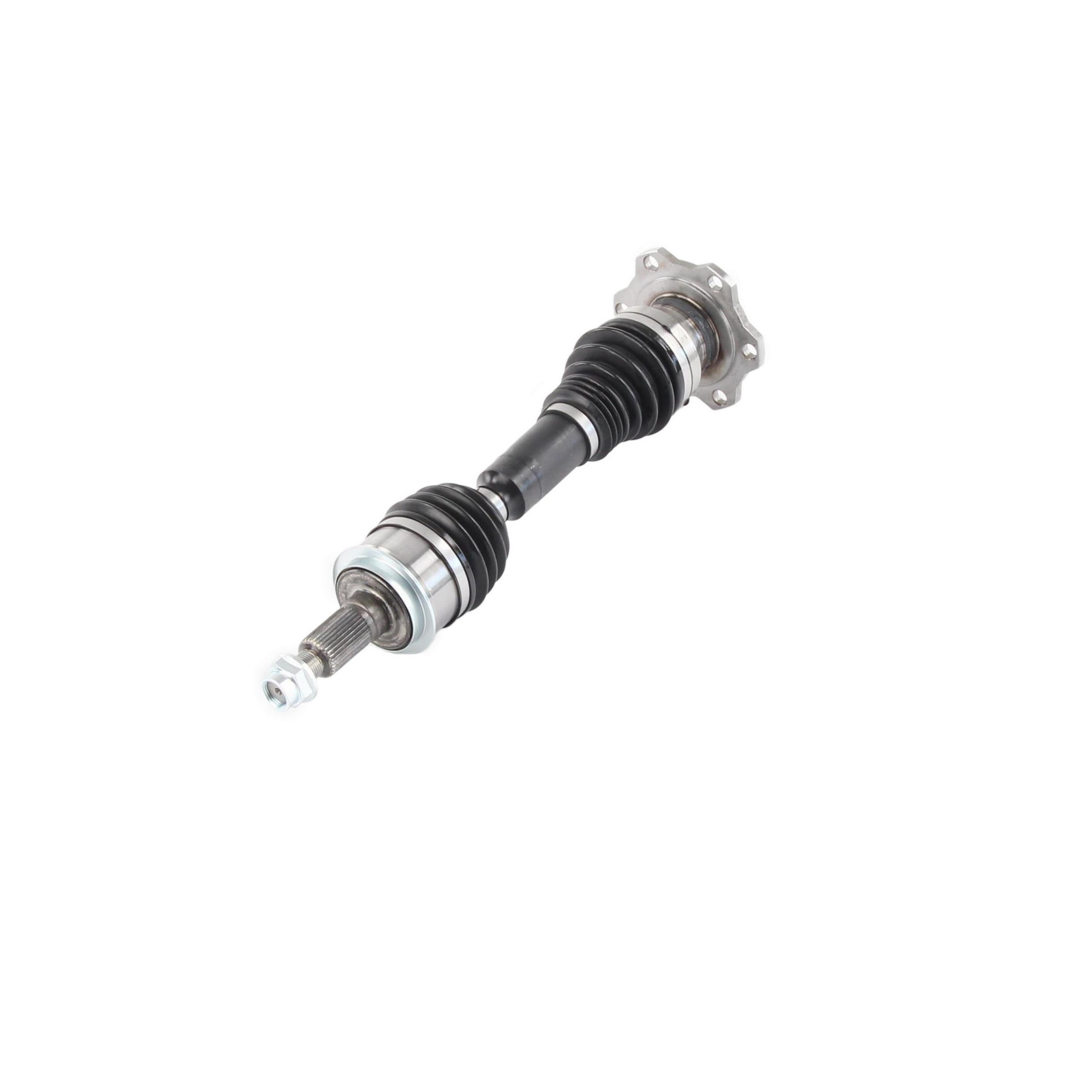

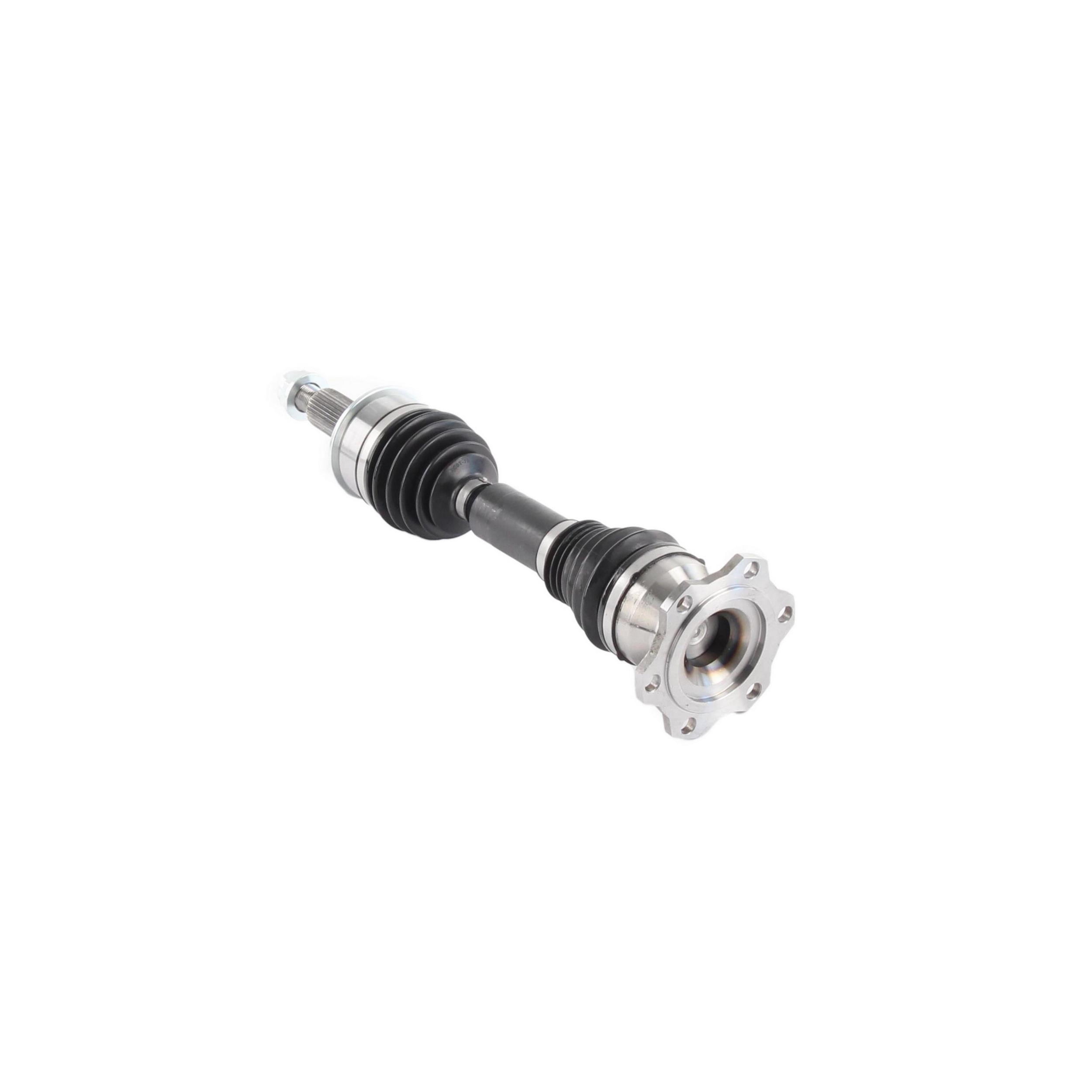

Surtrak® GM-8033XTT CV Axle Shaft

Extended Travel CV Axle Shaft

Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

PRODUCT ATTRIBUTE & INFO

ABS Tone Ring Included	-	No
Axle Nut Height (in)	-	.85
Axle Nut Hex Size (in)	-	1.42
Axle Nut Included	-	Yes
Axle Nut Length (mm)	-	42
Axle Nut Socket Size	-	36
Grade Type	-	Premium
Inboard Joint Type	-	Flange
Number Of Bolt Holes	-	0
Number Of Inboard Shaft Bolts	-	0
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Splines	-	33
Outboard Joint Type	-	Conventional
Overall Compressed Length (in)	-	21.06
ABS Ring Tooth Count	-	0
Axle Nut Head Type	-	Hex
Axle Nut Height (mm)	-	22
Axle Nut Hex Size (mm)	-	36
Axle Nut Length (in)	-	1.64
Axle Nut Locking Type	-	Self-lock
Axle Nut Thread Size	-	M24x1.5
Inboard Joint Boot Material	-	Thermoplastic
Inboard Shaft Connection Style	-	Bolt-on
Number Of Inboard Joint Bolt Holes	-	6
Number Of Inboard Splines	-	0
Number Of Outboard Shaft Bolts	-	0
Outboard Joint Boot Material	-	Thermoplastic
Outboard Shaft Connection Style	-	Spline
Overall Compressed Length (mm)	-	535
