Surtrak® BM-8194 CV Axle Shaft
Manufacturer #BM-8194
Surtrak® BM-8194 CV Axle Shaft
Manufacturer #BM-8194
$147.89
$164.32
Save $16.43 (10%)
(18) In Stock
Get it between Thu, Aug 28 - Mon, Sep 01, 2025
This part does not fit your selected vehicle 1970 Aston Martin DBS
Change vehicle | View Correct PartFree & Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | SABM8194 |
|---|---|
| Brand | Surtrak® |
| Part Name | CV Axle Shaft |
| Part | # BM-8194 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Bmw
- CV Axle Shaft
- Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
| ABS Ring Type | Window |
|---|---|
| Axle Bolt Hex Size (mm) | 8 |
| Axle Bolt Thread Size | M10x1.5 |
| Axle Nut Height (in) | .63 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Socket Size | 36 |
| Grade Type | Premium |
| Inboard Joint Type | Bolt-on |
| Number Of Bolt Holes | 6 |
| ABS Ring Tooth Count | 48 |
| ABS Tone Ring Included | Yes |
| Axle Bolt Length (mm) | 55 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M27x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |

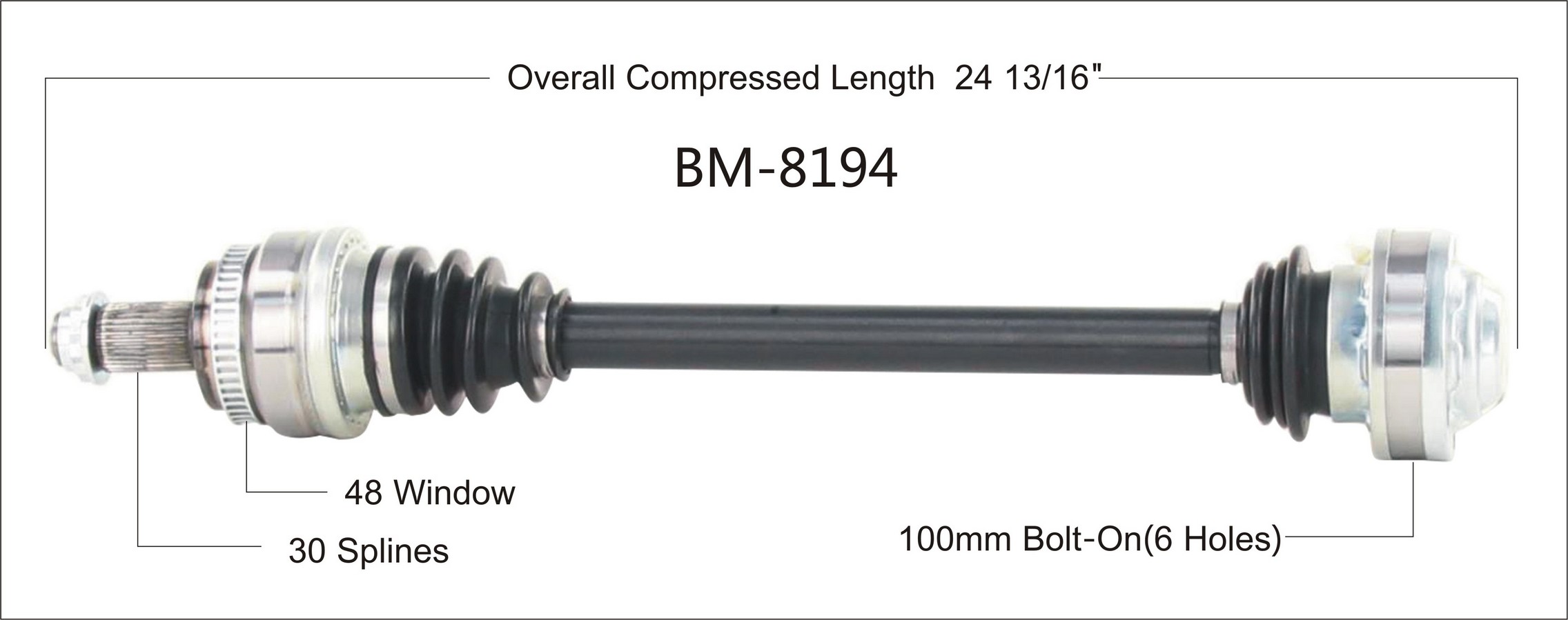

| Overall Compressed Length (in) | 24.8 |
| Overall Compressed Length (mm) | 630 |
