Name: Surtrak AD-8168 CV Axle Shaft
Brand: Surtrak
SKU: SAAD8168
Price: 105.52 USD
Availability: InStock

AAR CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$105.52 ~~$117.24~~ 10% Off

Product Description

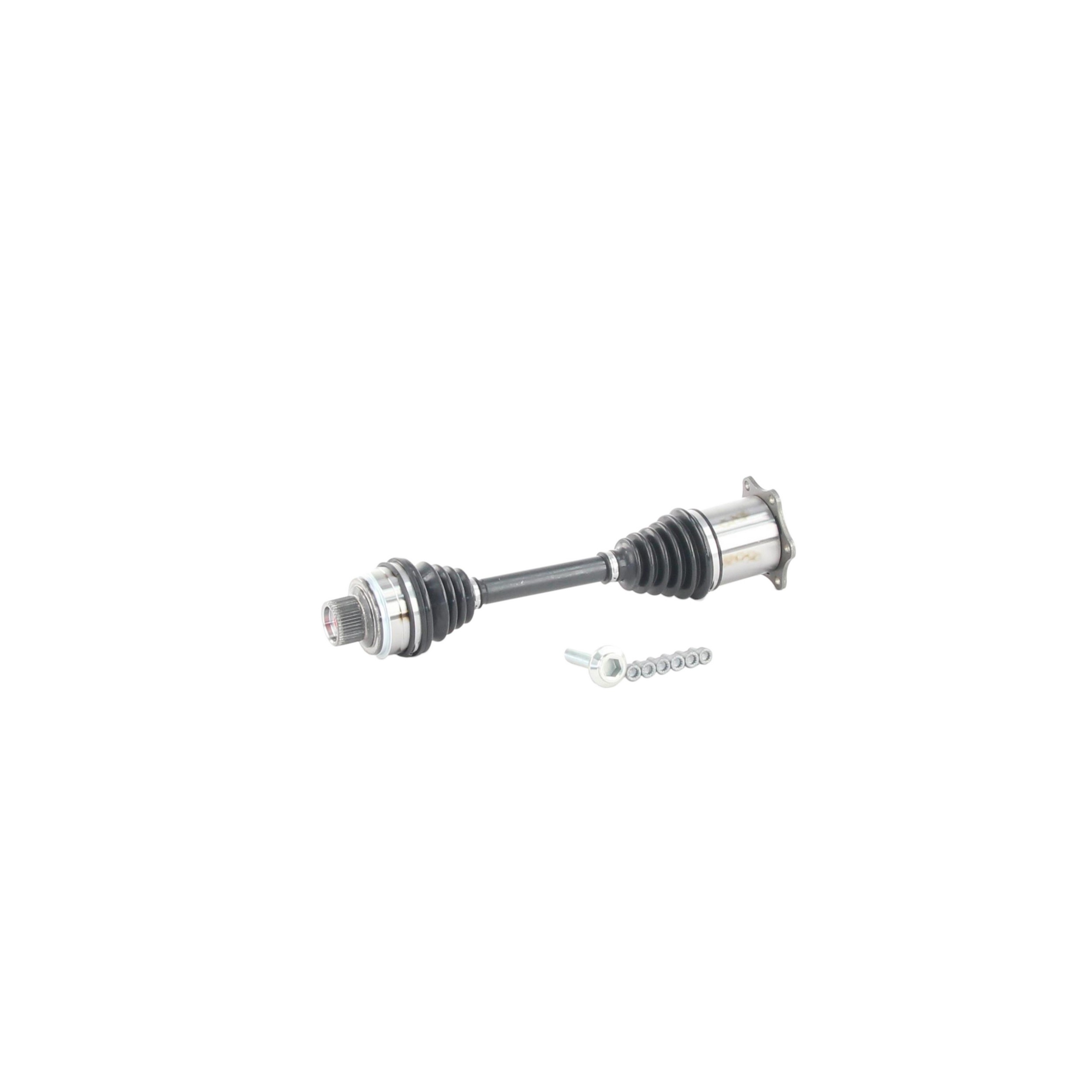

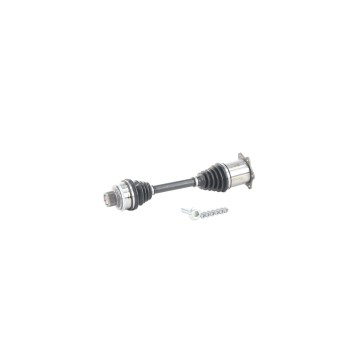

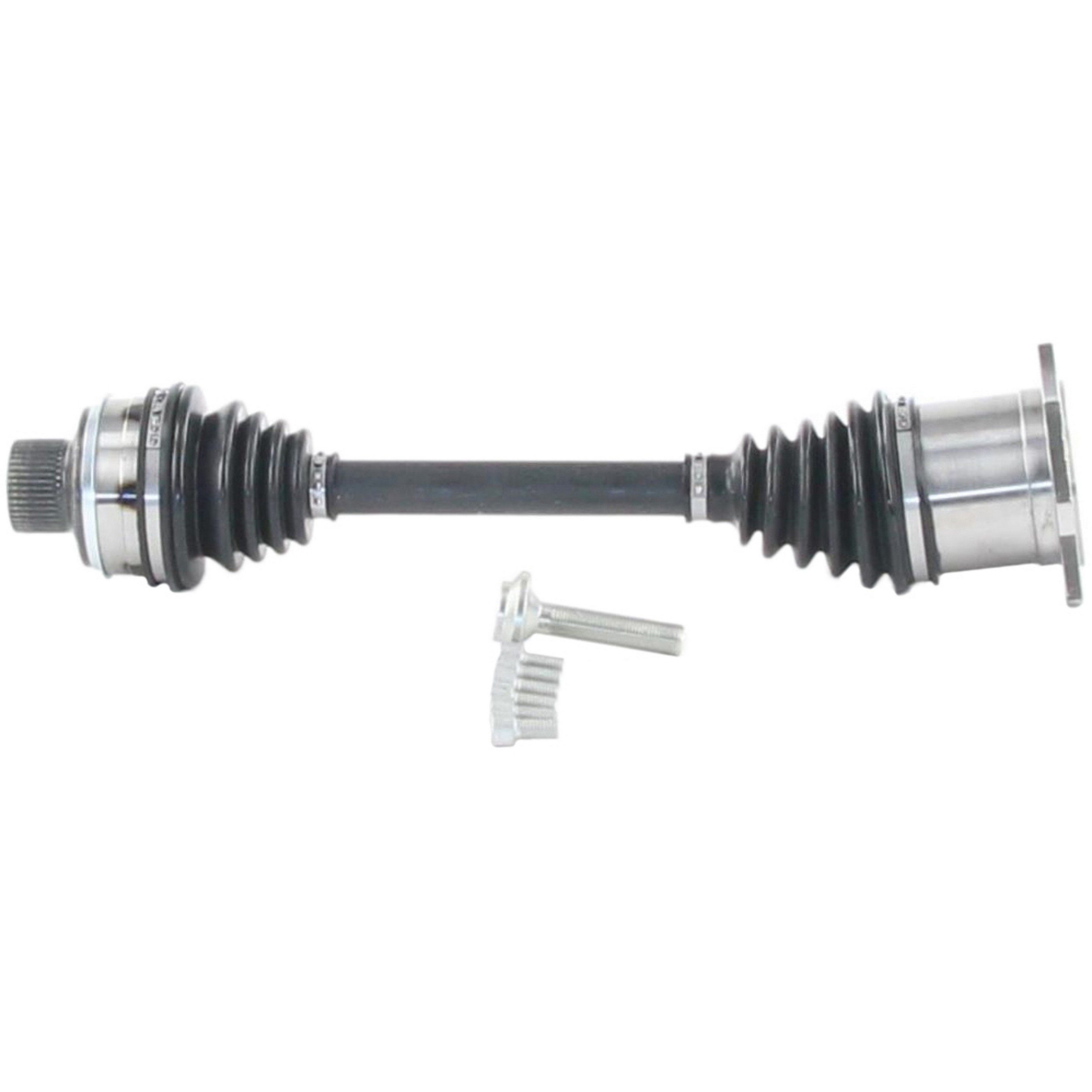

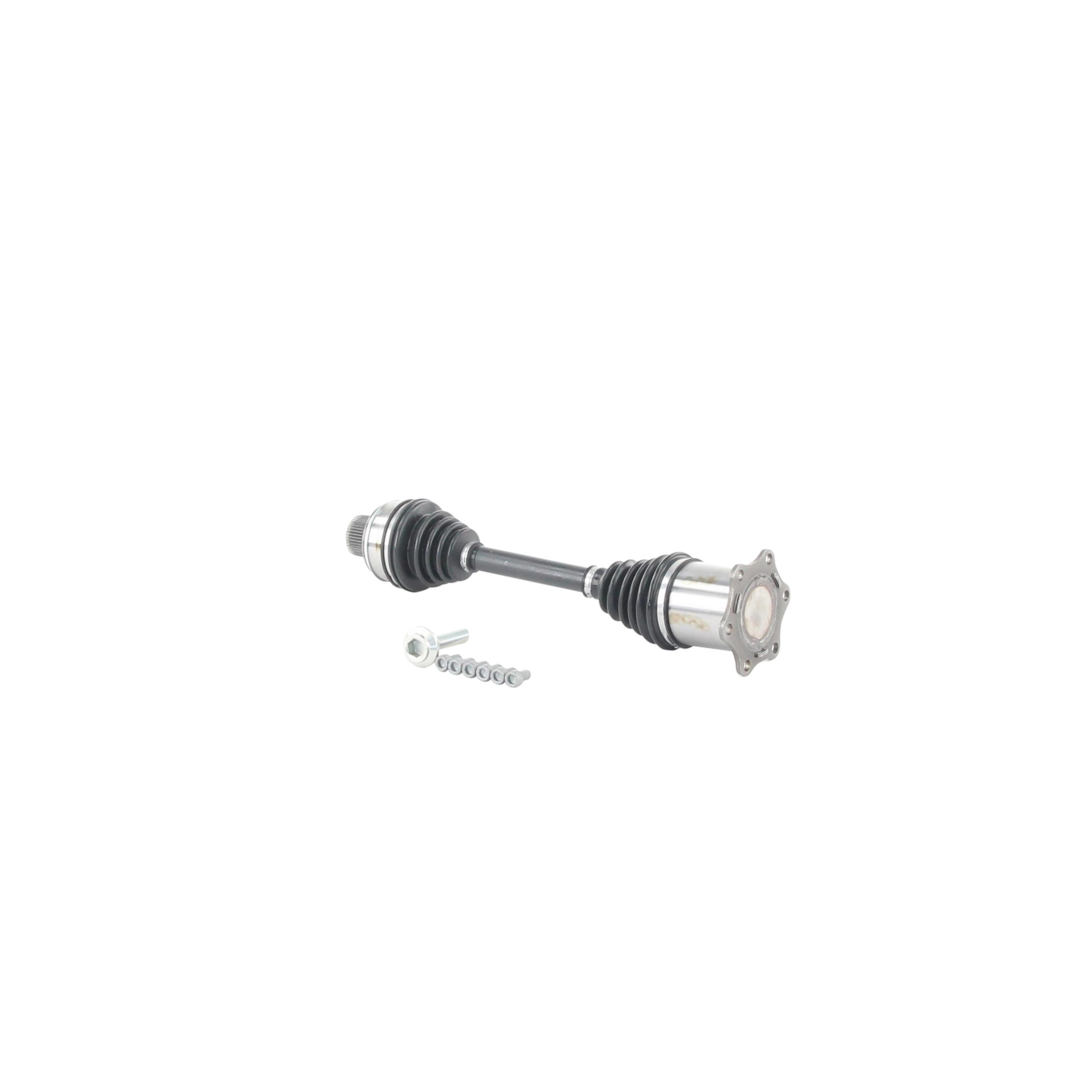

Surtrak® AD-8168 CV Axle Shaft

AAR CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

ABS Ring Tooth Count	-	0
ABS Tone Ring Included	-	No
Axle Bolt Hex Size (mm)	-	19
Axle Bolt Length (mm)	-	86
Axle Bolt Thread Size	-	M16x1.5
Axle Nut Included	-	No
Grade Type	-	Premium
Inboard Bolt Head Size (in)	-	.33
Inboard Bolt Head Size (mm)	-	9
Inboard Bolt Head Type	-	Allen
Inboard Bolt Length (in)	-	1.18
Inboard Bolt Length (mm)	-	30
Inboard Bolt Thread Size	-	M10x1.5
Inboard Joint Boot Material	-	Neoprene
Inboard Joint Type	-	Flange
Inboard Shaft Connection Style	-	Flange
Number Of Bolt Holes	-	1
Number Of Inboard Joint Bolt Holes	-	6
Number Of Inboard Shaft Bolts	-	6
Number Of Inboard Splines	-	0
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Shaft Bolts	-	1
Number Of Outboard Splines	-	42
Outboard Joint Boot Material	-	Neoprene
Outboard Joint Type	-	Audi style spline bolt
Outboard Shaft Connection Style	-	Spline

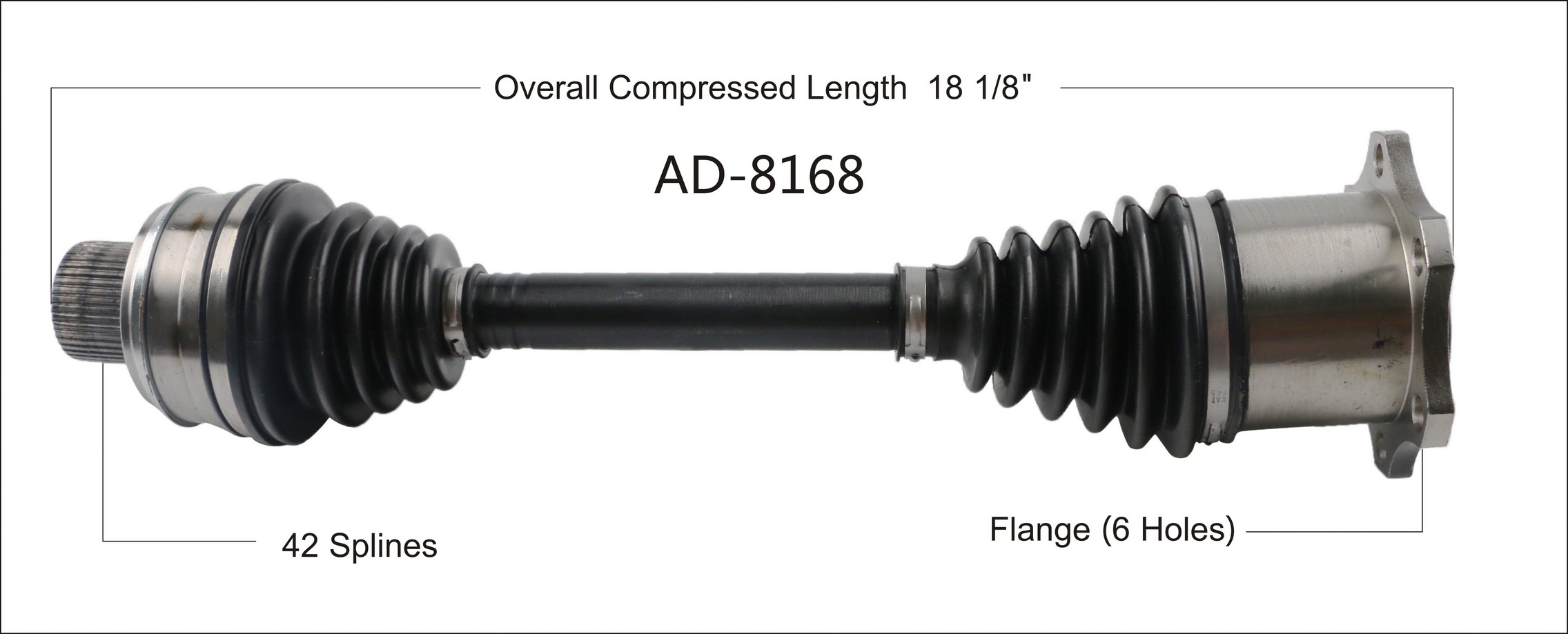

Overall Compressed Length (in)	-	18.11
Overall Compressed Length (mm)	-	460
