Name: Surtrak AD-8128 CV Axle Shaft
Brand: Surtrak
SKU: SAAD8128
Price: 85.81 USD
Availability: InStock

CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$85.81 ~~$95.34~~ 10% Off

Product Description

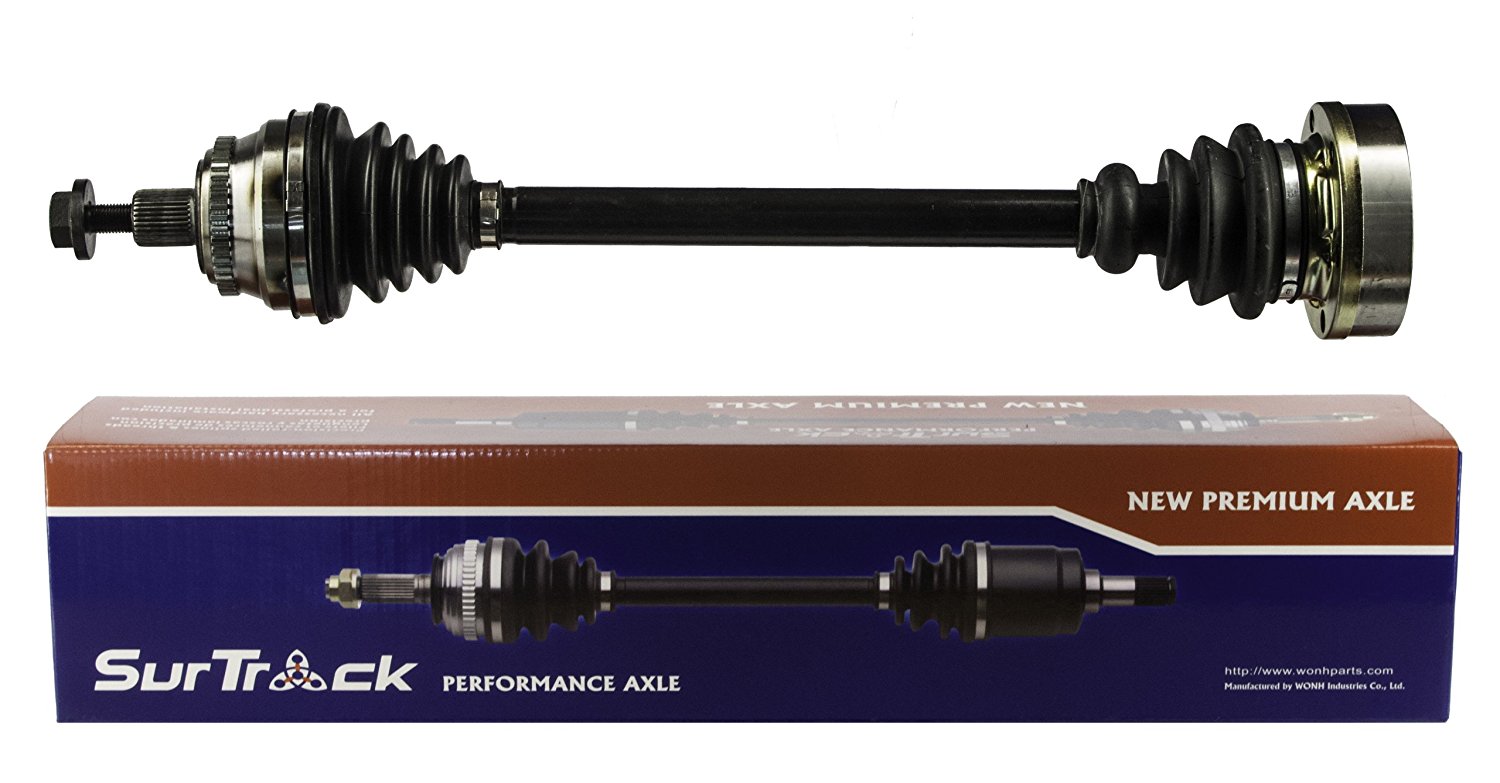

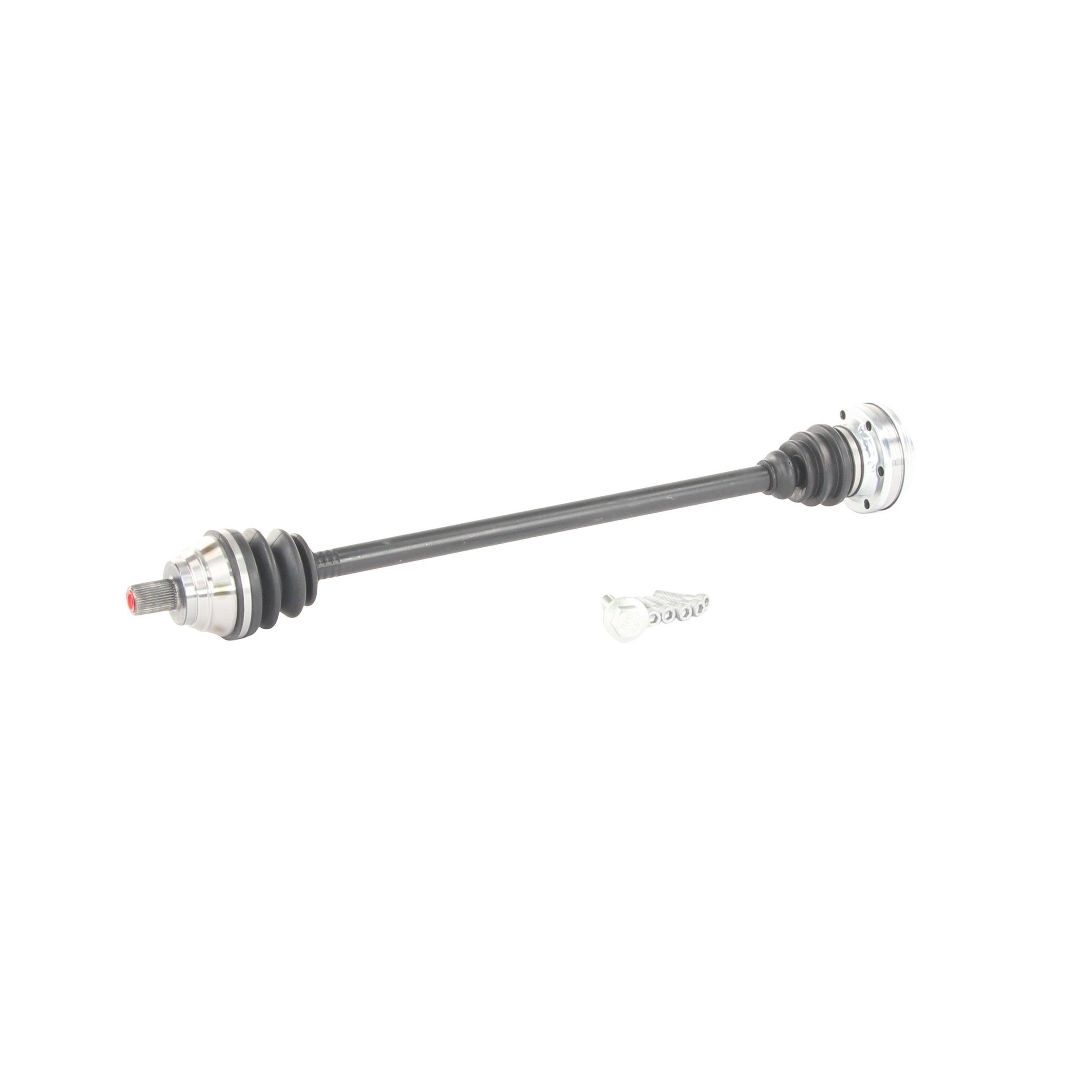

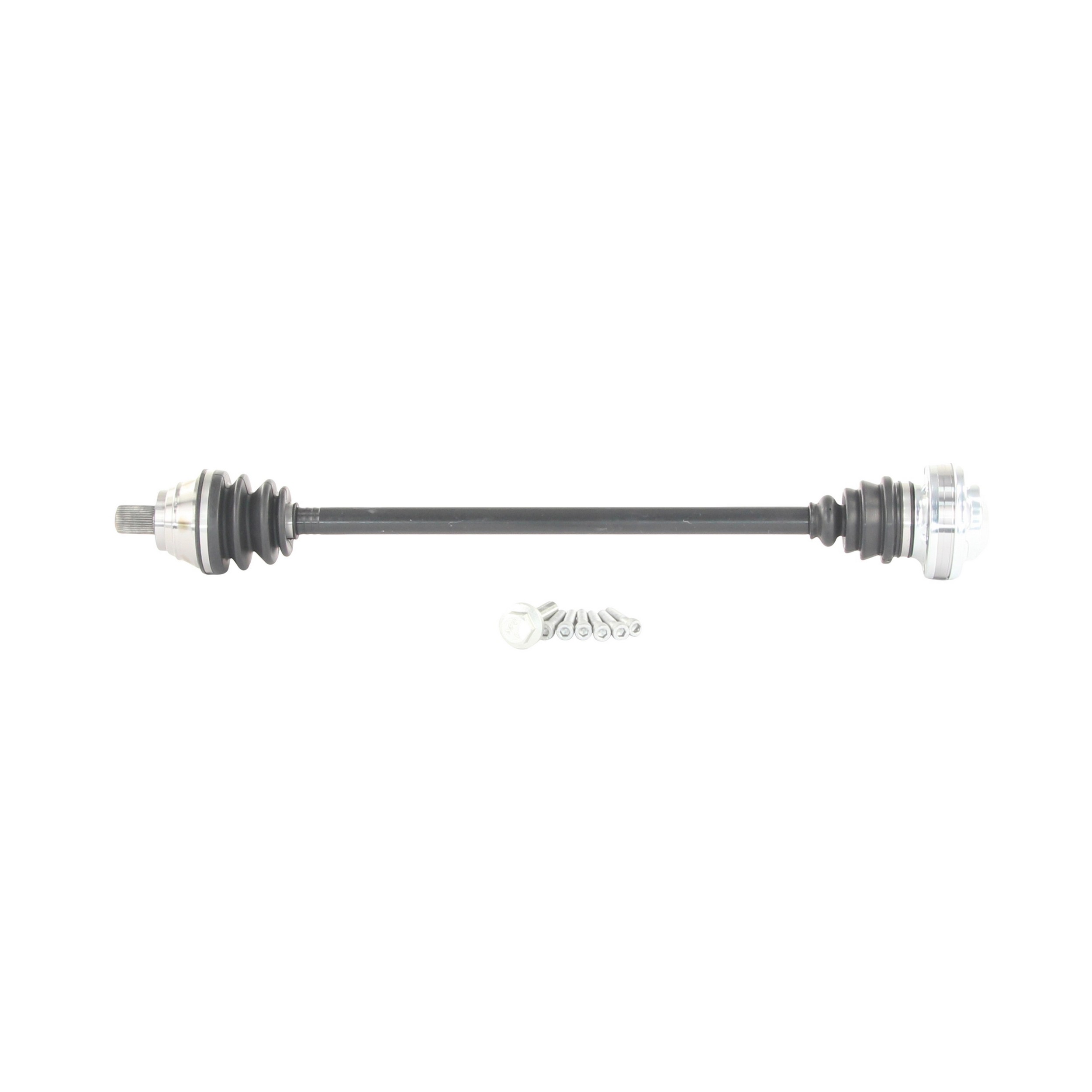

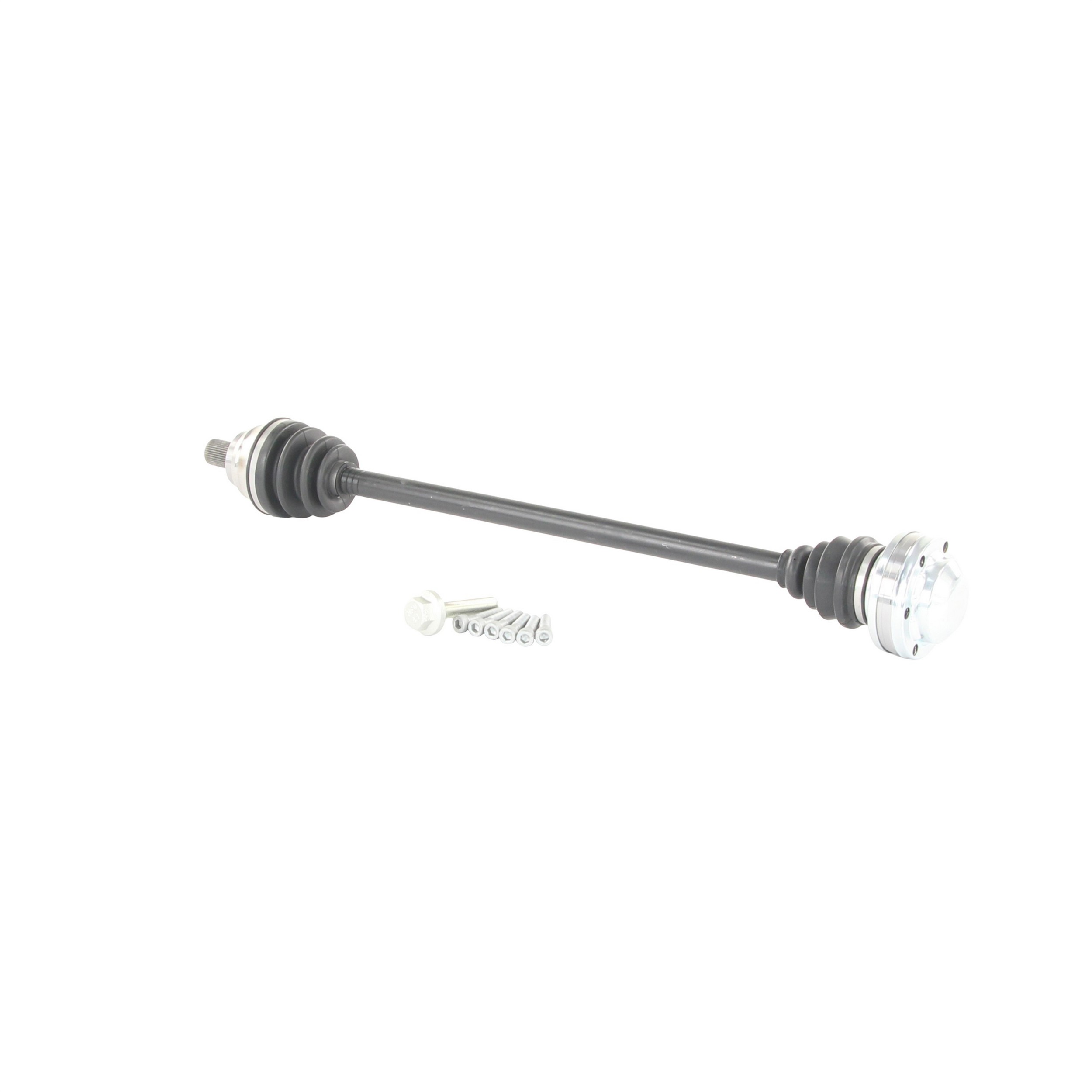

Surtrak® AD-8128 CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

CV Axle Shaft

ABS Ring Tooth Count	-	0
ABS Tone Ring Included	-	No
Axle Bolt Hex Size (mm)	-	27
Axle Bolt Length (mm)	-	97
Axle Bolt Thread Size	-	M16x1.5
Axle Nut Included	-	No
Grade Type	-	Premium
Inboard Bolt Head Size (in)	-	.33
Inboard Bolt Head Size (mm)	-	8
Inboard Bolt Head Type	-	Allen
Inboard Bolt Length (in)	-	2.17
Inboard Bolt Length (mm)	-	55
Inboard Bolt Thread Size	-	M10x1.5
Inboard Joint Boot Material	-	Neoprene
Inboard Joint Type	-	Bolt-on
Inboard Shaft Connection Style	-	Bolt-on
Number Of Bolt Holes	-	1
Number Of Inboard Joint Bolt Holes	-	6
Number Of Inboard Shaft Bolts	-	6
Number Of Inboard Splines	-	0
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Shaft Bolts	-	0
Number Of Outboard Splines	-	1
Outboard Bolt Head Size (in)	-	1.41
Outboard Bolt Head Size (mm)	-	36
Outboard Joint Boot Material	-	Neoprene
Outboard Joint Type	-	Audi style spline bolt
Outboard Shaft Connection Style	-	Audi style spline bolt
Overall Compressed Length (in)	-	30.93
Overall Compressed Length (mm)	-	786
