Drive Axle Shaft
Manufacturer’s Warranty : 2 Year Limited Warranty
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$84.14 $93.49
10% Off
Only 2 left in stock - order soon.
SKU | QR20226052 |
---|---|
Brand | Dana Spicer Chassis® |
Part Name | Drive Axle Shaft |
Part | # 2022605-2 |
UPC | # 00023913243616 |
Quantity Per Vehicle | 1 |
Pack of | 1 |
Condition | New |

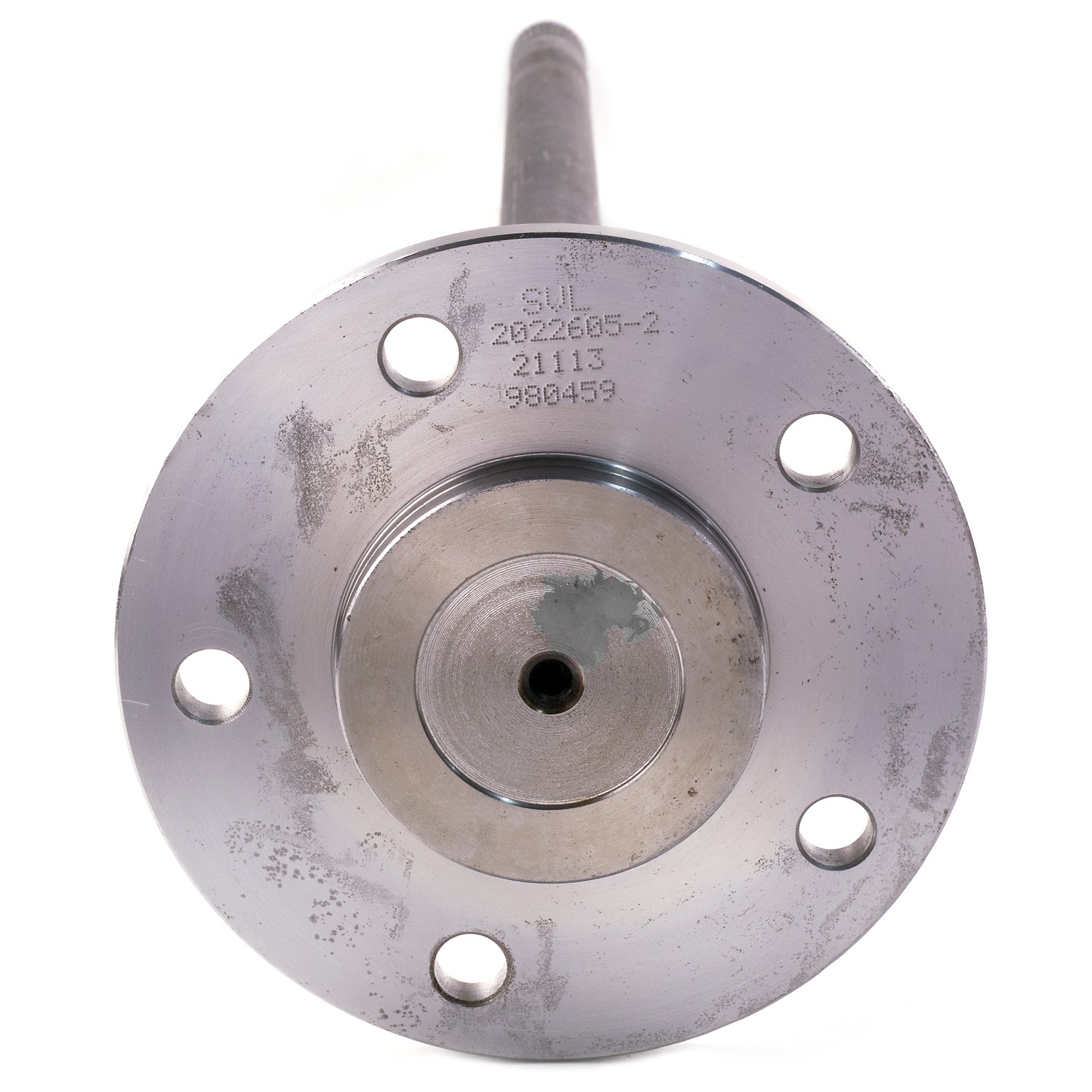

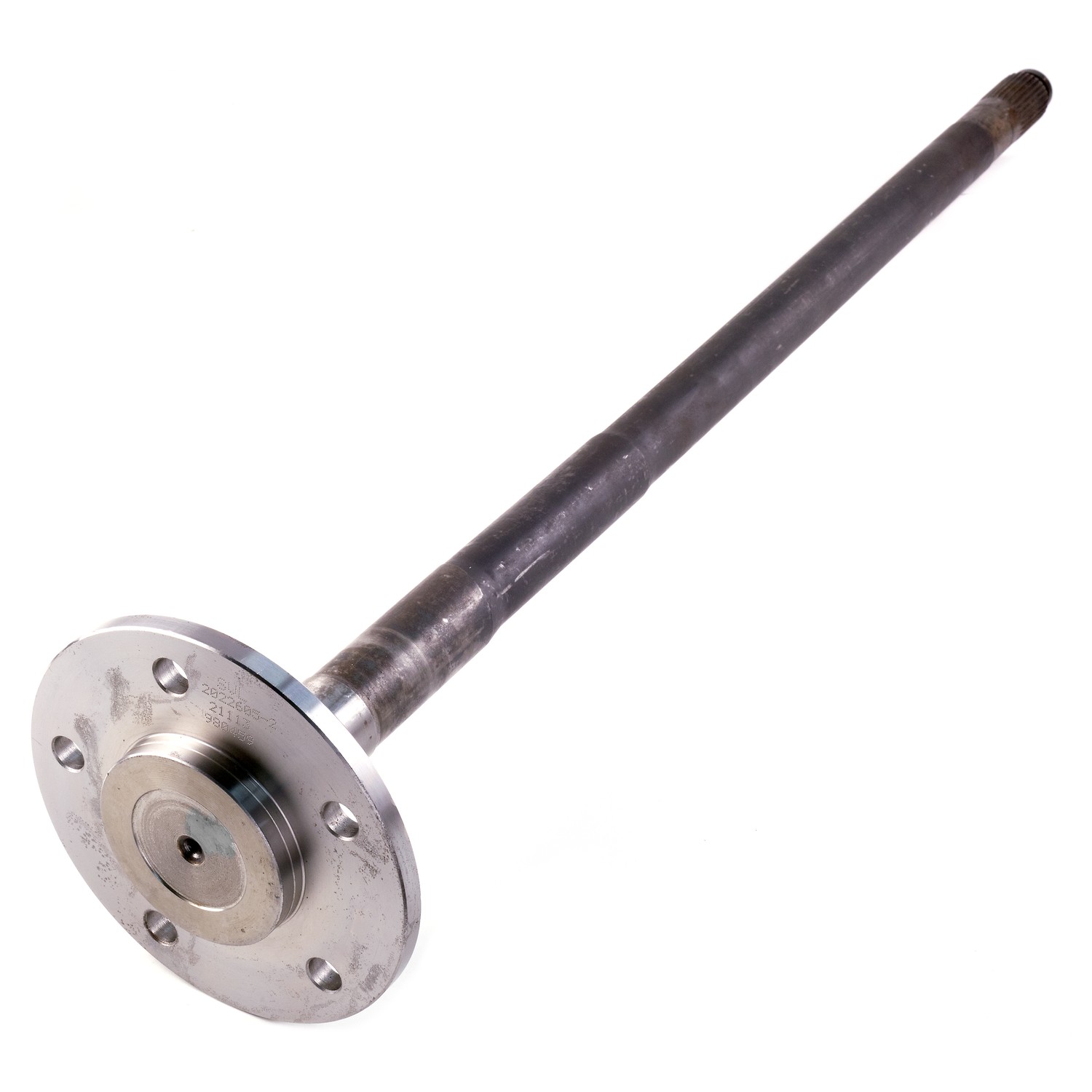

Axle Shaft, SVL
Quality replacement axle shafts for the Automotive Aftermarket. Backed by Dana. Manufactured for a wide range of automotive applications, including hard-to-find models. Trust these products to deliver strength and durability, as well as a blend of coverage.
Axle Model | - | Ford 8.8 | |
---|---|---|---|
Material | - | Steel | |
ABS/Non-ABS | - | Non-abs | |
Length (IN) | - | 33.180 | |
Location | - | Lh | |
Spline Count | - | 31 inboard | |
Axle Spline Count | - | 31 inboard | |
Axle Cover Bolt Hole Qty | - | 10 | |
Axle Length (In) | - | 33.180 | |
Bearing Pilot Diameter (In) | - | 1.618 | |
Bolt Pattern | - | 5 x 5.50 | |
Brake Pilot Diameter (In) | - | 3.441 | |
Includes Tone | - | N | |
Wheel Stud Hole Diameter (In) | - | 0.600 | |
Cover Bolt Quantity | - | 10 | |
Axle Type | - | Complete assembly | |
Quantity | - | 1 | |
ABS Sensor Ring Included | - | N | |
ABS Sensor Ring Installed | - | N | |
Axle Shaft Included | - | Y | |
Bearing Included | - | N | |
Full-Floating Or Semi-Floating | - | Semi-floating | |
Inner Axle Included | - | Y | |
Number Of Wheel Lugs | - | 5 | |
Outer Axle Included | - | Y | |
Retainer Ring Included | - | N | |
Seal Included | - | N | |
Seal Kit Included | - | N | |
U-Joint Included | - | N | |
Wheel Bearing Included | - | N | |
Wheel Bolt Prep Kit Included | - | N | |
Wheel Nuts Included | - | N | |
Wheel Studs Included | - | N | |
Axle Length (Mm) | - | 842.772 | |
Show All |
Ford - 1983-96 Bronco , 1983 F-100 , 1983-96 F-150 , 1984-86 Ranger
