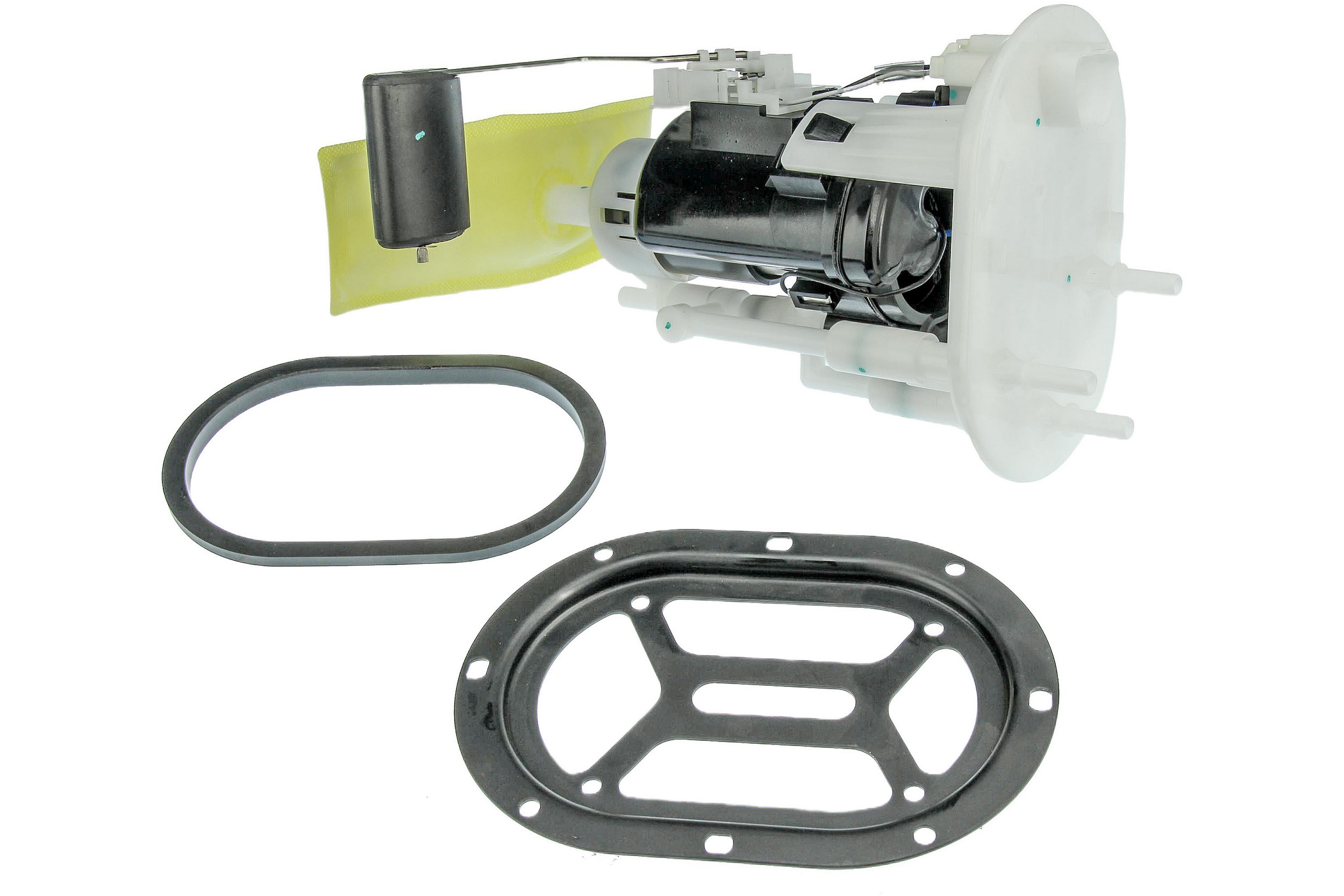

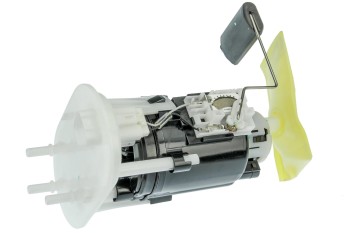

URO® HY0516568 Fuel Pump Module Assembly
Manufacturer #HY0516568
URO® HY0516568 Fuel Pump Module Assembly
Manufacturer #HY0516568
$102.98
$114.42
Save $11.44 (10%)
Only 1 left in stock – order soon
Get it between Wed, Sep 03 - Fri, Sep 05, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFree & Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | URHY0516568 |
|---|---|
| Brand | URO® |
| Part Name | Fuel Pump Module Assembly |
| Part | # HY0516568 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
| Manufacturer’s Warranty | 24 Month / Unlimited Mile Limited |
-
Hyundai
- Fuel Pump Assembly
- Guaranteed fitment
- Efficient impeller design maximizes fuel flow while minimizing current draw
- Precision armature bearings for quiet operation and reduced vibration
- Low-resistance motor brushes for durability and efficiency
- Durable high-quality housing materials
- Factory tested for proper operation
- 24 Month Unlimited Mileage Warranty
- Autotecnica offers high-quality aftermarket parts for a wide variety of Asian and North American passenger cars and trucks, include braking, cooling, driveline, electrical, engine, fuel, HVAC, steering, and suspension categories. Manufactured in strict accordance with ISO/TS 16949 QMS specifications and covered by an impressive two-year, unlimited mileage warranty, Autotecnica is the smart choice.Whether you're a DIY enthusiast or professional technician in need of replacement parts that meet OEM specifications, Autotecnica is an excellent alternative to expensive “Genuine” components.
| Connector Color | White |
|---|---|
| Connector Shape | Triangular |
| Gasket Or Seal Material | Nbr |
| Housing Material | Pom |
| Inlet Fitting Thread Size | Na |
| Inlet Quantity | 2 |
| Inlet Type | Hose fitting |
| Outlet Fitting Thread Size | Na |
| Outlet Quantity | 1 |
| Outlet Type | Hose fitting |
| Pump Design | In tank |

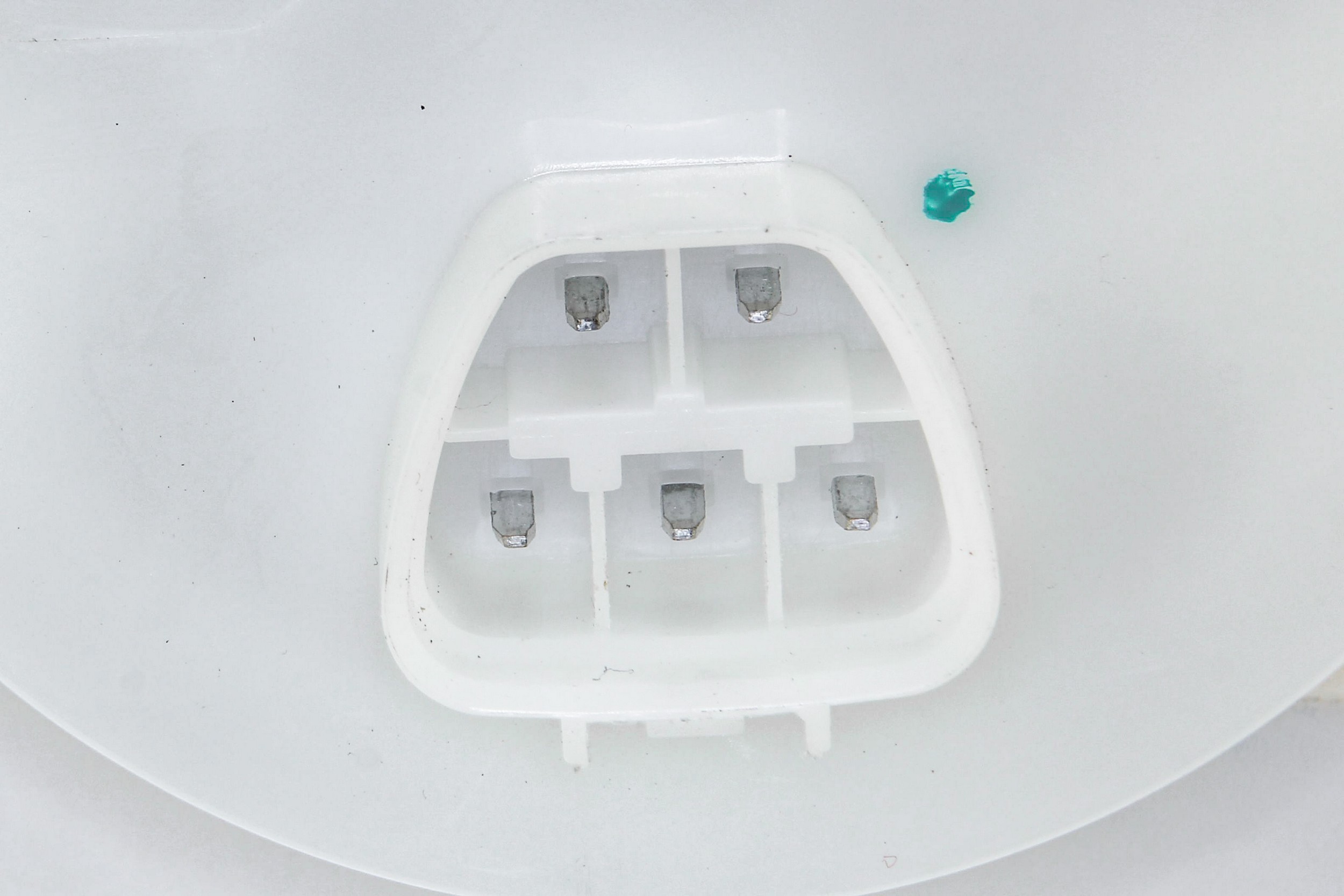

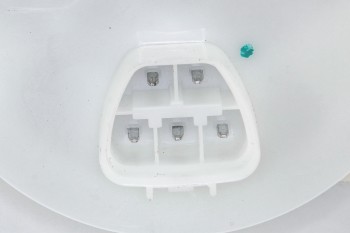

| Terminal Quantity | 5 |
| Wire Quantity | 0 |
| Average Current Draw (68) | 5.7 |
| Maximum Pressure (PS) | Na |
| Minimum Pressure (PS) | Na |
| Resistance Ohms Empty (82) | 121 |
| Resistance Ohms Full (82) | 4.3 |
| Wire Gauge Measurement (GU) | Na |
| Average Flow Rating (GPH) | 35.6 |
| Height (MM) | 206 |
| Housing Length (MM) | 150 |
| Housing Width (MM) | 95 |
| Inlet Outside Diameter (MM) | 7.8 |
| Inlet Thread Diameter (MM) | Na |
| Length (MM) | 150 |
| Maximum Flow Rating (GPH) | 40 |
| Minimum Flow Rating (GPH) | 33 |
| Outlet Outside Diameter (MM) | 7.8 |
| Outlet Thread Diameter (MM) | Na |
| Top Mount Diameter (MM) | Na |
| Voltage (2H) | 12 |
| Width (MM) | 95 |
| Wiring Harness Length (MM) | Na |
| Minimum Free Flow Rate (GPH) | Na |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| In Tank or External | In tank |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Included | Yes |
| Universal Or Specific Fit | Specific |
| Wire Harness Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Fuel Type | Gas |
| Terminal Type | Blade |
| Flow Rate (gph) (gph) | 35.6 |
| Inlet Diameter (In) (In) | 0.307 |
| Outlet Diameter (In) (In) | 0.307 |
| Electric Or Mechanical | Electric |
| Flow Restriction Pressure (psi) (psi) | Na |
| Inlet Fitting Type | Hose fitting |
| Outlet Fitting Type | Hose fitting |
| Amperage (A) (A) | 5.7 |
| Bracket Included | Yes |
| Fill Vapor Valve Included | No |

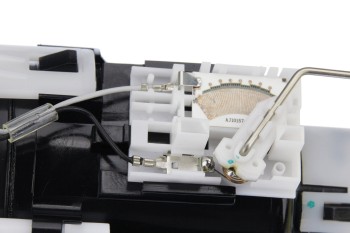

| Fuel Level Sensor Assembly Included | Yes |
| Fuel Level Vent Valve (FLVV) Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Static Pressure (psi) (psi) | Na |
| Hardware Included | Yes |
| In-Line Pump | No |
| Inlet Attachment Method | Hose |
| Inlet Diameter (mm) (mm) | 7.8 |
| Manufacturer | Autotecnica |
| Maximum Free Flow Rate (gph) (gph) | Na |
| Maximum Pressure (psi) (psi) | Na |
| Minimum Free Flow Rate (gph) (gph) | Na |
| Module Included | Yes |
| Number Of Connectors | 1 |
| Number Of Mounting Holes | 0 |
| OE Part/Casting Number | 31110-26755-ds |
| Operating Pressure (psi) (psi) | Na |
| Outlet Attachment Method | Hose fitting |
| Outlet Diameter (mm) (mm) | 7.8 |
| Relief Pressure (psi) (psi) | Na |
| Rheostat Range (Ohm) (Ohm) | 121.1 - 4.3 |
| Rollover Valve Included | No |
| Shut Off Pressure (psi) (psi) | Na |
| Strainer Location | External |
| Tank Seal Included | Yes |
| Thermistor Low Fuel Indicator Included | No |
| Vapor Pressure Sensor Included | No |
| Vapor Vent Line Included | No |
| Flow Rate (lph) (lph) | 136 |
| California Proposition 65 | Warning: cancer and reproductive harm - www.p65warnings.ca.gov |
