Name: Delphi TC3063 Suspension Ball Joint
Brand: Delphi
SKU: DETC3063
Price: 59.14 USD
Availability: InStock

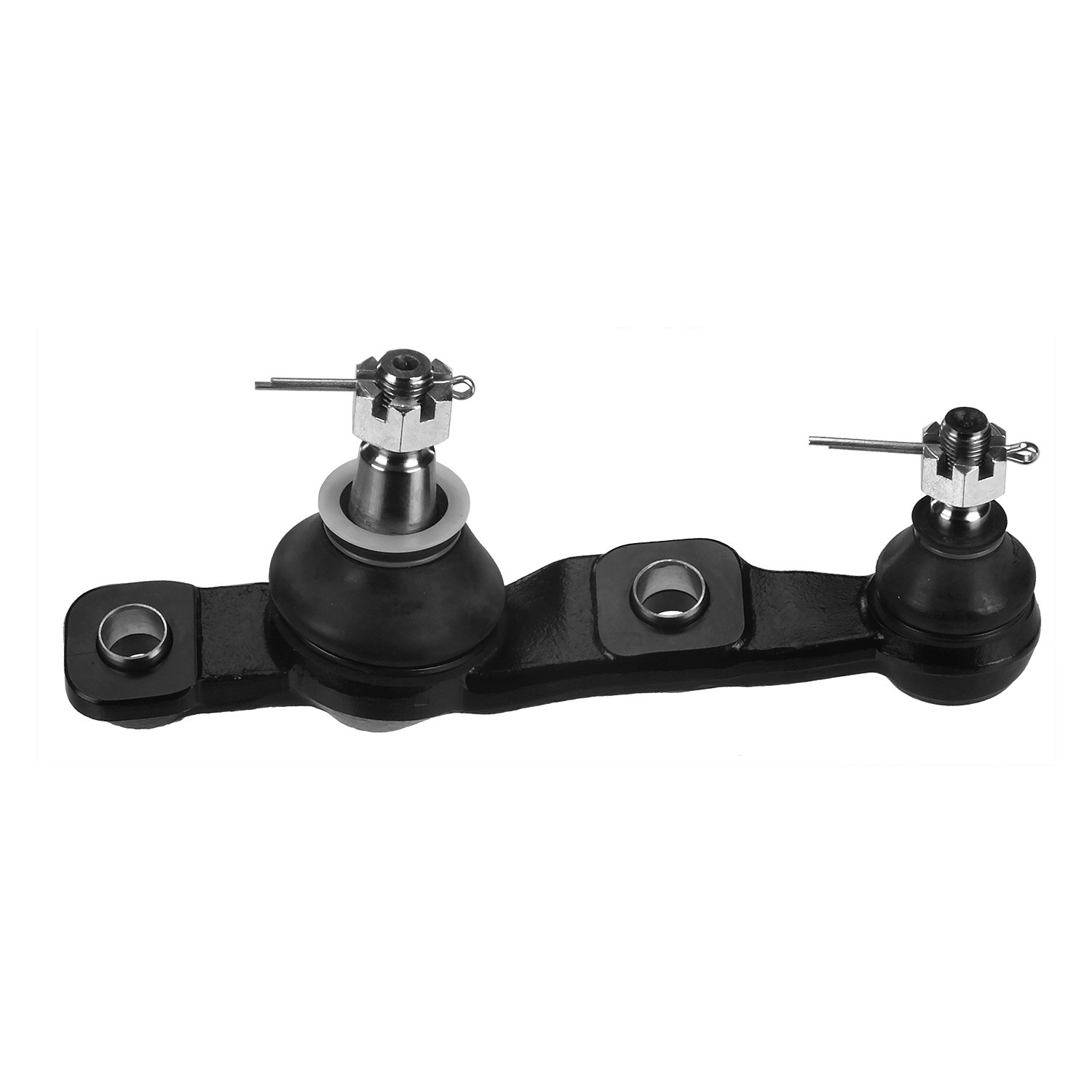

Delphi® TC3063 Suspension Ball Joint

Manufacturer #TC3063

Delphi® TC3063 Suspension Ball Joint

Manufacturer #TC3063

$59.14

~~$65.71~~

Save $6.57 (10%)

Only 8 left in stock – order soon

Get it between Thu, Aug 28 - Mon, Sep 01, 2025

This part does not fit your selected vehicle 2013 Lexus LS460

Change vehicle | View Correct Part

Free & Fast Shipping

We ship fast so you can get on the road that much faster

100% Safety

Only secure payments

SKU	DETC3063
Brand	Delphi®
Part Name	Suspension Ball Joint
Part	# TC3063
Quantity Per Vehicle	1
Pack of	1
Condition	New

+ Lexus

Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Ball Joint

Position(s)	Front right lower
California Proposition 65	Warning: this product can expose you to chemicals including carbon black, which is known to the state of california to cause cancer. for more information go to www.p65warnings.ca.gov.
Material	Steel
Maximum Outside Diameter (IN)	2.165
Maximum Outside Diameter (MM)	55.00
Length (MM)	231.00
Length (IN)	9.090
Color	Black
Stud Thread Diameter (IN)	0.49
Stud Thread Diameter (IN)	0.55
Stud Thread Diameter (MM)	12
Stud Thread Diameter (MM)	14
Castle Nut Included	Yes
Grease Fitting Included	No
Suspension Grade Type	Standard
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width (MM)	55
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Height (IN)	3.941
Height (MM)	100.10
Nuts Included	Yes
Mounting Hole Quantity	2
Adjustable	No
Greaseable	No
Stud Thread Length (IN)	0.8
Stud Thread Length (IN)	0.82
Stud Thread Length (MM)	20.5
Stud Thread Length (MM)	21
Stud Type	Threaded
Mounting Type	Bolt-in
Distance Between Mounting Holes (MM)	125.00
Dust Boot Material	Rubber
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter (IN)	0.59
Stud Tapered End 2 Diameter (IN)	0.82
Stud Tapered End 2 Diameter (MM)	15
Stud Tapered End 2 Diameter (MM)	21
Stud Tapered End 1 Diameter (IN)	0.54
Stud Tapered End 1 Diameter (IN)	0.68
Stud Tapered End 1 Diameter (MM)	13.9
Stud Tapered End 1 Diameter (MM)	17.5
Stud Thread Pitch (MM)	1.25
Stud Thread Pitch (MM)	1.5
