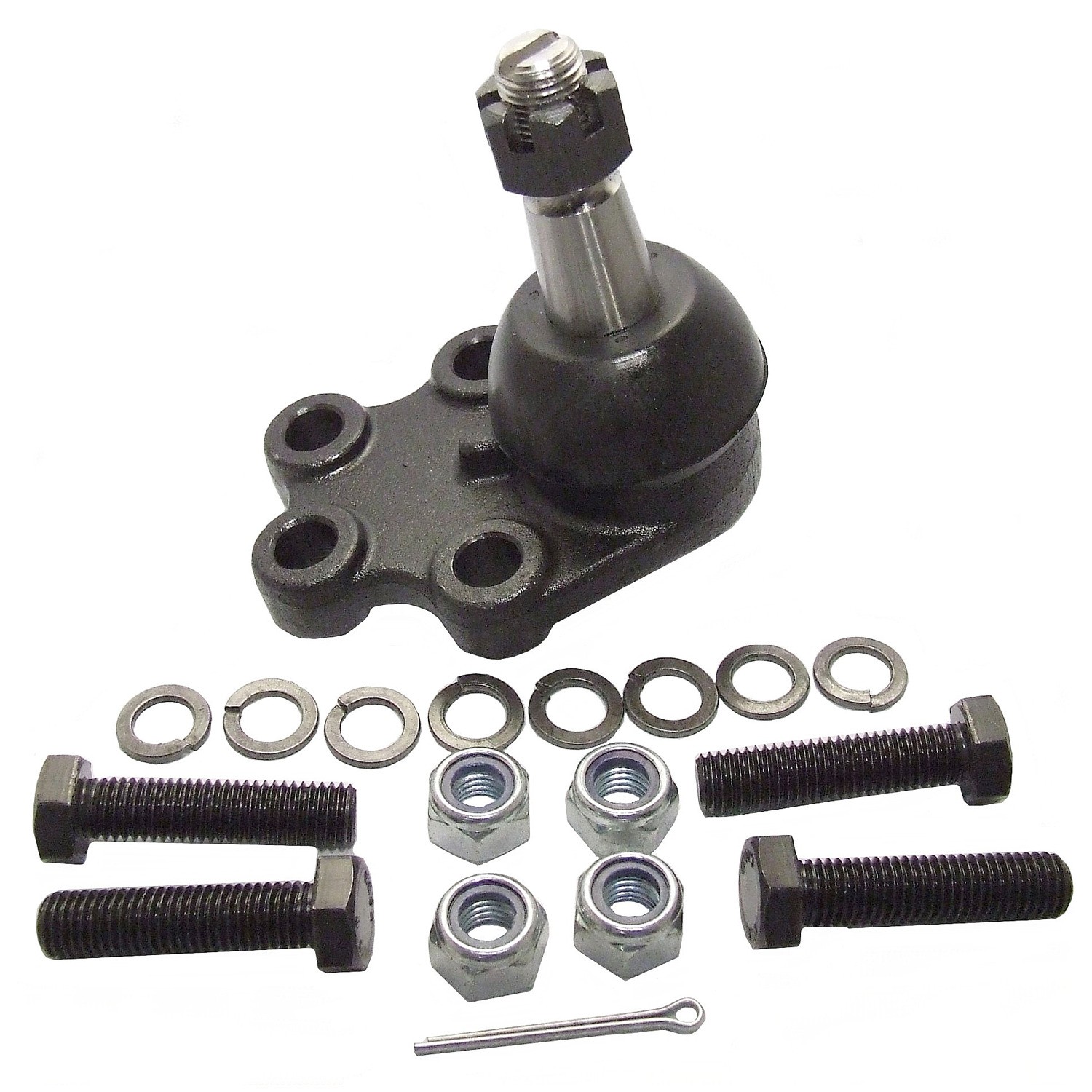

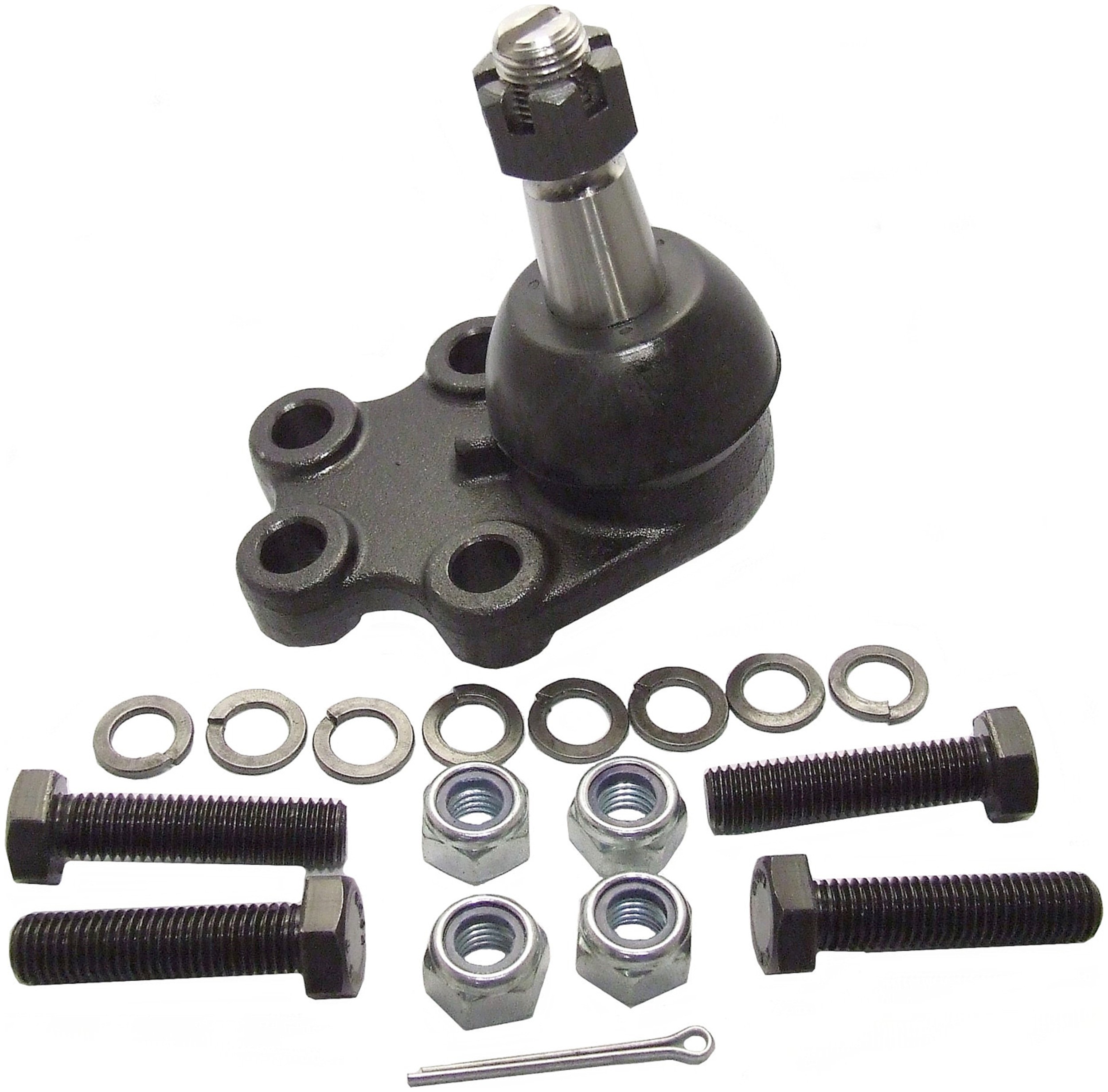

Delphi® TC1624 Suspension Ball Joint
Manufacturer #TC1624
Delphi® TC1624 Suspension Ball Joint
Manufacturer #TC1624
$57.42
$63.80
Save $6.38 (10%)
Only 13 left in stock – order soon
Get it between Thu, Aug 28 - Mon, Sep 01, 2025
Free & Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | DETC1624 |
|---|---|
| Brand | Delphi® |
| Part Name | Suspension Ball Joint |
| Part | # TC1624 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Chevrolet
-
Gmc
- Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
- Ball Joint
| California Proposition 65 | Warning: this product can expose you to chemicals including carbon black, which is known to the state of california to cause cancer. for more information go to www.p65warnings.ca.gov. |
|---|---|
| Position(s) | Front lower |
| Material | Ball material - alloy steel sae 5140, housing material - carbon steel sae 1040 |
| Maximum Outside Diameter (IN) | 1.260 |
| Maximum Outside Diameter (MM) | 32.00 |
| Color | Gray |
| Stud Thread Diameter (MM) | 16 |
| Stud Thread Diameter (IN) | 0.63 |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width (MM) | 102 |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length (IN) | 1.969 |
| Mounting Bolt Length (MM) | 50.00 |
| Washers Included | Yes |
| Height (IN) | 4.685 |
| Height (MM) | 121.00 |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length (IN) | 1.122 |
| Stud Thread Length (MM) | 28.5 |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-in |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter (MM) | 12.00 |
| Mounting Bolt Shank Diameter (IN) | 0.470 |
| Mounting Bolt Head Diameter (IN) | 0.827 |
| Mounting Bolt Head Diameter (MM) | 21.00 |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch (MM) | 1.75 |
| Mounting Bolt Thread Length (MM) | 32.00 |
| Mounting Bolt Thread Length (IN) | 1.260 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot (IN) | 0.167 |
| Stud Tapered End 2 Diameter (IN) | 0.728 |
| Stud Tapered End 2 Diameter (MM) | 18.5 |
| Stud Tapered End 1 Diameter (IN) | 0.925 |
| Stud Tapered End 1 Diameter (MM) | 23.5 |
| Stud Thread Pitch (MM) | 1.5 |
