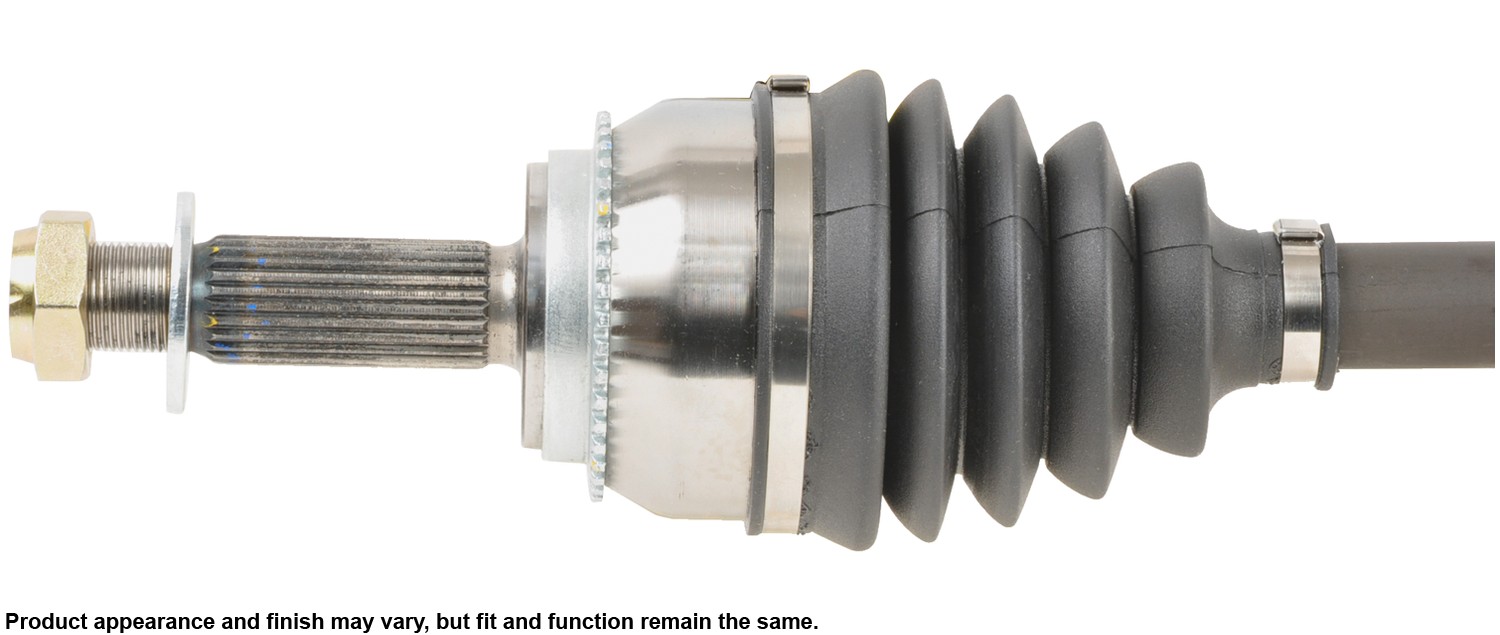

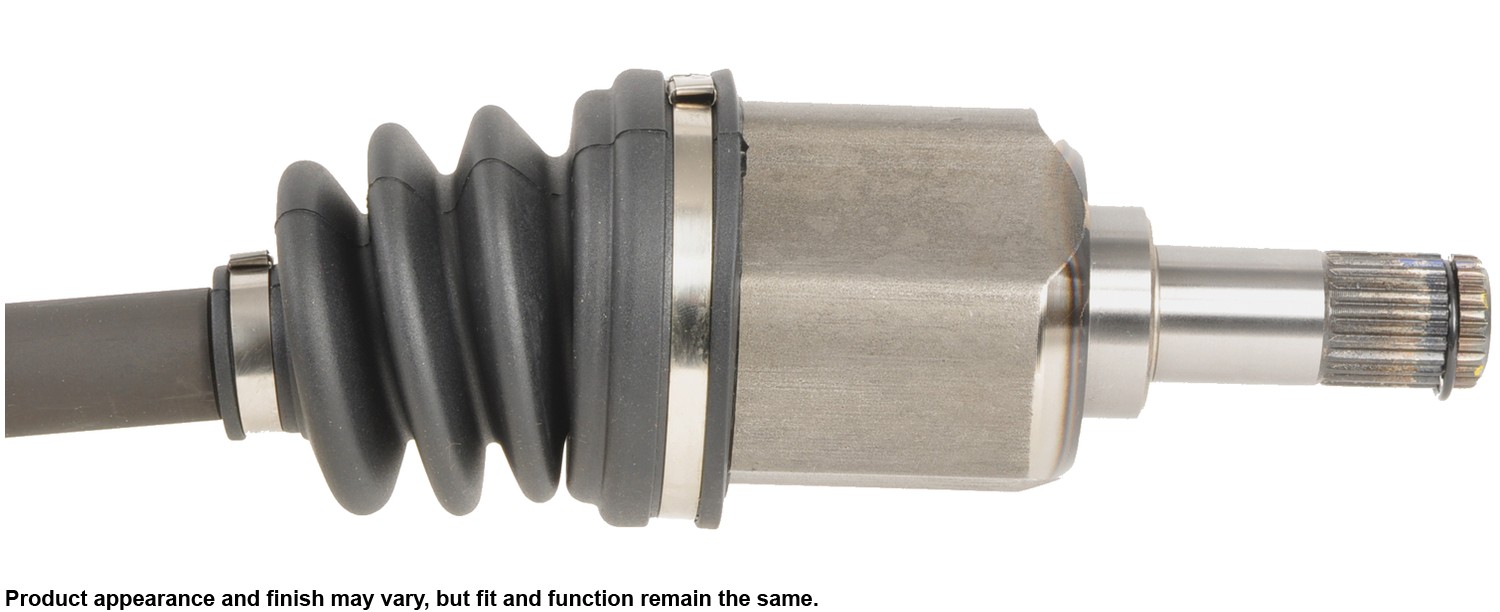

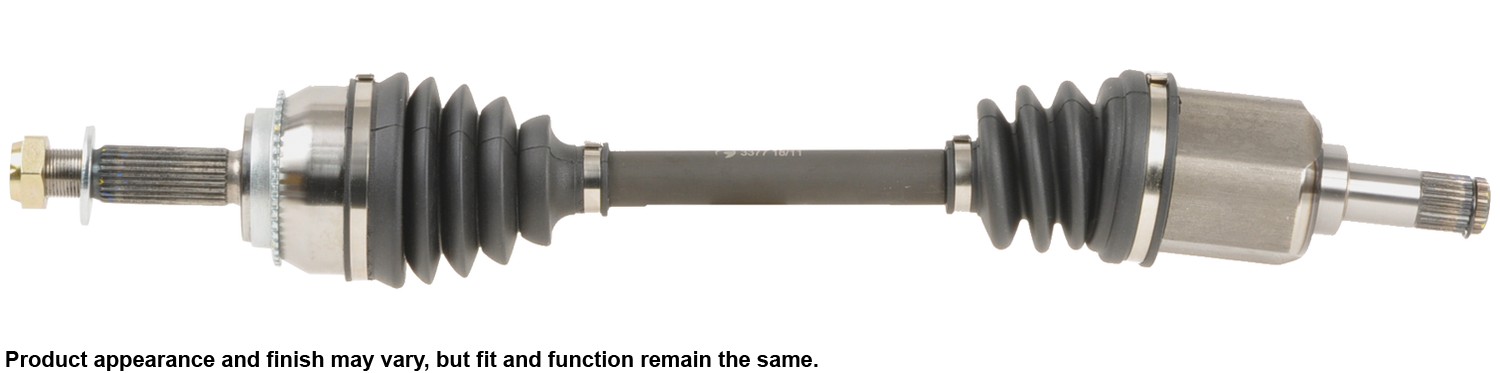

Cardone® 66-3377 CV Axle Assembly
Manufacturer #66-3377
Cardone® 66-3377 CV Axle Assembly
Manufacturer #66-3377
$85.72
$95.24
Save $9.52 (10%)
Only 4 left in stock – order soon
Get it between Tue, Sep 23 - Thu, Sep 25, 2025
Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | A1663377 |
|---|---|
| Brand | Cardone® |
| Part Name | CV Axle Assembly |
| Part | # 66-3377 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
| Manufacturer’s Warranty | Limited Lifetime |
-
Mitsubishi
- CV Axle Assembly
- CV, CV Axle, CV Drive Axle, CV Axle Shaft, Halfshaft, Constant Velocity Axle, Constant Velocity Drive Axle, Axle Shaft
- CARDONE's extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.
- A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped
- Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing
- CV Drive Axle measurements are validated after assembly to ensure a proper fit
- CV Drive Axle part numbers with an “HD” suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot.
- High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance
- Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure
- Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function
- Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles
- Threads are precision rolled to ensure proper fit when axle nut is installed
- Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life
| Package Contents | Complete axle, instruction sheet |
|---|---|
| Product Condition | New |
| Spindle Nut Included | Yes |
| Axle Nut Locking Type | Castle |
| ABS Ring Included | Yes |
| Input Shaft Connection Style | Splined |
| Input Shaft Spline Count | 25 |
| Output Shaft Connection Style | Splined |
| Output Shaft Spline Count | 25 |
| ABS Ring Tooth Count | 43 |
| E-Waste | No |
| FAQs | Always use the proper press type tool to remove the old stub shaft. never strike the outer joint stub shaft with a hammer. it will damage the unit and possibly do damage to the hub bearing assembly. |
| FAQs | Are the cv drive axle shafts balanced at the factory? |
| FAQs | Can i let the cv drive axles hang while i am working on the car? |
| FAQs | I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. what is causing this? |
| FAQs | I installed a replacement cv drive axle and now my abs light is on and won't go out. why? |
| FAQs | I removed both cv drive axles at the same time and now i am having problems reinstalling them. what can i do? |
| FAQs | Is it ok to use an impact hammer to install the retaining nut? |
| FAQs | Never allow the cv drive axles to hang unsupported. this can lead to axle separation and damage to the inner joint. |
| FAQs | Never use an impact wrench to install the retaining nut on the cv drive axle. always use a torque wrench and torque the nut to manufacture's specifications. |
| FAQs | No! a prevailing torque lock nut should never be reused. always discard the old nut and install a new one. |
| FAQs | Shafts are inspected 100% for run out to prevent vibrations. only shafts that meet the specifications for run out are utilized in the remanufacturing of a cv drive axle assembly. |
| FAQs | The cv drive axle outboard joint stub shaft is stuck in the hub assembly. what's the best way to remove it? |
| FAQs | The most likely cause is a broken bearing cage due to excessive torque load. this is typically an outboard joint problem. |
| FAQs | The most likely cause is a defective or worn outer cv drive axle joint. it may be time to get it replaced. |
| FAQs | The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the cv drive axle and causing the inner joint to bind or hang up. |
| FAQs | The most likely problem is the outer cv drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint. |
| FAQs | The old cv drive axle has a locking style (prevailing torque) nut. should i reuse it? |
| FAQs | The transaxle gear alignment has been lost. on some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. always remove and install one cv drive axle at a time. |
| FAQs | The wheels wobble when i make a turn. what's the problem? |
| FAQs | When i cut the wheel hard and step on the gas, i hear loud clicking and snapping. what's making that noise? |
| FAQs | When i replace the cv drive axles, should i reuse the old seals? |
| FAQs | When i step on the gas, i hear a loud thump and feel a bad vibration. what's wrong? |
| FAQs | When replacing cv drive axle assemblies, always install new transaxle seals to avoid leaking. |
| FAQs | When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the abs module and setting the light on. |
| Features and Benefits | A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped |
| Features and Benefits | Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing |
| Features and Benefits | Cv drive axle measurements are validated after assembly to ensure a proper fit |
| Features and Benefits | Cv drive axle part numbers with an “hd” suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot. |
| Features and Benefits | High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance |
| Features and Benefits | Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure |
| Features and Benefits | Proprietary engineering processes ensure that all cv drive axles meet o.e. form, fit and function |
| Features and Benefits | Splines are precision rolled to ensure proper fit of cv drive axle into the mating hub and transmission, which eliminates installation hassles |
| Features and Benefits | Threads are precision rolled to ensure proper fit when axle nut is installed |
| Features and Benefits | Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life |
| Compressed Length (in) | 24.25 |
Mitsubishi Lancer 2007-02
