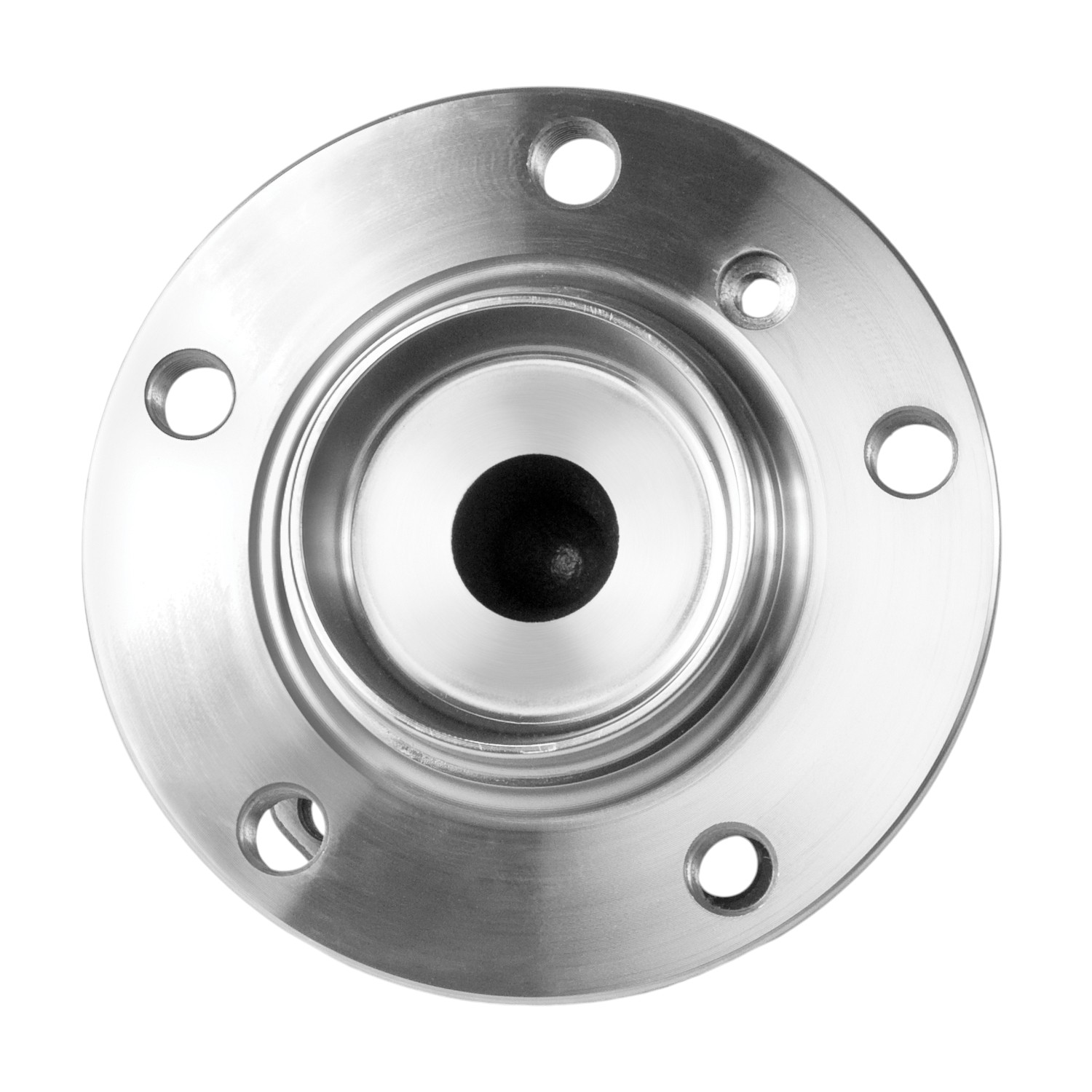

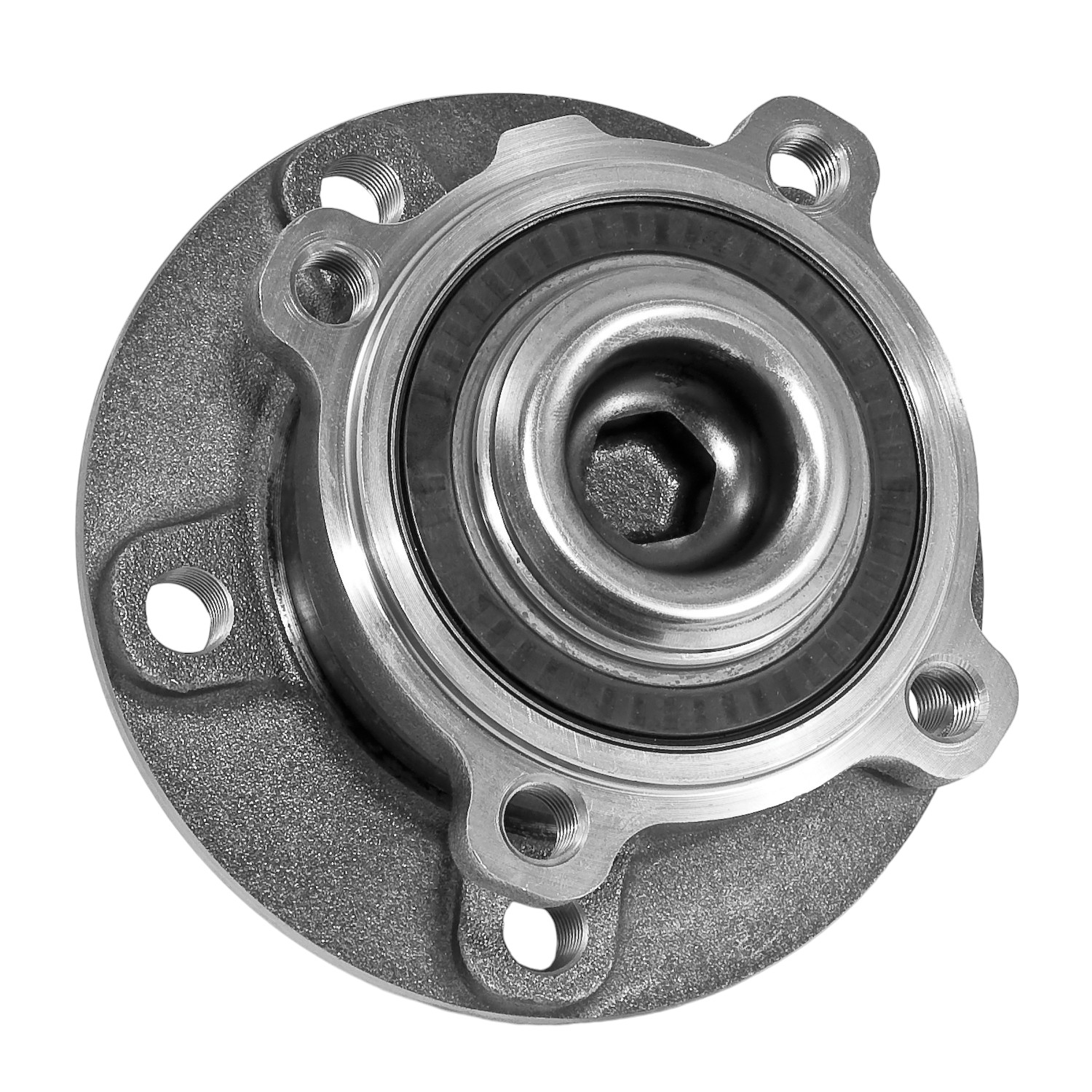

FAG® 805062C Wheel Bearing and Hub Assembly
Manufacturer #805062C
FAG® 805062C Wheel Bearing and Hub Assembly
Manufacturer #805062C
$91.08
$101.20
Save $10.12 (10%)
Only 10 left in stock – order soon
Get it between Thu, Sep 18 - Mon, Sep 22, 2025
This part does not fit your selected vehicle 1938 Buick Roadmaster Series 80
Change vehicle | View Correct PartFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | FG805062C |
|---|---|
| Brand | FAG® |
| Part Name | Wheel Bearing and Hub Assembly |
| Part | # 805062C |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
| Manufacturer’s Warranty | Limited Lifetime |
-
Bmw
- FAG Wheel Bearing - Generation 3
- This compact, lightweight, maintenance-free hub combines the cost-effectiveness and proven performance characteristics of other bearings with the convenience of an intregral mounting flange for mounting brake, disc, and wheel.

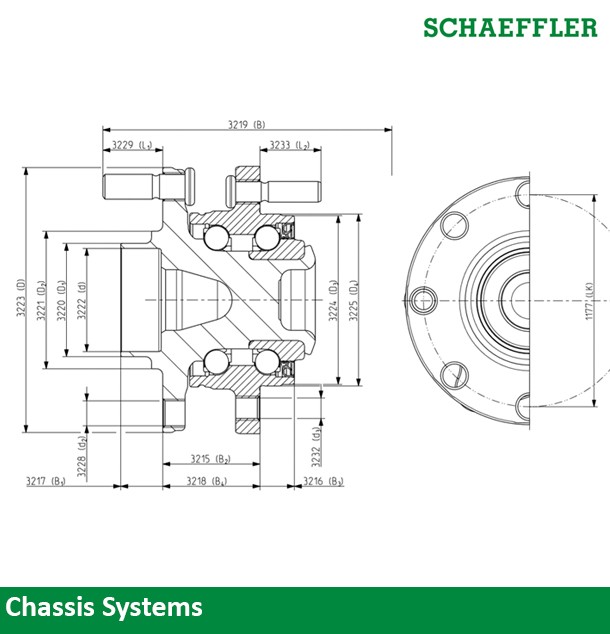

| Brake Pilot Diameter (inch) | 3.1102 |
|---|---|
| Brake Pilot Diameter (MM) | 79 |
| Inlet Mounting Hole Quantity | 4 |
| Hub Pilot Diameter (inch) | 3.5433 |
| Hub Pilot Diameter (MM) | 90 |
| Bolt Hole Diameter (inch) | 4.7244 |
| Bolt Hole Diameter (MM) | 120 |
| Width wheel flange - knuckle flange (inch) | 2.1654 |
| Width wheel flange - knuckle flange (mm) | 55 |
| Hub Bolt Hole Diameter (inch) | 4.1732 |
| Hub Bolt Hole Diameter (MM) | 106 |
| Flange Diameter (inch) | 5.7087 |
| Flange Diameter (MM) | 145 |
| ABS Tone Ring Included | [gen_1,2,3] multipol encoder (mpe) |
| Outer diameter wheel centering 1 (inch) | 2.8543 |
| Outer diameter wheel centering 1 (mm) | 72.5 |
| Wheel Stud Quantity | 5 |
